User Manual of Storage Lithium Battery

S5265

Table of Contents

Need help?

Do you have a question about the S5265 and is the answer not in the manual?

Questions and answers

Summary of Contents for AmpleNess S5265

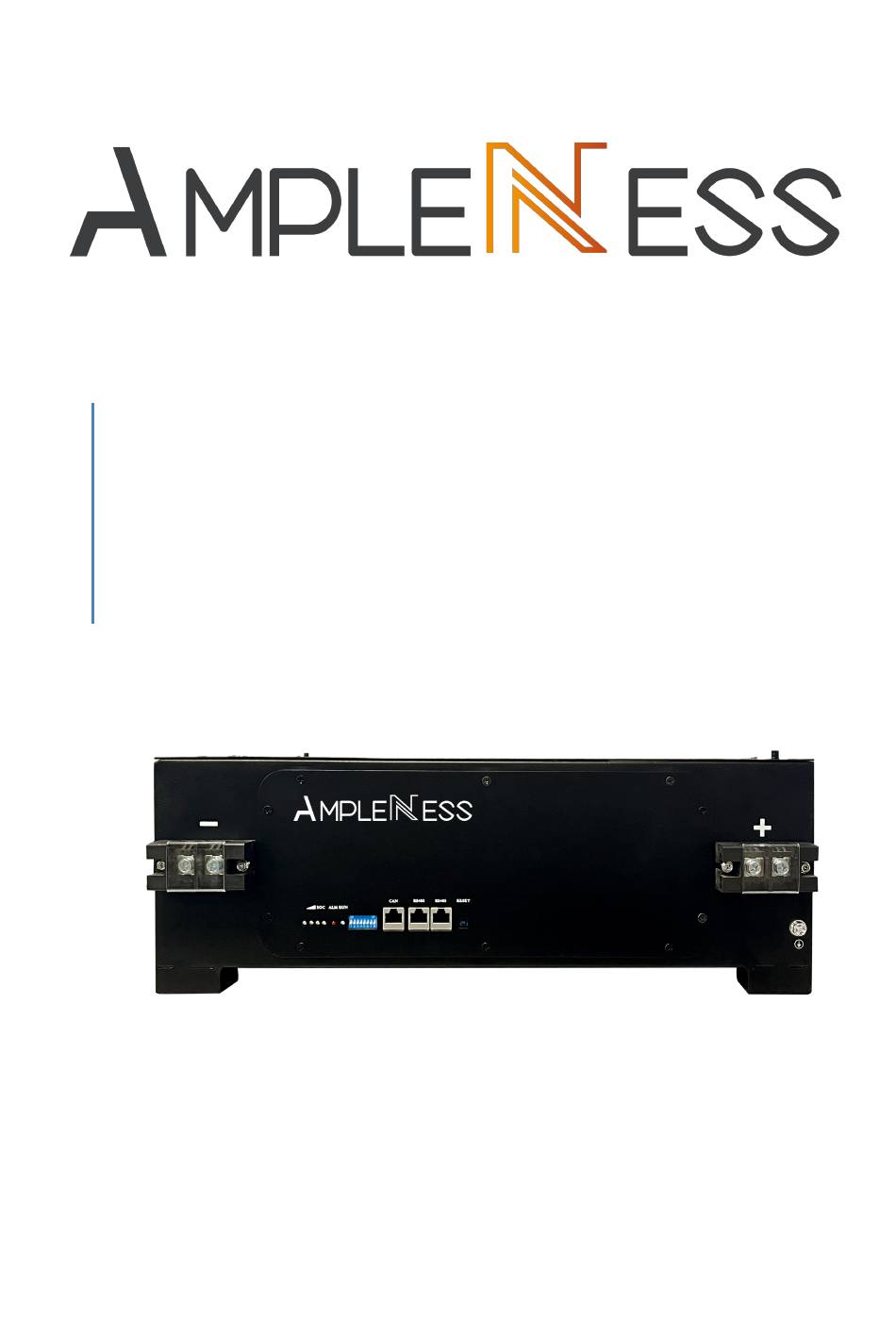

Page 1 User Manual of Storage Lithium Battery S5265...
Page 2: Table Of Contents
AMPLENESS Lithium Battery S5265 User Manual Manual Instruction The Energy Storage Batteries System provides the energy storage for PV users and backup power support for the important electrical equipment. The battery system can store excessive power generated by PV system at daytime, and can utilize the stored energy (if necessary) to...
Page 3: Security Disclaimer
2. Precautions for Safe Use We feel quite thankful that you choose AMPLENESS products. In order to enable you to use and maintain it in a better way, please kind read this user manual carefully before use.
Page 4 AMPLENESS Lithium Battery S5265 User Manual Please lift and put it down gently to avoid hurting feet or damage to product during  transportation and installation. Please keep battery away from the flammable objects and heat sources.  Please don’t drop any sundries into battery during installation. Otherwise, it may cause ...
Page 5 AMPLENESS Lithium Battery S5265 User Manual 2.7.1 Leaking batteries If the battery pack leaks electrolyte, avoid contact with the leaking liquid or gas. Electrolyte is corrosive and contact may cause skin irritation and chemical burns. If one is exposed to the leaked substance, do these actions: Inhalation: Evacuate the contaminated area, and seek medical attention immediately.
Page 6: Product Introduction
AMPLENESS Lithium Battery S5265 User Manual 3. Product Introduction AMPLENESS S5265 battery is composed of lithium iron phosphate cells in series. The built-in BMS battery management system can manage and monitor battery information, including voltage, current and temperature. In addition, the BMS can also balance the charge and discharge of the battery to extend the cycle life.
Page 7: Specification
AMPLENESS Lithium Battery S5265 User Manual 4. Specification 4.1 Battery Specification ITEM S5265 Battery Type LiFePO4 Mount Type Rack Mounted Nominal Voltage (V) 51.2 Capacity (Ah) Nominal Energy (KWh) 3.33 Operating Voltage (V) 43.2~57.6 Max Charge Current (A) Charging Current (A)
Page 8 AMPLENESS Lithium Battery S5265 User Manual 4.2 Product Size 4.3 Product Panel Description...
Page 9 AMPLENESS Lithium Battery S5265 User Manual 4.4 Battery Management System (BMS protection board) Function Function Name Status indicator Capacity display, operation status display Battery negative Battery negative power transfer Battery positive Battery positive power transfer DIP switch Set address for master and slave if parallel...
Page 10 AMPLENESS Lithium Battery S5265 User Manual 4.4.3 Temperature Protection Function Charging low/over-temperature protection Discharging low/over-temperature protection charging, system starts charging discharging, system starts discharging temperature protection and stops charging if temperature protection and stops supplying the battery temperature is over protection...
Page 11: Installation
AMPLENESS Lithium Battery S5265 User Manual 5. Installation 5.1 Installation Location Make sure that the installation location meets the following conditions: The building is designed to withstand earthquakes, and the floor is flat and level.  Far away from the sea to avoid salt water and humidity.
Page 12 AMPLENESS Lithium Battery S5265 User Manual The product includes battery module and fixed bracket. For using one battery alone, you just need to connect with an inverter by placing the product on flat ground. .In static state, adjust the expansion bolt of Foot Master casters on the mobile bottom tray to make the nylon wheel off the ground and ensure that the mobile bottom tray will not move.
Page 13 AMPLENESS Lithium Battery S5265 User Manual 5.5 Tools To install the battery pack, those following tools are probably required: Phillips screwdriver Torque wrench Cable crimper Wire clamp Voltmeter Tape measure Drill Flat-head screwdriver In order to protect operator and installer’s safety, please select and use suitable tools and ...
Page 14 AMPLENESS Lithium Battery S5265 User Manual In the process of unpacking, please pay attention to lift and put it down gently and protect its surface coating. The installing person should read technical document, check the list, confirm whether accessories are completed and intact according to Packing List at first after unpacking. If internal packages are damaged, please check it carefully and take records.
Page 15 AMPLENESS Lithium Battery S5265 User Manual 5.11 Installation and wiring 5.11.1 Device installation Please take reference of the way recommended by manual to place the product. All devices must be firm during installation. Please arrange the stacked number of devices flexibly as actual needs.
Page 16 AMPLENESS Lithium Battery S5265 User Manual 5.11.4 Cables connection A single battery: please connect the positive electrode of battery with the DC positive electrode of inverter by a red cable, and connect the negative electrode of battery with the DC negative electrode of inverter with a black cable.
Page 17 AMPLENESS Lithium Battery S5265 User Manual 5.11.6 Start-up Please confirm again whether all cables are correctly connected, firmly connected, and not  short circuit or reverse connection before starting up. Please turn all battery switch buttons to “ON” . ...
Page 18 AMPLENESS Lithium Battery S5265 User Manual SOC indicator System Operation status status Shutdown Sleep Normal Flash 1 Standby Alarm Flash 3 Flash 3 SOC capacity indication. The maximum LED Normal flashes 2 . Over-current SOC capacity indication. The maximum LED Flash 2 flashes 2 .
Page 19: Communication Settings
AMPLENESS Lithium Battery S5265 User Manual 6. Communication Settings The product is designed with communication interfaces like the RS485 and CAN, and the battery status can be easily obtained or the internal parameters can be modified through the master computer.
Page 20: Abnormal Conditions And Fault Handling
AMPLENESS Lithium Battery S5265 User Manual 7. Abnormal Conditions and Fault Handling 7.1 Fault and abnormal phenomenon handling Common Troubleshooting Phenomenon fault Under voltage protection may occur. Please charge timely. The indicators are After the mains supply is powered off for 48 h, the BMS sleeps. Press off.
Page 21: Address Select Of Master And Slave Battery(-Ies) Connection
AMPLENESS Lithium Battery S5265 User Manual Select 8. Address of Master and Slave Battery(-ies) Connection Definition of DIP switch bit1 to bit8：Bit1 to bit4 are used to set the address, and bit5 to bit8  are used to set the number of slaves.
Page 22: Operation
AMPLENESS Lithium Battery S5265 User Manual 9. Operation 9.1 Charging precautions 1) Charging current The charging current must not exceed the maximum allowable charging current specified in this specification. Charging with abnormal current will cause the system protection to start, which may affect normal use.
Page 23: Maintenance And Recycling
AMPLENESS Lithium Battery S5265 User Manual 5) It is strictly prohibited to connect AC directly, and the DC charger must be used to charge in accordance with the regulations; 6) It is strictly prohibited to use the battery by reversing the positive and negative electrodes;...
Page 24 AMPLENESS Lithium Battery S5265 User Manual 10.5 Battery Recycling About the information on proper disposal of old battery, please contact with your local recycling center or hazardous waste disposal center. Please don’t discard battery into fire as it may lead to the danger of explosion. Please take reference for your local regulations about battery disposal requirements and dispose the wasted battery properly.
Page 25: Legal Statement
AMPLENESS Lithium Battery S5265 User Manual Legal statement The copyright of the manual belongs to SUZHOU AMPLE ESS CO., LTD.. Any unit, company or individuals is not allowed to extract, copy and translate it in any way without the written permission of copyright owner. Otherwise, infringement must be investigated.
