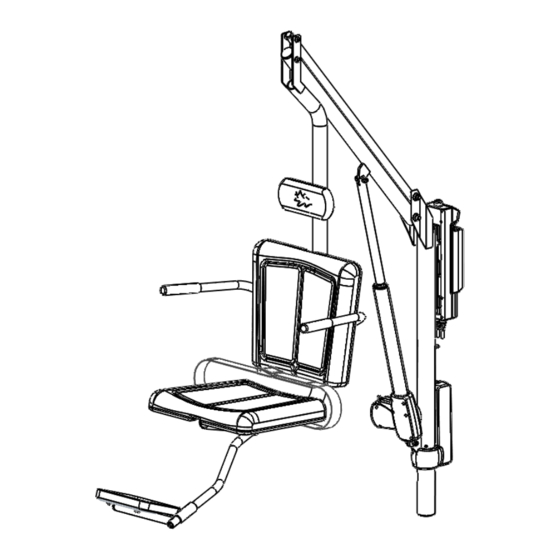

- Page 1 Motion Trek 350 Deluxe 153121-DLX 7100 Spectrum Lane ~ Missoula MT 59808 800.791.8056 ~ www.spectrumproducts.com 153121-DLX Rev D...
-
Page 2: Shipping Information
You have purchased a Spectrum Products Motion Trek 350 assisted access lift. Providing the unit is installed correctly and properly maintained, it will furnish you with many years of trouble- free use. It is important to read this entire manual prior to assembly or operation. Shipping Information: Each lift will arrive partially assembled in one box. -
Page 3: Components And Hardware
Components and Hardware: 800.791.8056 ▪ www.spectrumproducts.com... -
Page 4: Installation Overview
Installation Overview Read all instructions before attempting to assemble or install the lift. Clear Deck Space: The lift must be installed in a location that is clear from obstacles and other hazards in order to be compliant with ADA Guidelines. Clear deck space is defined by the figure to the right. - Page 5 by 10” thick anchor centered, with a minimum of four #4 bars each way centered. An engineer stamped letter can be furnished by Spectrum if requested. a. From the center of the desired anchor location, using a marking pen or chalk, mark a square of the dimensions provided by Spectrum Aquatics, or another engineer stamped footing.
-
Page 6: Assembly Instruction
Assembly Instruction The following tools will be required to complete assembly and installation of the lift: 9/16” ratchet and open-end wrench 5/8” ratchet and open end wrench 1/2” ratchet or open-end wrench 3/16” hex key (allen wrench) Lift Assembly Fully charge lift battery. Stand the mast assembly up in the anchor that is installed in the pool/spa deck. - Page 7 Attach the seat half and the seat belt to the mounting plate of the seat arm using: 2 - 5/16"-18 x 1” 2 - 5/16"-18 x ¾” 4 - 5/16" Flat washers 4 - 5/16" Lock washers Note: When attaching the seat belt use 5/16"-18 x 1" as shown below: 800.791.8056 ▪...
- Page 8 The image below shows the proper way to assemble the seat belt. Attach the other seat half to the back rest mounting plate using: 4 - 5/16"-18 x ¾” 4 - 5/16" Flat washers 4 - 5/16" Lock washers Remove hardware on headrest assembly. Fasten to seat pole as shown. Do not tighten hardware.
- Page 9 Tighten the anchor locking bolt by access through a hole one inch up from the top of the anchor on deck. The included 7/32 Allen wrench will fit a 3/8” button head internal to the mast. This internal fastener is at an angle and can be tightened down until there is no lift movement in the anchor.
- Page 10 Operator’s Guide Lift Operation WARNING! Read all operating instructions before operating the lift. Make sure that all individuals using the lift have read the instructions and have been made aware of all safety precautions. WARNING! Operate the lift exactly as described in the instructions above. Failure to do so may result in damage to the lift or personal injury.
- Page 11 Rotation (CLOCKWISE) Pressing the button causes the lift to rotate clockwise. The lift will continue to rotate in this direction as long as the button is pressed. Releasing the button at any time during rotation will stop the lift from rotating. Rotation (COUNTERCLOCKWISE) Pressing the button causes the lift to rotate counterclockwise.
- Page 12 Lowering: Pressing the down (˅) arrow causes the seat to lower. The seat will continue to lower while the button is pressed or until the lift reaches its lowest extent. If the button is released, the lift will stop moving downward. Clockwise Rotation: Pressing the right (˃) arrow causes the seat to rotate clockwise.
- Page 13 Plug the battery charger into a standard electrical outlet*. The green LED on the charger will illuminate, indicating that the charger is on. Plug the charging cable into the charging port on the battery cradle. Place battery in charging cradle. If the battery is up to the charged voltage, the LED on the charger will stay green. If the charger determines that the battery needs to be charged, the LED on the charger will change to red.
-
Page 14: Troubleshooting
5. Apply dielectric grease to the battery connections and receiver connections where the battery and receiver meet. 6. Grease bearing assembly every six months using the grease fitting at the bottom of the mast. Troubleshooting Problem: Cause: Solution: 1. Lift will not operate at all: Low battery (Lift) –...
