Summary of Contents for Turbines PA714

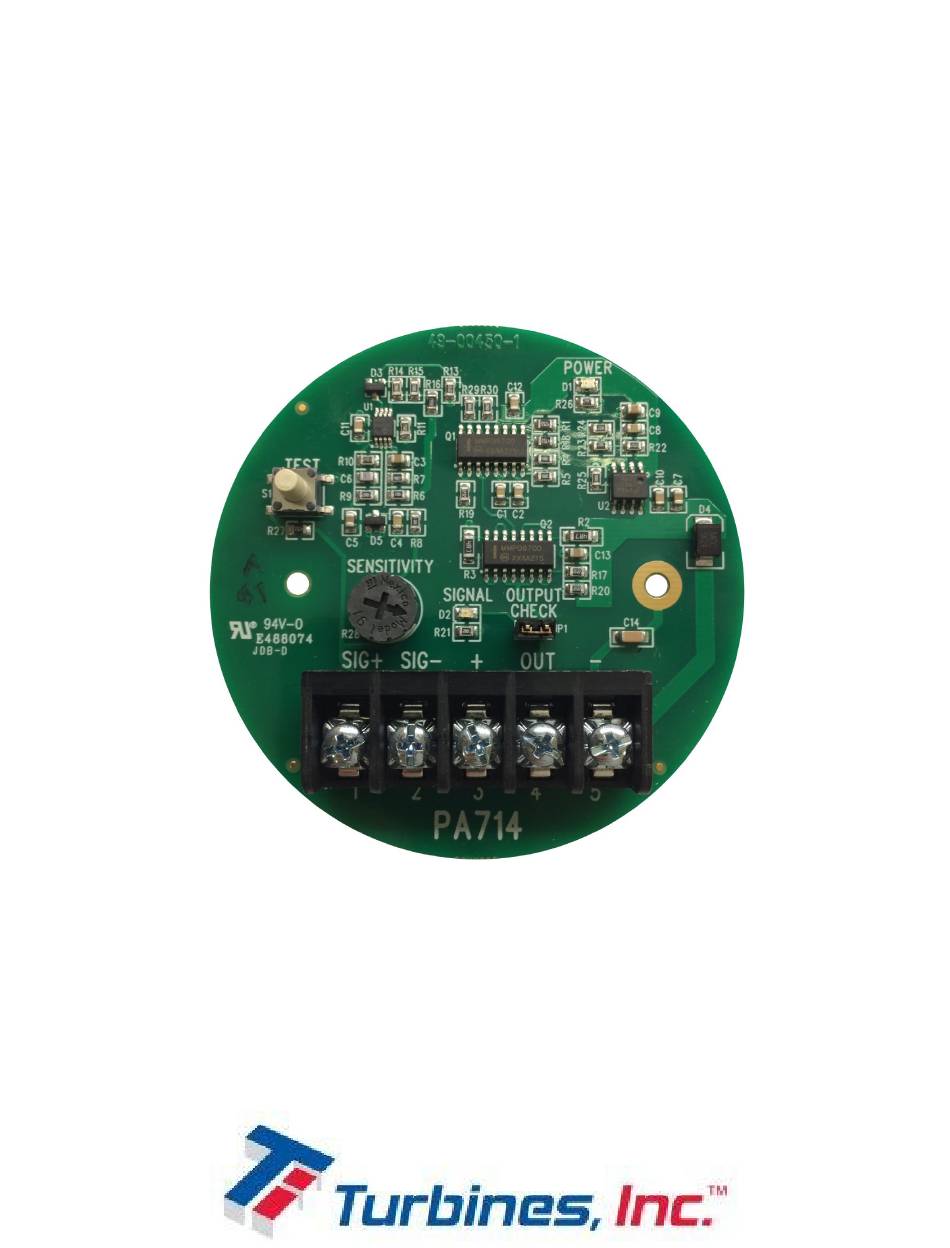

- Page 1 PA714 Pulse Amplifier Installation and Operation Manual...
- Page 2 The sensitivity adjustment permits the PA714 to discriminate between an input signal and noise by increasing (CCW) or decreasing (CW) the input signal amplitude necessary to be processed as a valid signal. This, in conjunction with direct mounting, allows the PA714 to operate effectively in noisy environments.
- Page 3 Turbines, Inc. PA714 Pulse Amplifier pg 3 BENCH TEST CALIBRATION PROCEDURE Required Equipment: Power Supply 6-28 Vdc, Frequency Generator, Oscilloscope Test Procedure: Connect power supply positive & negative leads to J1-3,5; respectively Connect oscilloscope positive & negative leads to J1-4,5; respectively Connect frequency generator positive &...
- Page 4 Turbines, Inc. PA714 Pulse Amplifier pg 4...
