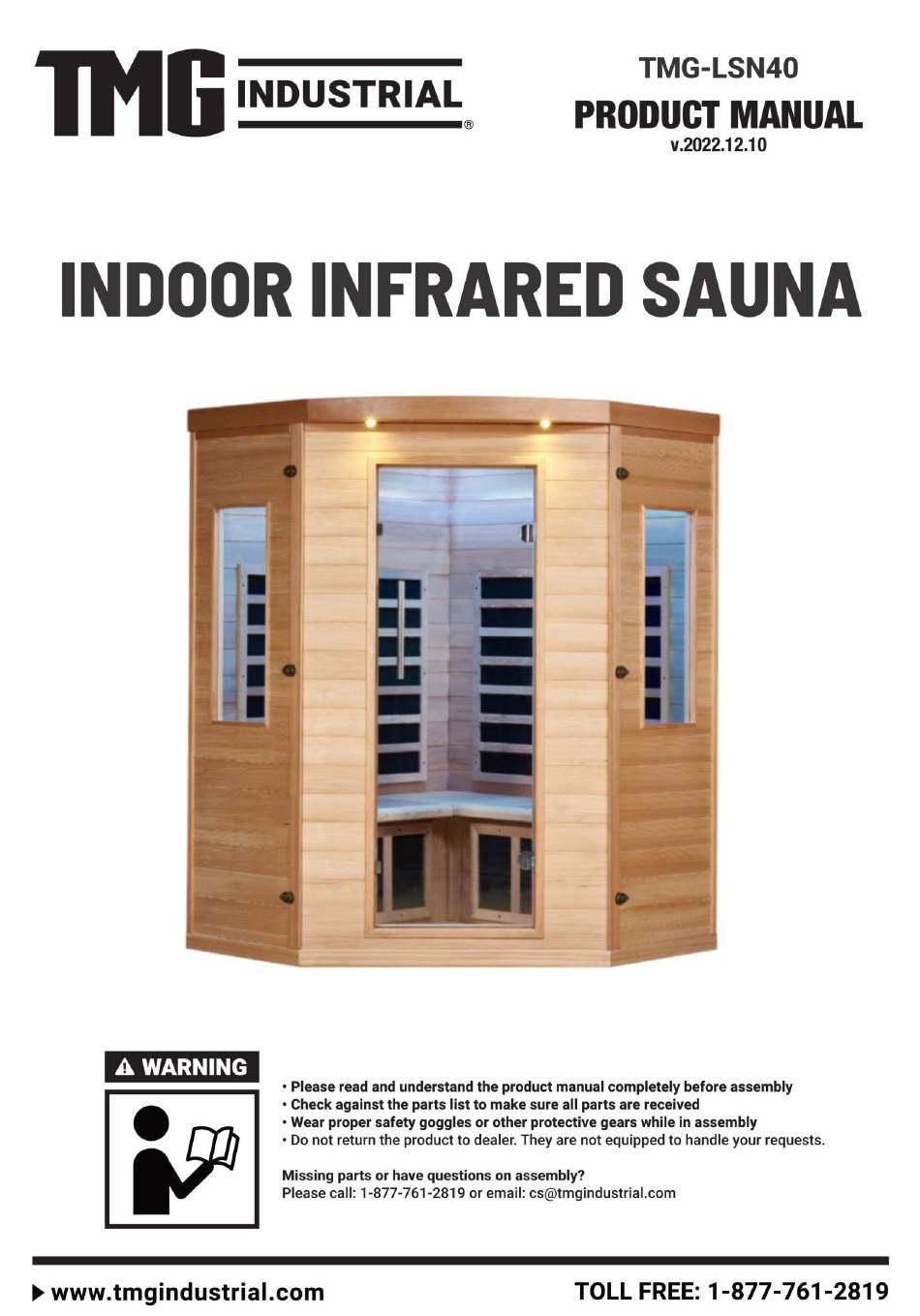

- Page 1 www.tmgindustrial.com 0/15 TOLL FREE: 1-877-761-2819...
- Page 2 INTRODUCTION We congratulate you on your new path to better health! Thousands of users enjoy the benefits of an infrared sauna every day. Now you can enjoy the great benefits of far-infrared heat within the privacy of your own home. Please read this manual carefully and thoroughly before using an Infrared Sauna for the first time.
-
Page 3: Part Description
FOR ANY MISSING PARTS PLEASE CONTACT YOUR LOCAL DISTRIBUTOR. TMG-LSN40 PART LIST PART NO. PART DESCRIPTION NOTE HY021 Front panel HY022 Back panel 2a & 2b HY023 Side panel (L) HY024 Side panel (R) HY025 Top panel HY026 Bench 6a & 6b... - Page 4 www.tmgindustrial.com 3/15 TOLL FREE: 1-877-761-2819...
- Page 5 INSTALLATION REQUIR Install the sauna on a completely level floor. Do not spray the exterior with water. If the floor is damp, install a floor separator to keep the sauna high & dry. Do not store flammable objects or chemical substances near the sauna. The sauna must be placed indoors and in a dry area.
- Page 6 STEP 3: CONNECTING THE BACK PANEL TO BOTTOM PANEL Attach the back panel to the bottom panel by lining up the back panel on the bottom panel. (Please hold the back panel until one of the side-panel had been installed.) STEP 4: CONNECTING SIDE PANELS WITH BACK PANEL Align the side panels with back panels’...
- Page 7 STEP 5: INSTALLING THE BENCH HEATER Slide down the bench heater panel by lining up its sides with the vertical guides on side panel. The heater grill is facing outward (toward the front of the sauna). Push the bench heater panel all the way down until it is touching the bottom panel and securely in place. STEP 6: CONNECT THE WIRE OF BENCH HEATER AND THE FLOOR HEATER Connect the wire of bench heater and floor heater to the back panel.
- Page 8 STEP 7: INSTALLING THE BENCH Install the bench by sliding it over the horizontal bench guides on the side panels. Push the bench all the way in until it can touch the back panel and is securely in place. STEP 8: CONNECTING THE FRONT PANEL TO SIDE PANEL ...
- Page 9 STEP 9: PLACING TOP PANEL Lower the roof panel onto the assembled panels. Gently place the top panel onto the rest of the assembled panels. When four corners are in place, gently push down the roof panel from the outside corners until it is snugly fit over the rest of panels. Make sure the cables do not get pinched between the panels.
-
Page 10: Step 11: Installing Door Handle
STEP 10: THE MAIN POWER CONNECTION ON THE ROOF PANEL Connect all the wires for heaters. Connect the control panel wires. Check if all connections to the control box are secure. STEP 11: INSTALLING DOOR HANDLE www.tmgindustrial.com 9/15 TOLL FREE: 1-877-761-2819... - Page 11 STEP 12: ENJOY YOUR SAUNA! Plug in the main power cord into the wall outlet and power up your sauna. Turn on the radio, grab some towels, a glass of water and step you're your sauna and enjoy the benefits of the sauna!! DIGITAL CONTROL PANEL OPERATING INSTRUCTIONS INSTRUCTION Press...
-
Page 12: Things To Know
b) For your cell phone, Turn on Bluetooth, then select add Bluetooth or other device > Bluetooth. Choose the device name "IR SAUNA", then select. Done 10. Sauna Temperature Adjustment Temperature Adjustment: The sauna will reach a maximum temperature of 150 Fahrenheit under ideal experimental conditions. - Page 13 Use at least 2-3 towels; sit on one towel folded over several times for added cushioning. Put another towel on the floor to absorb excess sweat. A third towel draped over the knees may aid you in comfort and useful to towel off the sweat.
- Page 14 Excessive temperature has a high potential for causing fetal damage during the early months of pregnancy. Pregnant or possibly pregnant women should contact their physician prior to using the sauna. Hyperthermia Danger: Prolonged exposure to hot air will induce hyperthermia. Hyperthermia occurs when the internal temperature of the body reaches a level several degrees above the normal body temperature of 37ºC (98.6ºF).
-
Page 15: Important Safeguards For Your Sauna
IMPORTANT SAFEGUARDS FOR YOUR SAUNA READ INSTRUCTIONS -- All the safety and operating instructions should be read before the sauna is installed and operated. RETAIN INSTRUCTIONS -- The safety and operating instructions should be retained for future reference. FOLLOW INSTRUCTIONS -- All operating and usage instructions should be followed at all times. CLEANING -- Unplug the sauna from the wall outlet before cleaning DO NOT use liquid cleaners or aerosol cleansers inside the sauna. -
Page 16: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEMS EXPLANATIONS SOLUTIONS 1. Check for power to the outlet. Power indicator Power cord is not plug-in 2. Check connection between power cord and light not on main control unit. The fuse is burned out Check or replace the fuse. The corresponding indicator light is Repair or replace the control broken or burned out.
