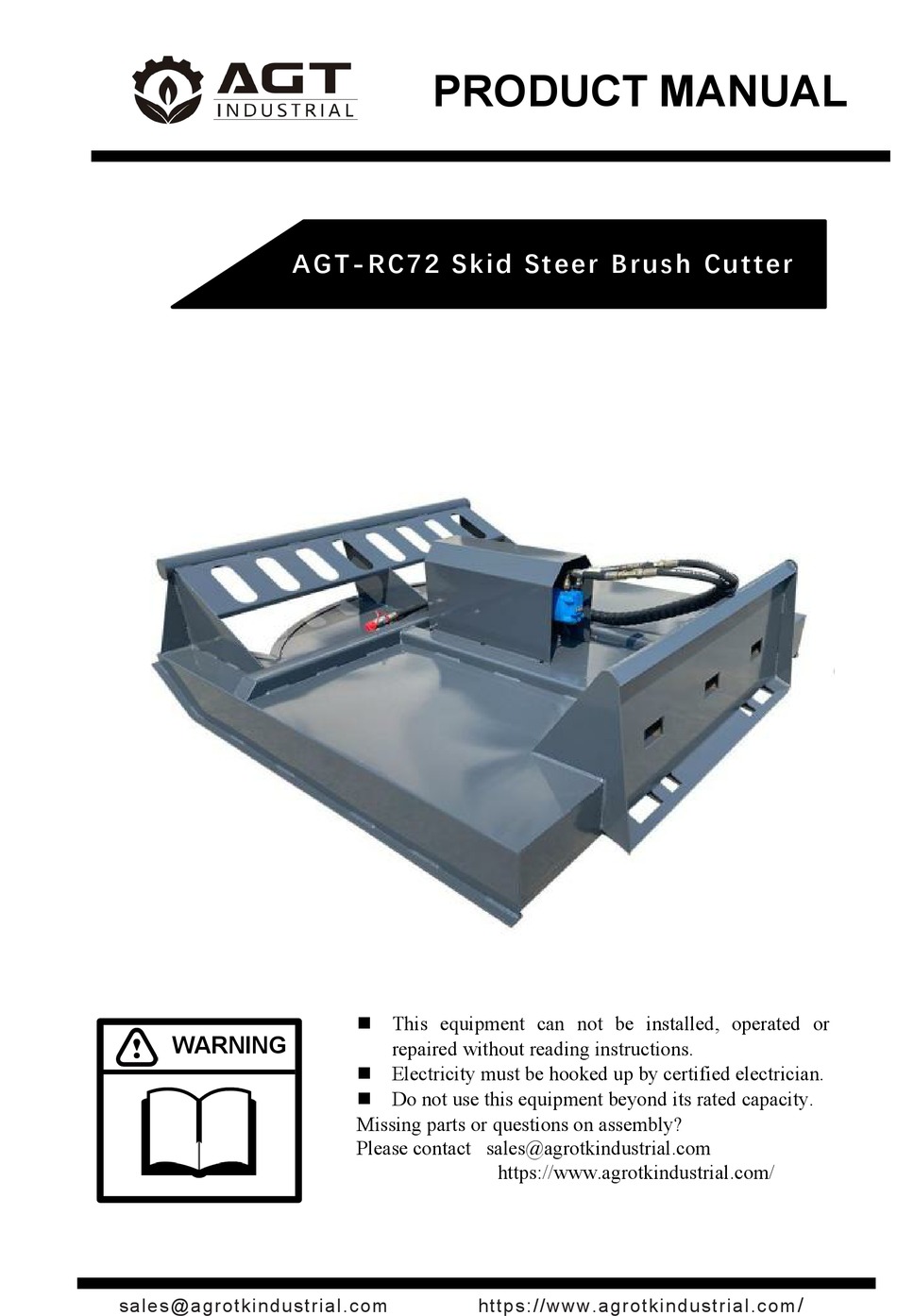

PRODUCT MANUAL
AG T- R C 7 2 Sk i d St e e r Br u s h Cu tt e r
This equipment can not be installed, operated or
WARNING
repaired without reading instructions.
Electricity must be hooked up by certified electrician.
Do not use this equipment beyond its rated capacity.
Missing parts or questions on assembly?
Please contact sales@agrotkindustrial.com
https://www.agrotkindustrial.com/
/
sales@agrotkindustrial.com
https://www.agrotkindustrial.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for AGT INDUSTRIAL AGT-RC72
- Page 1 PRODUCT MANUAL AG T- R C 7 2 Sk i d St e e r Br u s h Cu tt e r This equipment can not be installed, operated or WARNING repaired without reading instructions. Electricity must be hooked up by certified electrician. ...
- Page 2 Directory Product introduction....1/16 Operator........2/16 Safety precautions....... 3/16 Technical parameters....4/16 Installation........7/16 Handing safety......9/16 Limited Warranty......16/6...
-
Page 3: Production Introduction
Production Introduction 1. RC72 Brush cutter has a direct drive one-way check valve hydraulic motor. 2. Skid rails run along the entire mower deck sides. 3. Hydraulic hoses and 1/2" flat-faced couplers included. 4. Front-opening mowing, alloy steel blades. It is easier to cut shrubs We provide blade replacement, you don't need to worry. - Page 4 Operator Congratulations on owning this Skid Steer Brush Cutter! Your Skid Steer Brush Cutter are carefully designed and manufactured to provide you with years of reliable service. Your Skid Steer Brush Cutter will need some minor maintenance to keep it in excellent working condition. Please follow all safety precautions and maintenance procedures described in this manual.
-
Page 5: Safety Precautions
Safety precautions BEFORE OPERATION 1. The operator must read the operation manual carefully before installation, operation or maintenance. Improper operation will cause the machine damaged or the operator dead. 2. Read all the safe signs and safe declarations. Obey all the professional safe terms, local laws or the professional directions. -
Page 6: Technical Parameters
Technical parameters Model: SSRC72 Working Width 67.91” Cutting Height 1.57” Blade: （PCS） Total Length: 77.95” Total Height: 74.8” Total Length: 18.5” Working Pressure： （MPA） Flow（L/min） （GPM） 45-60 （12-16） Weight： 780.43Ibs Work environment： Temperature: -20 ~ 50 °C Height: 100 meters or less Relative humidity :<85%... - Page 7 Technical parameters...
- Page 8 PART DESCRIPTION QTYS NOTE Frame Gear Box Sprocket Chain Locking Nut (M12) Motor fixing seat weldment Bolt (M12*45) Bolt (M16*60) Rotor Pin (φ4*35) slotted nut (M16) Shim Blade Opening bolt Locking Nut (M16) Complete Gear Box Motor Sprocket Gear Box Housings weldment Inner hexagon head bolt (M8*12) Washerφ8 gerotor motor...
-
Page 9: Unpack And Check
Installation Unpack and check Check for missing or damaged components according to the packing list. If you have any questions, please contact the supplier. List of details As the table above: Machine installation Equipment must be installed on a solid concrete floor or similar. If the ground is not firm, it will not be able to connect to the loader. - Page 10 Installation Note: this drawing does not represent the appearance of the equipment For actual purchase, this figure is only for installation location reference. Oil pipe connection: Skid Steer Brush Cutter is equipped with 2 oil pipes, which inlet oil pipe and outlet oil pipe. Connect the tubing to the loader tubing connection.
-
Page 11: Handling Safety
Handling safety Maintenance Overview The maintenance procedures described in this manual should only be carried out by qualified mechanics who have been trained to repair this machine. Some procedures require special tools and skills to complete. DO NOT attempt to repair or perform service work on this machine unless you have the skills and tools to do so. -
Page 12: Maintenance Schedule
Handling safety Maintenance Schedule This brush cutter attachment will provide years of dependable service if routine maintenance procedures are performed. The maintenance tasks listed below are based on normal operating conditions. More frequent maintenance may be necessary with intense use or when operating in adverse environmental conditions. -
Page 13: Storage Tips
Handling safety Storage Tips To get years of quality use out of your brush cutter, follow these storage tips: Ensure brush cutter is free of debris, dirt, grime and grease. Store your brush cutter in a dry shed or garage. When storing your brush cutter for the season, cover with a weather proof tarp to protect it from the elements. - Page 14 Handling safety First Time Use Procedure Before operating the brush cutter, check the skid steer's hydraulic oil level and add oil if necessary. If you are operating the brush cutter ensure the case drain hose is properly attached to the prime mover's case drain connection.
- Page 15 Handling safety OSHA 1910.266 Appendix A - First-aid Kits Source: http://www.osha.gov/pls/oshaweb/owadisp.show_document?p_table=STANDARDS& p_id=9863. Accessed: 16 Dec 09 The first-aid kit information below was directly obtained from OSHA regulations. Having a kit available at the job site is required by OSHA for logging operations and is highly recommended by AGT Manufacturing.
-
Page 16: Inspection Checklist
Handling safety Inspection Checklist This checklist is to be completed prior to every use of the tree shear. DO NOT use a tree shear that fails inspection until it has been repaired. Check for damaged hoses or hydraulic leaks. See hydraulic safety precautions in this manual. - Page 17 Handling safety Safely Checking for Hydraulic Leaks WARNING: There is significant risk of injection from the high pressure spray at hydraulic leaks The tremendous energy used to operate the machine and attachments can be stored in the hydraulic system even when the machine engine is off. Very serious injuries from hydraulic fluid injection can seem insignificant at first.
-
Page 18: Limited Warranty
Limited Warranty The goal of agrotk industrial.( "AGT” ) warranty policy is to assure confidence, reduce downtime and minimize cost of ownership. Should you want to verify warranty, or should potential issues arise,please contact your authorized dealer or AGT' s Customer Service Team at service@agrotkindustrial.com, +1 913-244-6269 and we will strive to resolve any issues in a timely manner.
