Tecnologic TT 34 Operating Instructions Manual

TT 34
MICROPROCESSOR-BASED
DIGITAL ELECTRONIC TIMER
OPERATING INSTRUCTIONS
Vr. 01 (ENG) - cod.: ISTR 06086
TECNOLOGIC S.p.A.
VIA INDIPENDENZA 56
27029 VIGEVANO (PV) ITALY
TEL.: +39 0381 69871
FAX: +39 0381 698730
internet : http:\\www.tecnologic.it
e-mail: info@tecnologic.it
PREVIOUS STATEMENT:
In this manual are contained all the necessary information for a
correct installation and the instructions for the use and the
maintenance of the product; we recommend, therefore, to read
carefully the following instructions.
The maximum care has been used in the realisation of this
document, anyway TECNOLOGIC S.p.A. does not assume any
responsibility deriving from the use of itself.
The same consideration has to be done for each person or
Company involved in the creation of this manual.
The herewith issue is an exclusive property of
S.p.A. which forbids any reproduction and divulgation, although
partial, if not expressly authorised.
TECNOLOGIC S.p.A. reserves the right to execute aesthetically
and functional modifications, at any moment and without
notice.
TECNOLOGIC spa - TT 34 - OPERATING INSTRUCTIONS - Vr. 01 - ISTR 06086 - PAG. 1
INDEX
1 INSTRUMENT DESCRIPTION
1.1 GENERAL DESCRIPTION
1.2 FRONT PANEL DESCRIPTION
2 PROGRAMMING
2.1 SET POINT PROGRAMMING
2.2 PARAMETERS PROGRAMMING
2.3 PARAMETERS LOCK
3 INSTALLATION AND USE ADVICES
3.1 USE ALLOWED
3.2 MECHANICAL MOUNTING
3.3 ELECTRICAL CONNECTIONS
3.4 ELECTRICAL CONNECTION DRAWING
4 OPERATING MODE
4.1 COMMANDS OPERATING MODE
4.2 DISPLAY OPERATING MODE
4.3 OUT 1 OPERATING MODE
4.4 OUT 2 OPERATING MODE
4.5 CNT EN INPUT OPERATING MODE
5 PROGRAMMABLE PARAMETERS
5.1 PARAMETERS TABLE
5.2 PARAMETERS DESCRIPTION
6 TROUBLES, MAINTENANCE, WARRANTY
6.1 CLEANING
6.2 WARRANTY AND REPAIRS
7 TECHNICAL DATA
7.1 ELECTRICAL DATA
7.2 MECHANICAL DATA
7.3 MECHANICAL DIMENSIONS, PANEL CUT OUT AND
FIXING DEVICE
7.4 FUNCTIONAL DATA
7.5 INSTRUMENT CODE
1 - INSTRUMENT DESCRIPTION
1.1 – GENERAL DESCRIPTION

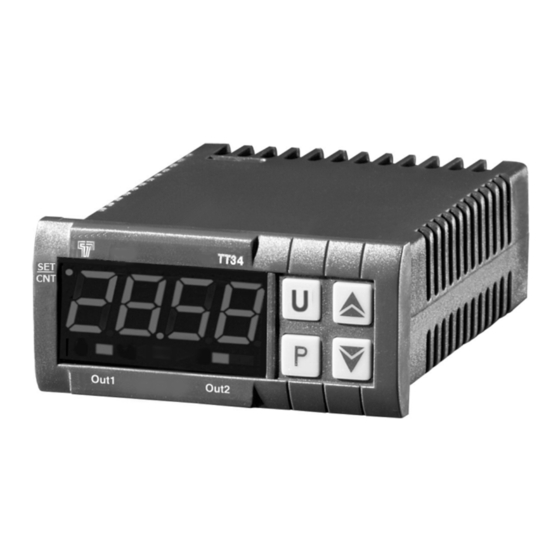

TT 34 is a programmable microprocessor based timer with 1or 2
outputs.
The instrument offers the possibility to program: up to 3 set points
time, 5 operating modes for the output OUT1, 4 operating modes
for the output OUT2, 4 time scales (from 9999 hrs. maximum to 0.1
sec. minimum), 4 functioning modes of counting enable and 2
counting modes (UP or DOWN).
The instrument can be connected to an external back up battery (9
V) which permits the counting also without power supply.
The counting state is visualised on 4 digits display
outputs state is signalised by a led.
The instrument can have 2 outputs (relay or to drive solid state
relays) and 2 digital inputs for count enable (CNT EN) and reset
(RES) which can be for free voltage contacts or voltage signals (the
same voltage supply value).
The programming of the instrument is possible by means of the 3
keys placed on the front while the counting is possible using the
frontal key U or using the back inputs CNT EN and RES.
1.2 - FRONT PANEL DESCRIPTION
8
SET
CNT
7
5
TECNOLOGIC
6
1 - Key P : Used for the set point setting and to program the
functioning parameters
any
2 - Key DOWN : Used to decrease the values or to select
parameters
3 - Key UP : Used to increase the values or to select parameters
4 - Key U : Used to Start, Stop or reset the count
5 - Led OUT 1 : It indicates when the output OUT1 is on or off.
TT 34
OUT1 OUT2
while the
4
3
2
1
