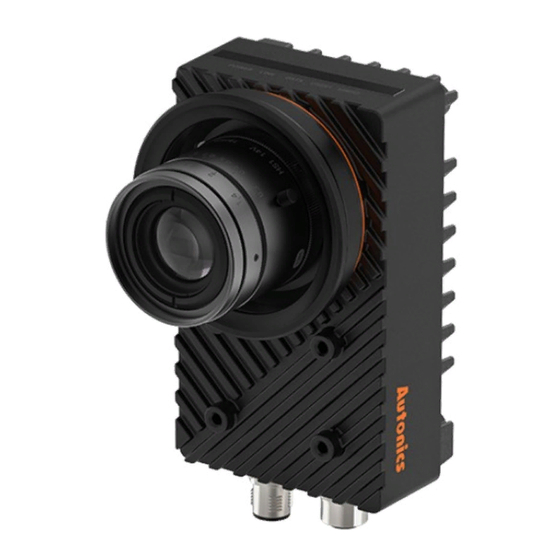

Autonics VC Series Product Manual

TCD210168AG
5M Monochrome
Smart Camera
(External illumination)
VC Series
PRODUCT MANUAL
For your safety, read and follow the considerations written in the instruction
manual, other manuals and Autonics website.
The specifications, dimensions, etc. are subject to change without notice for product
improvement. Some models may be discontinued without notice.
Features
• Various inspection functions
• Inspection simulator function
• Set up to 64 separate work group (32 inspection points per work group)
• Save data to FTP servers
• Support smart camera software (atVision)
- Inspection simulator function, manage parameters and work group,
inspection results monitoring, send data to FTP, multilingual support, etc.
• IP67 protection structure (IEC standard)
• C-Mount type
• Gigabit Ethernet communication
ᜢ ᜽ ᜣ ᜨ ᜫ
Safety Considerations
• Observe all 'Safety Considerations' for safe and proper operation to avoid hazards.
• ᜸ symbol indicates caution due to special circumstances in which hazards may occur.
᜸ Warning
Failure to follow instructions may result in serious injury or death.
01. Fail-safe device must be installed when using the unit with machinery that may
cause serious injury or substantial economic loss. (e.g. nuclear power control,
medical equipment, ships, vehicles, railways, aircraft, combustion apparatus, safety
equipment, crime / disaster prevention devices, etc.)
Failure to follow this instruction may result in personal injury, economic loss or fire.
02. Do not use the unit in the place where flammable / explosive / corrosive gas, high
humidity, direct sunlight, radiant heat, vibration, impact or salinity may be present.
Failure to follow this instruction may result in explosion or fire.
03. Do not use this product for protecting human body or part of body.
04. Do not connect, repair, or inspect the unit while connected to a power source.
Failure to follow this instruction may result in fire.
05. Check 'Connections' before wiring.
Failure to follow this instruction may result in fire.
06. Do not disassemble or modify the unit.
Failure to follow this instruction may result in fire.
᜸ Caution
Failure to follow instructions may result in injury or product damage.
01. Use the unit within the rated specifications.
Failure to follow this instruction may result in fire or product damage.
02. Use a dry cloth to clean the unit, and do not use water or organic solvent.
Failure to follow this instruction may result in fire.
03. Keep the product away from metal chip, dust, and wire residue which flow into the
unit.
Failure to follow this instruction may result in fire or product damage.
Cautions during Use
• Follow instructions in 'Cautions during Use' . Otherwise, it may cause unexpected accidents.
• The image sensor in the product is vulnerable to heat, humidity and shock.
Due to risks of product failure, do not move or transport the product by ship.
• Use or store the product within the rated environment specifications.
Failure to follow this instruction may result in product damage or malfunction.
• Power supply should be Class 2, SELV power supply device.
(UL certified, rated: 24 VDCᜡ, 1.2 A min.)
• Prevent VCC wire from short to other wires in power I/O cable.
• In order to avoid malfunction from static electricity or noise, ground shield wire of the power
I/O cable.
• Do not disconnect the power supply while setting operation or saving set information.
It may cause data loss
• Do not disconnect the power supply while updating firmware. Failure to follow this
instruction may result in product damage.
• Keep optical section of the sensor away from the contact with water, dust and oil. It may
cause malfunction.
• When not in use for a long time, disconnect and store the power cable.
• When connecting network, connection must be operated by technical expert.
• In the following case, disconnect the power supply immediately. Failure to follow this
instruction may result in fire or product damage.
- When water or foreign substances is detected in the product
- When the product is dropped or case is damaged
- When smoke or smell is detected from the product
• Do not use the product in the place where strong magnetic field or electric noise is generated.
• This unit is intended to be used in the following environments.
- Indoors (in the environment condition rated in 'Specifications')
- Altitude max. 2,000 m
- Pollution degree 2
- Installation category II
