Summary of Contents for LACTEA Smart

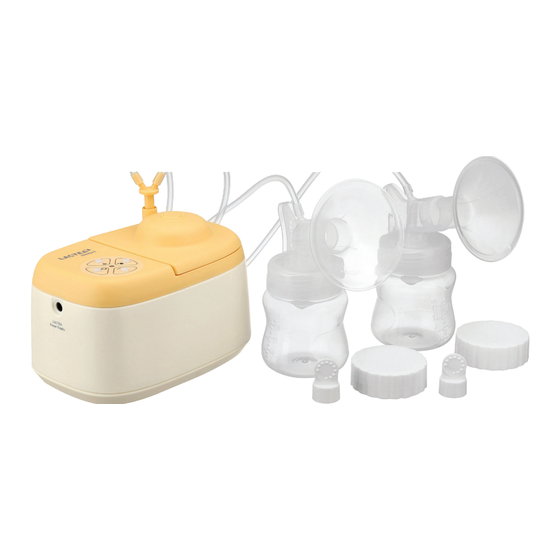

- Page 1 USER MANUAL LACTEA Smart LACTEA Smart Lite LACTEA Smart Plus LACTEA Smart Pro www.lactea.ru...
-
Page 2: Table Of Contents
CONTENTS When do you need a breast pump .3 Function controls and LED signal description ........17 Advantages of LACTEA Smart Breastpumps ......4 Troubleshooting ........18 Product description Technical data ........19 and controls ..........8 Storage and transportation ..... 19 Assembling the pump ......11 Safety measures ........20... -
Page 3: When Do You Need A Breast Pump
• Weakened baby unable to nurse effectively The LACTEA Smart, Smart Lite and Smart Plus are designed specifically for individual home use. LACTEA Smart Pro is designed for hospital use. All of them are perfect for both occasional and regular pumping. -
Page 4: Advantages Of Lactea Smart Breastpumps
3 different modes of expression. LACTEA Smart can be used as a single or a double pump. First, there is the stimulation phase (fig.1) - a fast- paced rhythm, about 120 cycles per minute, which stimulates the letdown. - Page 5 THE ADVANTAGES OF TWO-PHASE PUMPING THREE MODES OF EXPRESSION • Mimics natural nursing rhythm 1. Physiological mode (fig.2) • More milk in a shorter time The natural one. The highest efficacy with • Rapid letdown stimulation the least vacuum. Most mothers report it to be the most comfortable mode.
- Page 6 Figure 3. Classic mode. LACTEA Smart gives you a chance to choose just the perfect mode for you. Try all three of them and see which one is the right fit. Figure 2. Physiological mode. Figure 4. Gentle mode.
- Page 7 DOUBLE PUMPING* BENEFITS OF (simultaneous expression from DOUBLE PUMPING both breasts) Up to 8,3 % more calories (fats) Double pumping allows you to save time while simultaneously in milk ** increasing milk production: it Up to 18% more milk expressed stimulates additional letdown, from each breast expresses more milk, and...
-
Page 8: Product Description And Controls
PRODUCT DESCRIPTION AND CONTROLS Connecting tubing Tubing port Breast shield size M (24 mm) Membrane Connector cap Bottle Power adaptor inlet Bottle lid Pump motor Assembled block milk valve Power adaptor... - Page 9 Display (Lactea Smart Plus/ Pro models Membrane lid removal tag LED indicator Vacuum outlet START/STOP Vacuum level One touch letdown increase/ and expression decrease mode switch я...
- Page 10 LACTEA SMART PLUS/ PRO ADDITIONAL PARTS DISPLAY ICONS 1. Extra suction kit 1. Timer - duration of an 2. Silicone shield expression session 3. 8 AA battery block 2. Vacuum indicator 4. 120 ml bottles 3. Phase/mode indicator 00:00 Stimulation phase...
-
Page 11: Assembling The Pump
ASSEMBLING YOUR BREAST PUMP SUCTION KIT ASSEMBLING/DISASSEMBLING THE MILK VALVE FOR CLEANING AND SANITATION PURPOSES Carefully peel the membrane leaflet off the milk valve. In order to assemble the valve lightly press the white membrane onto the valve until you hear a soft click. Disassembling is performed in reverse order... -
Page 12: Cleaning And Sanitizing
CLEANING AND SANITIZING AFTER EACH USE PRIOR TO THE FIRST USE AND ONCE DAILY 1. Completely disassemble the breast 1. Completely disassemble the breast pump. If the pump (p.11) tubing was exposed to milk, remove the membrane lid as well (p.13) 2. - Page 13 CLEANING AND SANITIZING THE MEMBRANE, MEMBRANE LID, AND TUBING Pull the tag to remove the membrane lid. In order to attach the membrane lid, press it onto the connector body until it snaps closed. Remove the membrane lid. Wash it with soapy water. Next, rinse it with running water.
-
Page 14: Operating The Pump
. Turn the (p.8). Only use the LACTEA power adaptor. battery block on by pressing the ON switch. Don’t forget to turn the switch OFF after the pumping session. - Page 15 3. Pumping SINGLE PUMPING • Hold the breast shield onto your breast. Make sure the • If the milk letdown did not begin in 2 minutes, nipple is in the center of the shield. press the button to return to the Stimulation phase after the initiation of the Expression phase •...
- Page 16 ADDITIONAL FUNCTION CONTROLS SWITCHING BETWEEN DISABLING BUTTON SOUNDS SAVING THE SETTINGS EXPRESSION MODES You can save your individual You can turn the button sounds on Pressing and holding a pumping settings on the device. and off. To toggle the sounds on/ button (for longer than 2 sec) Press and hold buttons...
-
Page 17: Function Controls And Led Signal Description
FUNCTION CONTROLS AND LED SIGNAL DESCRIPTION short press Device Start/Stop General blinking breastpump failure hold (>2 sec) when Save user-adjusted vacuum levels started STIMULATION yellow blinking phase hold (>2 sec) when Factory reset stopped PHYSIOLOGICAL short press Toggle Stimulation/ Expression phase green blinking mode of expression... -
Page 18: Troubleshooting
TROUBLESHOOTING BREAST PUMP IS FUNCTIONING BUT IS NOT A BREAST PUMP IS NOT FUNCTIONING CREATING SUFFICIENT VACUUM The indicator is off. Make sure that: Make sure the breast pump is plugged into the energy source. • The shield fits snuggly to your breast The red indicator is rapidly flashing. -
Page 19: Technical Data
STORAGE AND The LACTEA Smart breast pump may be stored in enclosed TRANSPORTATION non-heated spaces at the ambient temperate of -20°С to +50°С and the relative humidity under 98% (at 25°С) in the absence of acidic or alkaline fumes or other aggressive substances in the air. -
Page 20: Safety Measures
(60 months but no more than 5000 • Warm up to room temperature before use if operation hours for LACTEA Smart Pro the breast pump was stored in the cold model). The warranty is effective from the •...
