INPUT CONFIGURATION
The T2 is pre-configured for resistive inputs and cannot be changed. The
resistive inputs allow for thermistors and also the pushbutton overrides.
T2
2 CHANNEL TIME SWITCH
PRODUCT DESCRIPTION

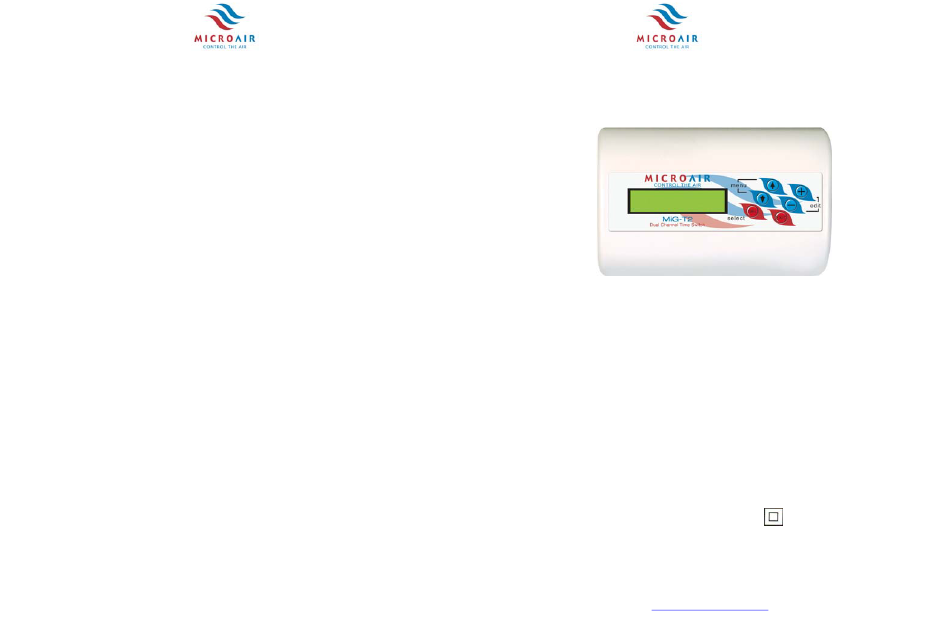

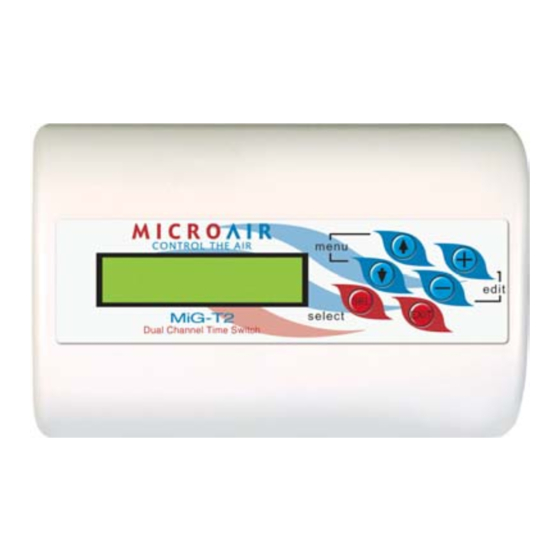

The MiG T2 is a dual channel programmable 365-day time switch, with daylight
saving, single and block holidays, temperature optimisation start, after hour's
pushbutton override and temperature override. The T2 can accept up to two
temperature and two pushbutton inputs at a time. The T2 is able to be programmed via
the six front panel buttons and has an easy to follow menu. Alternatively the T2 it can
be programmed by using the PC Interface Software. All MiG's have a controlled
temperature range of between -30°C to 110°C.
It is recommended that the T2 not be mounted in direct sunlight or within 500mm of
contactors, large power cables or any other devices that create an arc when switching.
It is recommended that they not be mounted outdoors or in direct sunlight. They should
be mounted in a well-ventilated area where the ambient air temperature is between
+5°C & 40°C. They should also be operated with a maximum relative humidity of
80% for temperatures up to 31°C (decreasing linearly to 50% at 40°C at altitudes above
2000 metres) and in an atmospheric pressure of between 86kPa (860mbar) and 106kPa
(1060mbar).
The T2 is rated at 24/230V~; 300mA/30mA @ 50/60Hz.
The T2 is covered by a 2-year warranty on parts only.
MICRO AIR PTY LTD
13-15 MCDONALD STREET MORTLAKE NSW 2137
PH: +61 2 8754 3315 FAX: +61 8754 3388
www.micro-air.com.au
(Ver 1.1)
Advertisement
Table of Contents
Summary of Contents for MICRO-AIR T2
- Page 1 The T2 is able to be programmed via the six front panel buttons and has an easy to follow menu. Alternatively the T2 it can be programmed by using the PC Interface Software. All MiG’s have a controlled temperature range of between -30°C to 110°C.
- Page 2 MOUNTING INSTRUCTIONS TO CHANGE INDIVIDUAL SETTINGS The T2 can be wall or DIN Rail mounted. However, if removing the snap 1. For safety reasons, any programming changes should be out section of the lid, the MiG must be installed in a switchboard.
- Page 3 NO2 C2 1 + - While the T2 is rated at 24/230 @50Hz but can also run on 110 volts @ 60Hz. They are pre-configured 230 volts. However they can be easily changed to another voltage by moving the location of the links located on the top left side of the circuit board.
- Page 4 MiG T2 - MENU STRUCTURE The T2 has a number of default screens that continuously show the current ‘time and date’, ‘Update/Confirm Holiday Settings’ and ‘Channel Status’. The channel status includes the override timer if running in override mode. The guide below shows the locations of the various parameters and by using the buttons as shown, the menu can be accessed and changed.
