Summary of Contents for gofanco QuadView

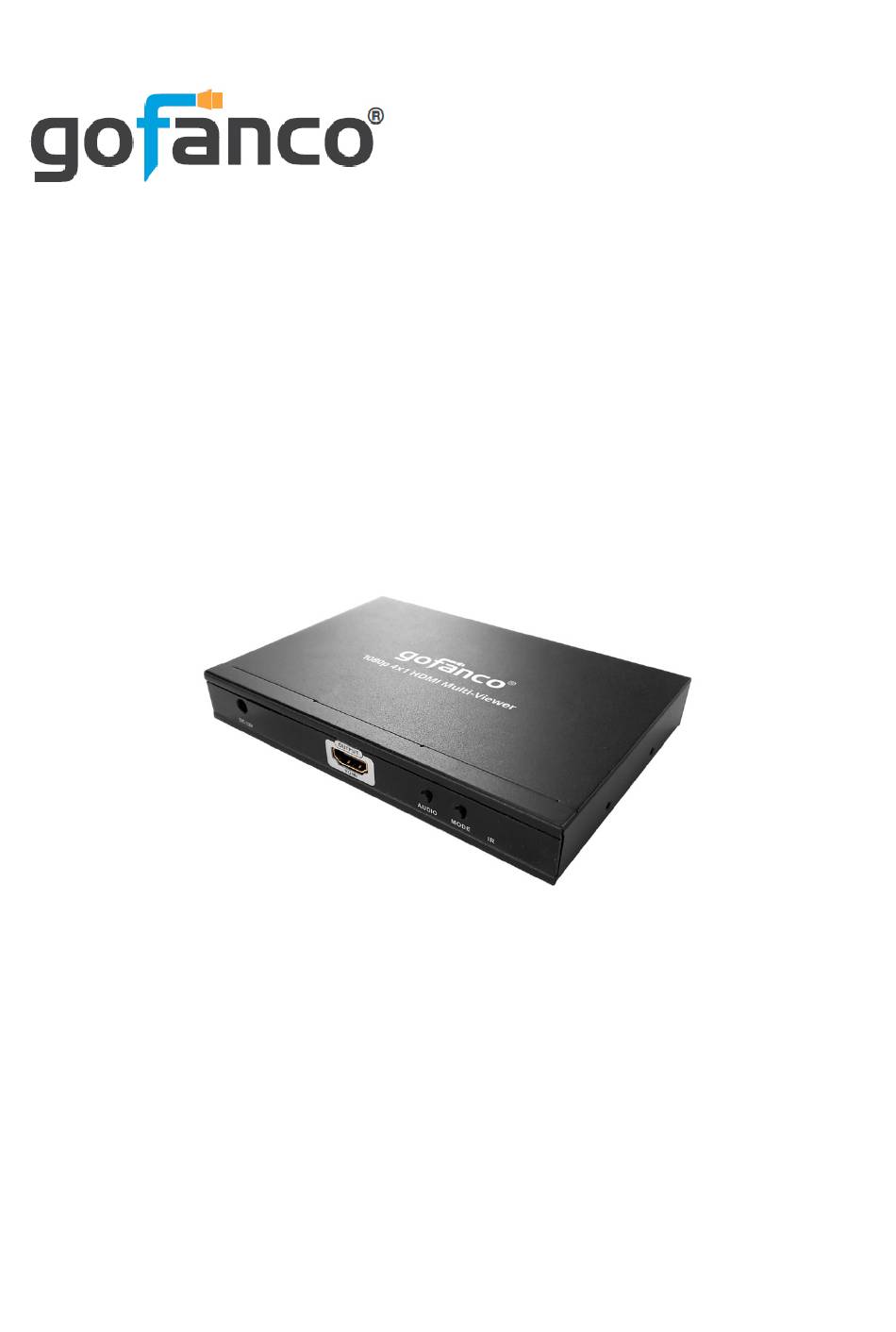

- Page 1 1080p 4x1 HDMI Multi-Viewer User's Guide P/N: QuadView G4-0153A...
- Page 2 Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User's Guide for future reference. If you need more information about our products, please visit www.gofanco.com.
- Page 3 Introduction The 1080p 4x1 HDMI Multi-Viewer allows you to view four HDMI source devices on a single HDMI display. Features • Simultaneously view four video sources on a display • Supports Quad, Dual, and Full Screen modes • Supports up to 1080p @60Hz resolution and PCM 2-channel audio •...
- Page 4 Product Layout Figure 1: 4K Multi-Viewer Layout Power Jack: Connect to the included power adapter HDMI Out: Connect to your HDMI display using an HDMI cable (HDMI cable not included) Audio Button: Press to select the audio mode in order: Input 1, Input 2, Input 3, Input 4, Mute Mode Button: Press to select the video output mode.
- Page 5 Hardware Installation Power off all devices including your HDMI source(s) and HDMI display. Connect your HDMI source device(s) to the HDMI In connectors with HDMI cables (HDMI cables not included). Connect your HDMI display to the HDMI Out connector with an HDMI cable (HDMI cable not included).
- Page 6 Video Sub-Mode Selection Order H Quadview: Input 1, Input 3&4, Input 2 1x3 Quadview (1 lg x 3 sm): Input 1 & Input 2, 3, 4 1x3 Quadview (1 lg x 3 sm): Input 2 & Input 1, 3, 4 1x3 Quadview (1 lg &...
- Page 7 Video Sub-Modes Single Screen Side by Side Dualview...
- Page 8 H Quadview 2x2 Quadview...
- Page 9 1x3 Quadview Audio Selection Button Use the Audio button, located on the front panel, to select the audio mode in order: Input 1, Input 2, Input 3, Input 4, Mute.
- Page 10 2x2: Press to select 2x2 split screen 1x3: Press to select 1 large & 3 small split screen H Quadview: Press to select 4 screens in H pattern - Input 1 & Input 2 (outside), Input 3&4 (middle) Side by Side: Press to select Input 1 and Input 2...
- Page 11 10. 1x3: Press to select Input 1 large and Input 2, 3, 4 small screen 11. 1x3: Press to select Input 2 large and Input 1, 3, 4 small screen 12. 1x3: Press to select Input 3 large and Input 1, 2, 4 small screen 13.
-
Page 12: Specifications
Specifications HDMI Interface 4 HDMI Inputs, 1 HDMI Output HDCP Version HDCP 1.2 Audio Video Modes Full screen, Dual, Quad 480i@60Hz, 480p@60Hz, 576i@50Hz, Resolution 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz Working Temperature 32-104 F (0-40 C) Storage Temperature -4-140 F (-20-60 C) Power Supply DC 12V/2A Power Consumption... - Page 13 Blank Page...
- Page 14 Blank Page...
- Page 15 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user's guide. The pictures on the user's guide are just for reference, and there may be some slight differences with the actual products. We reserve the right to make changes without prior notice to a product or system described herein to improve reliability, function, or design.
- Page 16 Thank you for choosing gofanco www.gofanco.com...
