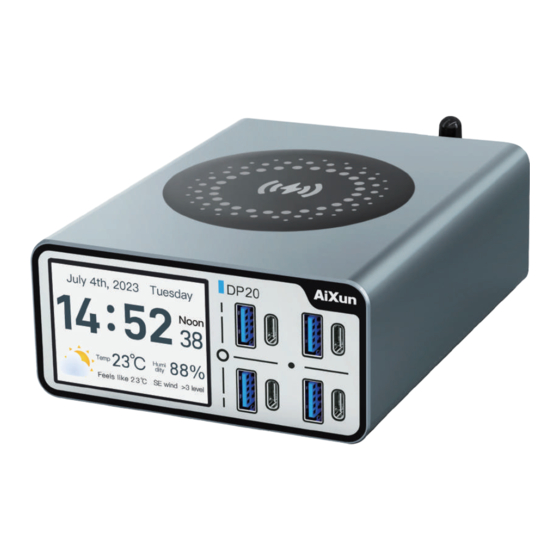

- Page 1 DP20 DESKTOP SMART FAST CHARGER User Manual Please read this manual carefully before use...
- Page 2 C ATA LO G Operation guide on DP20 desktop smart fast charger Product Features Structures Instruction 01-02 Product Parameters 03-04 Operation Steps 05-10 Precautions After-Sales Service...
-
Page 3: Product Features
Product Features Functions Display 100-240V AC 2.4inch IPS WIFI networking/OTA upgrade Wireless charging Wide range voltage HD display screen Bluetooth interconnection Max power 15W input 4+4+1+1 Support multiple fast Curve detection Multiple fast charging protocols Current and voltage, 200W full power charging ports PD3.0/QC4.0/SCP/PE2.0 etc data analysis... -
Page 4: Packing List
Back side Press: Switch and exit Long press: enter the curve interface Bluetooth WIFI antenna Power cord port Power ON/OFF For upgrading and detecting after DC Output Thermovent the connection Packing list Power cord ....1 Certificate ....1 Host ....1 User manual card ....1... -
Page 5: Product Parameters
Host dimensions:111*148 Acquisition accuracy: Front panel Net weight/kg: 0.67 *52mm 10mA, DC port is not collected *Above data is provided by AiXun lab, please refer to the actual data! Main functional parameters 4+4+1+1 multiple fast charging ports Support PPS/PD3.0/PD2.0 Support QC4+/QC4/QC3.0/QC2.0... -
Page 6: General Parameters
General parameters Enhance human-computer interaction, remote control, current AiXun platform collection and comparison, and customize your device Newly revised version, fresh and bright, improved ratio of content Interface screen, self-adaptive to the charging status 2.4 inch IPS screen, resolution: 320*240, outstanding... -
Page 7: Product Operation
Product Operation Alloy shell Super anti-static isolation design Silicone pad for wireless charging IPS HD display screen Redesigned interface, clearer and more delicate display effect Short press the button on the left to switch device... - Page 8 4+1+1 HD fast charging port Support multiple fast charging protocols 44W power of single channel 1-2-3 60W power of single channel 4 200W max full charging power Self-adapting channel status display PD3.0/QC4.0/SCP/PE2.0, etc. Precise temp control Auto temp control without hotting Starting from 40°C, stopping until 38°C (constant in 38°C) Good heat dissipation channel, reduce calorific value effectively, ensure the safety of mobile phone charging...
- Page 9 Wide range voltage Universal use in worldwide Adapt to 100-240V AC supply voltage input Operation steps of charging Connect to DP20 power cord Plug in Switch ON Connect to mobile phone DP20 Connect to the USB cable to charge It also supports wireless charging Turn off...
- Page 10 Support wireless charging Detect multiple devices in real time Support wireless charging on the top of DP20 15W max wireless charging power, the charging data can be detected in real time The screen can display the data of 5 devices and 1 host...
- Page 11 USB upgrade Connect the Type-C port on the left side to computer, open AiXun software to upgrade the software version In the later versions, it will default to be in the standby mode and display the local time and weather, enhance...
- Page 12 Select a channel in charging, long press to enter the digital interface, and then short press to switch to the curve interface Connect with AiXun platform through Type-C USB cable or wireless, analyze data more clearly on PC! Charging current curve detection...
- Page 13 Precautions To avoid power supply damage and keep safe working environment, the following items should be observed: The product uses a three wire grounding plug, which must be inserted in a three hole grounding socket. Do not change the plug or use an ungrounded three plug adaptor to avoid poor grounding. To lengthen the wire, please use a grounded three wire power cord Built-in precision electronics, non-professionals please do not disassemble without authorization.
-
Page 14: After Sales Service
Warning This product has anti-static measures, please be sure to use grounding. After Sales Service Warranty regulations: The product is guaranteed for one year from the date of purchase (subject to the purchase certificate). The warranty service is only valid under normal use. All man-made damage, such as improper use of accessories, failure to use according to instructions, damage not caused by our company's repair, wrong use or negligence, the warranty service will immediately invalid. - Page 15 Address:Room 402(403), Building 2, IOT Industrial Park, 4012 Wuhe Blvd, Bantian Street, Longgang District, Shenzhen Hotline: (+86) 400-175-8688 Official website:www.aixuntech.com...
