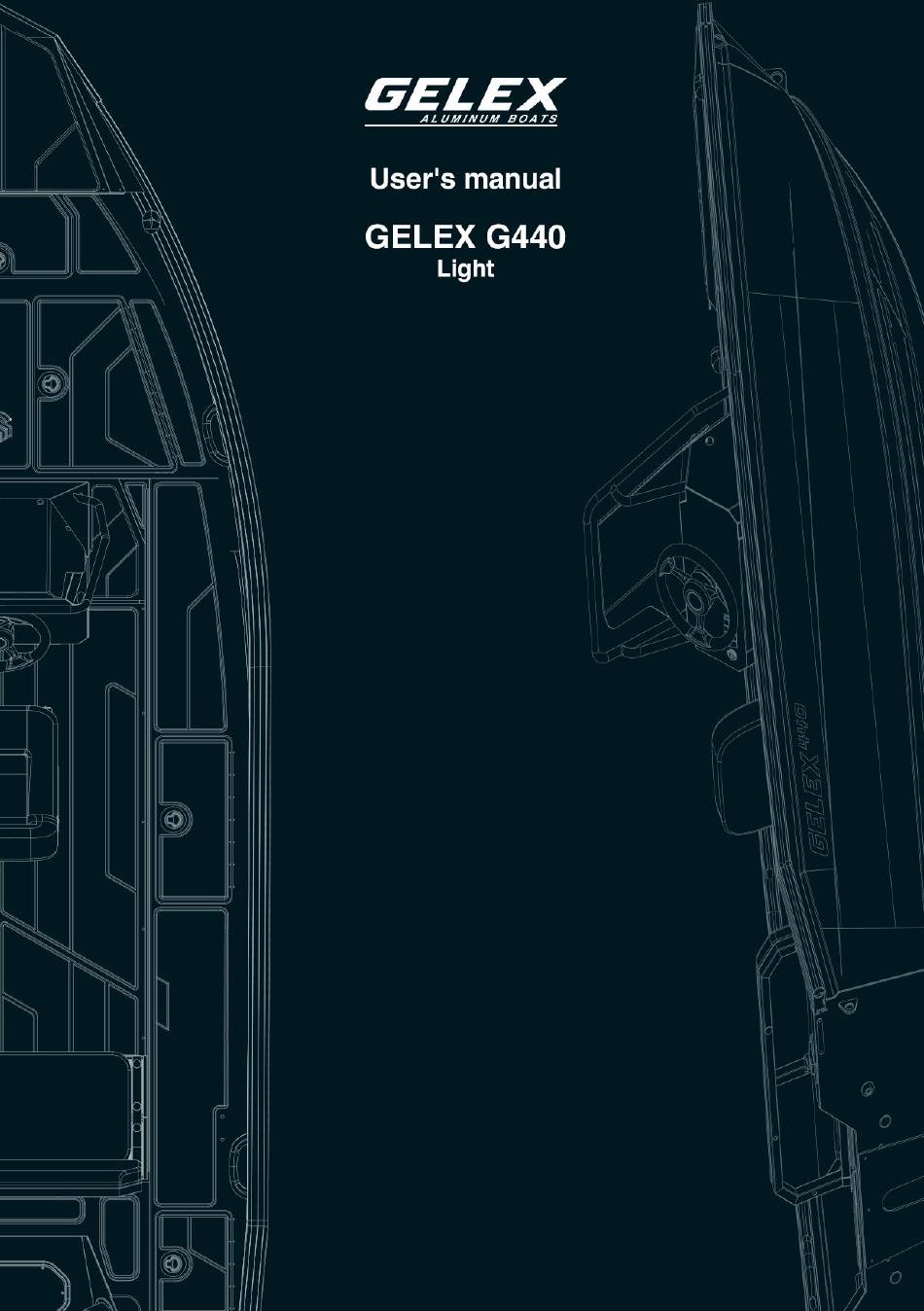

- Page 2 GELEX G440 Light User’s manual...
- Page 3 Dear Customer! Congratulations with the purchase of the GELEX GLOBAL GROUP product. GELEX boats are the result of leading engineering technologies implementation, integration tests, constant desire to provide an increased level of comfort, reliability, safety and excellent performance specifications. We are thankful for your choice and believe you’ll get unforgettable impressions using our products and it will be the constant source of satisfaction in your life.
- Page 4 GELEX G440 Light User’s manual ATTENTION! Before boat operation, it ‘s important to read the manual to have a clear vision of the boat construction, its operating parameters and parts, technical systems, installed equipment, capabilities and limitations. Only qualified stuff must perform maintenance or modify your boat for your safety and boat integrity.
-
Page 5: Table Of Contents
THE CONTENT HULL IDENTIFICATION NUMBER……………………….5 MANUFACTURER'S PLATE……………………………...6 BOAT DESIGN …………………………………………….7 BOAT’S TYPES AND MAIN COMPONENTS ..…………8 SPECIFICATIONS………………………………………….9 BASIC AND ADDITIONAL EQUIPMENT ………….…..10 SWIVEL SEATS INSTALLATION ………………….…...12 FUEL SYSTEM ………………………………………..…13 BOAT POWER SUPPLY SCHEME………………..14 BOAT OPERATION ……………………………………..17 SAFETY RECOMMENDATIONS ……………………..20 BOAT LOADING AND TRANSPORTING ON THE TRAILER…………………………………………………...22 BOAT STORAGE AND MAINTENANCE ……………...23 SYSTEM CHECK ………………………………………..25... -
Page 6: Hull Identification Number
GELEX G440 Light User’s manual 1. HULL IDENTIFICATION NUMBER All GELEX boats come under a standard ISO 6185 established by the International Standardization Organization and EU Directive 2013/53 / EU. Each hull manufactured at our plant is assigned an individual CIN number. -
Page 7: Manufacturer's Plate
2. MANUFACTURER’S PLATE The manufacturer’s plate is installed on each boat that has a certificate of conformity, it contains the information about maximum-passengers number, load capacity and other parameters. The manufacturer’s plate is located on the stern of the vessel. Details of the manufacturer's plate: 1 - Ship category (European Directive 2013/53/EU). -
Page 8: Boat Design
In the stern of the vessel there is a self-draining recess and a rigid transom 508 mm height, on which an outboard engine is installed (purchased separately). BOAT’S TYPES AND MAIN COMPONENTS Boat GELEX G440 Light general view (with some options): - 7 -... -
Page 9: Boat's Types And Main Components
4. BOAT’S TYPES AND MAIN COMPONENTS Pic. 1. Main boat’s components 1. Under-seat locker-bag (for oars storage) and two folding oars, 2.15 m. Two transom cover (internal – aluminum, external – plastic); Lockers for storing things and accessories (including an anchor compartment);... -
Page 10: Specifications
GELEX G440 Light User’s manual 5. SPECIFICATIONS GELEX G440 Light has the following technical specifications: Characteristic Parameters Hull material AlMg 4,5 Mn (5083) Weight 264 kg Length 4540 mm Width 1750 mm Height 780 mm Transom height 508 mm Maximum engine power 50 НР... -
Page 11: Basic And Additional Equipment
6. BASIC AND ADDITIONAL EQUIPMENT BASIC EQUIPMENT GELEX G440 Light: The basic equipment of the boat includes • The hull is completely painted with gray polyester powder paint (RAL 7011); • Reinforced bow platform with the possibility of installing additional equipment n it (anchor winch, electric anchor);... - Page 12 GELEX G440 Light User’s manual ADDITIONAL EQUIPMENT GELEX G440 Light: Additional equipment may include : • Painting the boat hull in a different color, options are available on the website www.gelexglobal.com or at an authorized dealer. • Pasting the outer sides with decorative plaid.
-
Page 13: Swivel Seats Installation
• Overall cover. Updating information on the basic and additional equipment of the boat Gelex 440 Light can be found on our official Web Site www.gelexglobal.com.ua or from an authorized dealer. ATTENTION! -
Page 14: Fuel System
GELEX G440 Light User’s manual 8. FUEL SYSTEM Gelex G440 Light can be fitted with a stationary fuel tank of 40 liters and a mobile fuel tank of up to 25 liters. The mobile fuel tank can be located both in the bow compartment and in the stern. -
Page 15: Boat Power Supply Scheme
(see pic. below). *The cable channel of the central console can be installed only if it is available. Also, all Gelex G440 Light models can be equipped with an electric kit (see section Additional equipment Gelex G440 Light) - 14 -... - Page 16 GELEX G440 Light User’s manual - 15 -...
- Page 17 LIST OF ELEMENTS OF ELECTRICAL SCHEME BOAT WITH CONSOLE GC-03 and GC-06* Marking Name Quantity Fuse for the horn Bilge pump fuse Fuse of navigation light Backup keys fuse Socket fuse Enclosed automobile fuse 12 V socket Key for horn Bilge pump key Navigation light key Reserve key...
-
Page 18: Boat Operation
GELEX G440 Light User’s manual 10. BOAT OPERATION Using boat unfavourable conditions beyond design restrictions may affect to its condition and cause the warranty loss. operate the boat you need Vessel Driving License, certain knowledge, skills and experience. After training at special courses you сan get it. - Page 19 • Try to concentrate the load in the boat as evenly and low as it’s possible. In the cockpit place things so they don’t move and slip when your boat is moving. Do not exceed the maximum load capacity loading the boat. After completing all checks - you are ready to go out on the water.
- Page 20 GELEX G440 Light User’s manual Аdjusting the tilt of the engine Proper mooring requires for maximum performance preparation. Consider the wind and the speed/direction of the current - these have a big impact on the movement of the boat as a whole, especially when mooring or docking maneuvers.
-
Page 21: Safety Recommendations
The hull must be at 3 to 4 degrees angle to the water for maximum efficiency. If your boat is moving with the bow too high or too low at cruising speed, then you must distribute the load in the boat more proportionally by moving some of it to the bow or stern of the boat. - Page 22 GELEX G440 Light User’s manual READ AND REMEMBER BASIC SAFETY RECOMMENDATIONS: 1. Put on life jacket being on the boat. 2. Always use an emergency cord-switch: wear it around your wrist or attach it to your clothes. 3. No alcohol or drug use during vessel driving.
-
Page 23: Trailer
12. BOAT LOADING AND TRANSPORTING ON THE TRAILER To transport the boat, choose the appropriate trailer that is most suitable for the weight and dimensions of the boat. The size and capacity of the trailer must match the size and weight of your boat. Contact your nearest authorized dealer to get an information on what trailer to buy. -
Page 24: Boat Storage And Maintenance
GELEX G440 Light User’s manual From the front, the boat must also be fixed through the eye- bracket using the drum winch cable. Always adjust the position of the straps to keep the boat level while pulling up, providing protection between the straps and the hull. - Page 25 Also, do not use any form of acid to remove dirt or to wash the boat. It can damage not only the painted coating, but also damage the boat parts. Exclude the impact on the hull and embellishments of the following substances: •...
-
Page 26: System Check
GELEX G440 Light User’s manual The textile can be cleaned without removing it from the frame, the residual dirt can be washed off using soapy liquid or neutral cleansers. Overall covers should only be stored dry! Remove all seats regularly, and clean them thoroughly, especially at the attachment points. -
Page 27: Warranty Package
The manufacturer guarantees the repair and elimination of design flaws, a structural defect in the material or deficiencies in the quality of work if they are identified and fixed by an authorized dealer or manufacturer of GELEX GLOBAL GROUP within a period not exceeding thirty-six calendar months... - Page 28 GELEX GLOBAL GROUP. 2. GELEX GLOBAL GROUP constantly improves its products and cares of high product quality. The service life of GELEX boats exceeds 10 years, so we advise our customers to care the boat, don’t overload it and service it in a timely manner so that your boat serves you not only during the warranty period, but for many years later.
- Page 29 The warranty doesn’t cover: 1. Damage caused by misuse, accident, galvanic corrosion, improper transportation, negligence, neglect of operation and maintenance. 2. Installed engines, electrical appliances of the engine and its components, and damage caused by the installation of the engine or its components. 3.
