DETAILED INSTRUCTIONS

FOR USE OF A HEAT PUMP DRYER

LUDH92700

Table of Contents

Troubleshooting

Need help?

Do you have a question about the LUDH92700 and is the answer not in the manual?

Questions and answers

Summary of Contents for BREDA LUDH92700

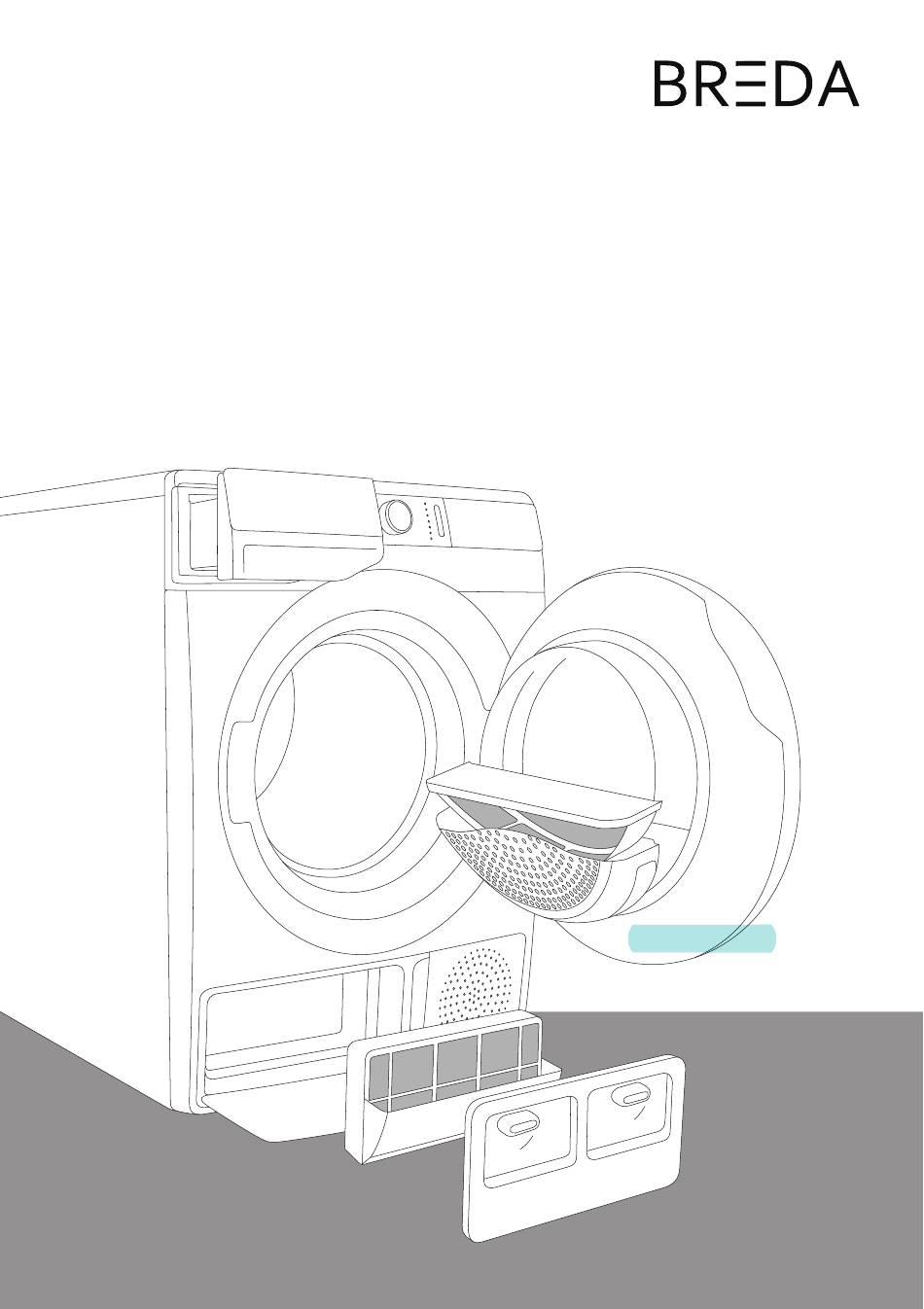

Page 1 DETAILED INSTRUCTIONS FOR USE OF A HEAT PUMP DRYER LUDH92700...
Page 2 Life is complicated today. Let's make at least laundry care simple! Your new dryer uses innovative technology and the latest achievements in laundry care to help you simplify your daily household chores. The technology offers the gentlest care for any garment, with minimum creasing, while the IonTech technology will leave your laundry even softer and less wrinkled, without any unpleasant odours and bacteria.
Page 3: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS INTRODUCTION 14 DESCRIPTION OF THE DRYER 15 Technical information 16 Control unit PREPARING 18 INSTALLATION AND CONNECTION 19 Selecting the room THE DRYER 22 Adjusting the dryer feet BEFORE FIRST 23 Draining the condensate 24 Connecting to the power mains 25 Electrical installation 27 Moving and transport after installation...
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE! WARNING – To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following: 1. Read all instructions before using the appliance. 2.
Page 5 9. Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product. 10. Do not use heat to dry articles containing foam rubber or similarly textured rubber-like materials. 11. Clean lint screen before or after each load. 12.
Page 6 These instructions for use of a dryer are supplied with different types or models of dryers. Therefore, they may include descriptions of settings or equipment that are not available in your dryer. Failure to observe the instructions for use or inappropriate use of the dryer may result in damage to the laundry or the appliance, or injury to the user.
Page 7 After installation, the dryer should stand still for two hours before it is connected to the power mains. At least two persons are required to install the tumble dryer on top of a washing machine. WARNING: The dryer may not be connected to the power mains using an extension cord.
Page 8 WARNING: Do not place the dryer behind lockable or sliding door, or door with a hinge on the opposite side of the dryer door hinge. Install the dryer in such way that the door can always be freely opened. Never block the air exhaust (evacuation opening). WARNING: Do not place the dryer on a carpet with long fibres as this may impede air circulation.
Page 9 Laundry stained with oil, acetone, alcohol, oil derivatives, stain removers, turpentine, wax, and wax removers should be washed in a washing machine with hot water and detergent before it is dried in the dryer. Clothing that includes latex, rubber parts, shower and bathing caps, and laundry or covers with rubber foam may not be dried in the dryer.
Page 10 WARNING: Do not use any solvents or cleaning agents that could damage the dryer (please observe the recommendations and warnings provided by the manufacturers of the cleaning agents). After the drying process, unplug the dryer power cord from the power outlet. Never add chemicals or fragrances into the condensate tank (see chapter »DESCRIPTION OF THE DRYER and EMPTYING THE CONDENSATE TANK«).
Page 11 CHILD SAFETY Do not allow children to play with the dryer. Prevent your children and pets from entering the dryer drum. Before closing the dryer door and running the programme, make sure there is nothing except laundry in the drum (e.g. if a child climbed into the dryer drum and closed the door from the inside).
Page 12 WARNING: DANGER OF HOT SURFACE At higher drying temperatures, the door glass will heat up. Be careful to avoid burns. Make sure children do not play near the door glass. The back of the dryer may get very hot during operation. Wait for the dryer to cool down completely before touching its back side.
Page 13 SAFETY WARNING: Only use the dryer to dry laundry that was washed with water. Do not dry any laundry that was washed or cleaned with flammable cleaners or substances (such as gasoline, trichloroethylene etc.) as this may result in an explosion.
Page 14: Description Of The Dryer
DESCRIPTION OF THE DRYER FRONT Condensate tank On/off button Programme selector knob Start/pause button Control unit Door Net filter Air vent Heat pump filter 10 Rating plate BACK Power cord Condensate discharge hose Adjustable feet Junction box...
Page 15: Technical Information
TECHNICAL INFORMATION Rating plate with basic information about the dryer is fitted on the front wall of the dryer door opening (see chapter »DESCRIPTION OF THE DRYER«). Width 23½" (600 mm) Height 33½" (850 mm) Dryer depth (a) 24½" (625 mm) Depth with door closed 25½"...
Page 16: Control Unit
CONTROL UNIT Bedding Co‚on Extra Dry ON / OFF ON / OFF START START Baby Co‚on Normal Time Co‚on Damp Iron Down Wear Mixed Fabrics Air Refresh Mixed Damp Iron Ac ve Wear Wool Shirts - Perm. Press Delicates ON/OFF BUTTON PROGRAMME START/PAUSE BUTTON Switching the dryer on and...
Page 17 HALFLOAD TIME (DRYING TIME) CLEAN THE FILTER Drying time setting option symbol lighting ECOEYE EMPTY THE CHILD LOCK symbol Information on power CONDENSATE TANK lighting consumption, according to the symbol lighting Press the positions 9+12 and selected drying settings. hold them for 3 seconds. START DELAY EXTRA DRY Option to set a start delay...
Page 18: Installation And Connection
INSTALLATION AND CONNECTION WARNING: Install the clothes dryer according to the manufacturer’s instructions and local codes. WARNING: Clothes dryer installation must be performed by a qualified installer. WARNING: To reduce the risk of severe injury or death, follow all installation instructions. WARNING: Save these instructions.
Page 19: Selecting The Room
SELECTING THE ROOM 4" (10 cm) 2" (5 cm) 4" (10 cm) The dryer may not be in contact with a wall or adjacent furniture. For optimum dryer operation, we recommend observing the clearance from the walls as indicated in the figure. In case of failure to heed the required minimum clearance, the dryer may overheat.
Page 20 DRYER PLACEMENT If you also have a dryer of corresponding (same) dimensions, it can be placed on top of the washing machine; in this case, vacuum feet must be used. Alternatively, the dryer can be placed next to the washing machine (figures 1 and 3). If your washing machine is smaller (minimum depth 21½"...
Page 21 Do not place the dryer behind lockable or sliding door, or door with a hinge on the opposite side of the dryer door hinge. Install the dryer in such way that the door can always be freely opened. Do not place the dryer on a carpet with long fibres as this may impede air circulation. 90°...
Page 22: Adjusting The Dryer Feet
ADJUSTING THE DRYER FEET Level the dryer in longitudinal and traverse direction by rotating the adjustable feet which allow levelling by +/- ½" (+/- 1 cm). Use a spirit level and spanner No. 22. Floor on which the dryer is placed must have a concrete base. It should be clean and dry; otherwise, the dryer may slide.
Page 23: Draining The Condensate
DRAINING THE CONDENSATE The moisture from the laundry is extracted in the condenser unit and accumulated in the condensate tank. During the drying process, an indicator light (symbol (8) is lit on the display unit) warns when the condensate tank is full and needs to be emptied. To avoid emptying the condensate tank, run the condensate discharge hose located at the back of the appliance directly into a drain.
Page 24: Connecting To The Power Mains
CONNECTING TO THE POWER MAINS After installation, the dryer should stand still for two hours before it is connected to the power mains; this allows the dryer to stabilize. This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current.
Page 25: Electrical Installation
ELECTRICAL INSTALLATION The receptacle on the rear of the machine is designed to accommodate washers ONLY (rated 208–240 V.) To use this receptacle, you must use the ready-fitted plug supplied with the washing machine or an equivalent. Washers rated 208–240 V have two internal fuses of 15 A each.
Page 26 ELECTRICAL CONNECTIONS Read the Electrical requirements and grounding instructions before connecting the tumble dryer. Electric models of the dryer are manufactured for a 3-wire connection system. The dryer frame is grounded by a link to the neutral conductor on the dryer terminal block. If local codes do not permit grounding through the neutral, the grounding link from the terminal block must be removed and a separate ground wire must be used.
Page 27: Moving And Transport After Installation
MOVING AND TRANSPORT AFTER INSTALLATION After every drying cycle, a small amount of condensed water will remain in the dryer. Switch on the dryer and choose one of the programmes, then let the appliance operate for approximately half a minute. This will pump out the remaining water and prevent damage to the dryer during transport. If the dryer cannot be transported in the upright position, tilt it to the left side.
Page 28: Before Using The Appliance For The First Time
BEFORE USING THE APPLIANCE FOR THE FIRST TIME Make sure the dryer is disconnected from the power mains; then, open the door by pulling the left side of the door towards you (figures 1 and 2). Before using the dryer for the first time, clean the dryer drum using a soft damp cotton cloth and water (figure 3).
Page 29: Drying Process, Step By Step
DRYING PROCESS, STEP BY STEP (1 - 6) STEP 1: HEED THE LABELS ON THE LAUNDRY Cotton Normal Max. washing Max. washing Max. washing Hand wash Do not wash; temperature temperature temperature only wash Sensitive laundry EXTRA HOT WARM COLD Bleaching Bleaching in cool water Bleaching not allowed...
Page 30: Step 2: Preparing For The Laundry Drying Process
STEP 2: PREPARING FOR THE LAUNDRY DRYING PROCESS Sort the laundry by type and thickness of the fabric (see PROGRAMME TABLE). Close the buttons and zips, tie any ribbons, and turn the pockets inside out. Place very sensitive clothes in a special-purpose laundry bag. (The special-purpose laundry bag is available as an optional accessory.) Drying laundry made of particularly delicate fabrics that may be deformed is not recommended.
Page 31 DRYING IN A BASKET (DEPENDING ON THE MODEL) Before the first drying cycle, remove the basket and all packaging from the drum. Laundry may only be dried in the basket when using the timed drying programme. (The basket is available for purchase as an optional accessory at the service centre.) Open the dryer door and insert the laundry.
Page 32 SWITCHING ON THE DRYER Connect the dryer to the power mains by plugging in the power cord. Press the (1) ON/OFF button to switch on the dryer (figure 1). With some models, the dryer drum is lit as well (figure 2). (The light in the dryer drum is not suitable for any other use.) The light in the dryer drum may only be replaced by the manufacturer, a service technician or an authorized person.
Page 33 LOADING THE DRYER Open the dryer door by pulling the left side of the door towards you (figure 1). Insert the laundry into the drum (after making sure the drum is empty) (figure 2). Close the dryer door (figure 3). Do not insert laundry into the dryer if it has not been wrung or spun (recommended minimum spinning cycle: 800 rpm).
Page 34: Step 3: Choosing The Drying Programme
STEP 3: CHOOSING THE DRYING PROGRAMME Choose the programme by rotating the programme selector knob (2) to the left or to the right (depending on the type of laundry and the desired level of dryness). See PROGRAMME TABLE. When you select the drying programme, the light (2a) next to the selected drying programme lights Bedding Co‚on Extra Dry ON / OFF...
Page 35 PROGRAMME TABLE Programme Max. Programme description Dryness levels load Cotton Extra Dry 19,8 lb Use this programme for thicker non-sensitive cotton (Cupboard dry) (9 kg) laundry. After drying, it will be dry and ready to be stored in the cupboard. Cotton Normal 19,8 lb Use this programme for thicker non-sensitive cotton...
Page 36 Programme Max. Programme description Dryness levels load Bedding 11 lb Use this programme for larger items. When the (5 kg) programme is complete, they will be dry. Adjusted drum rotation prevents the laundry from tangling. The Cotton Normal program is intended for drying wet cotton laundry. It is the most energy- efficient program for drying cotton laundry.
Page 37: Step 4: Selecting Extra Functions
STEP 4: SELECTING EXTRA FUNCTIONS Activate/deactivate the function by pressing the desired position (before pressing the (3) START/ PAUSE button). Adjust the settings by pressing the relevant function button (before pressing the (3) START/PAUSE button). Functions that can be changed or adjusted with the selected drying programme are partly lit (dimmed).
Page 38 ECOEYE Displays information about how economical your dryer setting is. ECOEYE displays power consumption based on the selected programme and any extra functions or settings. The more symbols are lit, the more economical setting you have selected and the lower power consumption. ECOEYE displays a less economical drying setting with higher power consumption.
Page 39 START EXTRA DRY Press on the EXTRA DRY position to adjust the dryness level – the dryer the laundry, the longer the drying cycle. This setting can be adjusted before the start of the drying process. After the drying programme, this setting is not stored.
Page 40 ANTI CREASE If you do not intend or cannot remove the laundry from the dryer immediately after the completion of the drying programme, we recommend using the (12) ANTI CREASE function which has to be selected before the start of the drying process. Press on the position (12) ANTI CREASE to choose between 1h, 2h, and 3h (12a) or deactivating this function.
Page 41 CHILD LOCK To activate or deactivate the child lock, press the positions (9) START DELAY and (12) ANTI CREASE simultaneously and hold them for at least 3 seconds until the symbol (11) lights up or goes off, respectively. If the child lock is activated, programme or additional functions cannot be changed.
Page 42 EXTRA FUNCTION TABLE Programme Cotton Extra Dry • • • • (Cupboard dry) Cotton Normal • • • • Cotton Damp Iron • • • • (Moist for ironing) Mixed Fabric • • • (Cupboard dry) Mixed Damp Iron • •...
Page 43: Step 5: Starting The Drying Programme
STEP 5: STARTING THE DRYING PROGRAMME Press the button (3) START/PAUSE. START START STEP 6: END OF THE DRYING PROGRAMME At the end of the drying programme, »End« will appear on the display unit , the two red indicator lights will light up, and the (3) START/PAUSE button light and ANTI CREASE (12a) time indicator, if activated or selected, will flash.
Page 44: Interruptions And Changing The Programme
INTERRUPTIONS AND CHANGING THE PROGRAMME INTERRUPTIONS Interrupting the programme process Press the (3) START/PAUSE button to pause/resume a programme. To stop and cancel the drying programme, press the (3) START/PAUSE button and hold it for 3 seconds. The selected programme will stop, and the dryer will start to cool down. Cooling down time depends on the selected programme.
Page 45 ADDING LAUNDRY AFTER THE START OF THE PROGRAM Open the dryer door and press the (3) START/PAUSE button. Insert the laundry and press the button (3) START/PAUSE. When loading the laundry, make sure you do not burn yourself when you open the dryer door.
Page 46: Maintenance & Cleaning
MAINTENANCE & CLEANING Before cleaning, make sure to switch off the dryer and disconnect it from the power mains (unplug the power cord from the outlet). The dryer is fitted with a filtering system consisting of several filters that prevent any impurities from entering the heat exchanger system.
Page 47: Cleaning The Net Filter In The Door
CLEANING THE NET FILTER IN THE DOOR Clean the net filter after each drying cycle. Open the filter housing. Pull out the net filter. Gently scrape the filter to remove the lint, i.e. the lining of fibres and threads, with your hand or with a cloth.
Page 48: Cleaning The Heat Pump Filter
CLEANING THE HEAT PUMP FILTER During cleaning, some water may be spilled. It is therefore recommended to place an absorbent cloth on the floor. Open the outer cover. Hold the levers on the inside cover and rotate them upwards. Remove the inside cover.
Page 49: Cleaning Of The Heat Exchanger
CLEANING OF THE HEAT EXCHANGER Do not touch the inner metal parts of the heat exchanger with bare hands. Danger of injury on sharp parts. Use appropriate protection gloves when cleaning the heat exchanger. Incorrect cleaning of the metal fins of the heat exchanger can permanently damage the tumble dryer.
Page 50: Emptying The Condensate Tank
EMPTYING THE CONDENSATE TANK Empty the condensate tank after each drying cycle. If the condensate tank is full, the drying programme will be paused automatically. Symbol (8) will light up on the display unit, indicating that the condensate tank should be emptied.
Page 51: Cleaning The Dryer
CLEANING THE DRYER Always disconnect the dryer from the power mains before cleaning. Clean the dryer exterior using a soft damp cotton cloth. Do not use any solvents or cleaning agents that could damage the dryer (please observe the recommendations and warnings provided by the manufacturers of the cleaning agents). Wipe all parts of the dryer with a soft cloth until dry.
Page 52: Troubleshooting
TROUBLESHOOTING WHAT TO DO ...? Disturbances from the environment (e.g. the power grid) may result in various error reports (see TROUBLESHOOTING TABLE). In such case: • Switch off the dryer and wait at least one minute. • Switch on the dryer and repeat the drying programme. •...
Page 53: Troubleshooting Table
TROUBLESHOOTING TABLE Problem/error Cause What to do? The machine will not • The main switch is not • Check whether the main switch is on. start. switched on. • There is no voltage in the • Check the fuse. power outlet. •...
Page 54 Problem/error Cause What to do? Laundry not dried • Filters are not clean. • Clean the filters (see chapter or drying takes too »CLEANING AND MAINTENANCE«). long • Dryer is placed in a closed • Make sure there is adequate supply of room;...
Page 55 Problem/error Indication on the display unit What to do? and description of error System overheating Clean the filter. See chapter »CLEANING AND MAINTENANCE/Cleaning the net filter in the door« or call a service technician. E6, E7, E8 Control unit failure Disconnect the tumble dryer from the power supply.
Page 56: Servicing
SERVICING Before calling a service technician When you contact a service centre, please state your dryer's type (1), code/ID (2), model number (3), and serial number (4). Type, code/ID, model, and serial number are indicated on the rating (type) plate located on the front side of the dryer door opening.
Page 57: Tips For Drying And Economic Use Your Dryer
TIPS FOR DRYING AND ECONOMIC USE YOUR DRYER The most economical way of drying is to dry the recommended amount of laundry in each batch (see PROGRAMME TABLE). Drying laundry made of particularly delicate fabrics that may be deformed is not recommended. Use of conditioner in the washing cycle is not necessary as the laundry is soft and smooth after drying in the dryer.
Page 58: Disposal
DISPOSAL Packaging is made of environmentally friendly materials that can be recycled, disposed of, or destroyed without any hazard to the environment. To this end, packaging materials are labelled appropriately. The symbol on the product or its packaging indicates that the product should not be treated as normal household waste.
Page 59 LOW STANDBY MODE If you do not run a programme or do anything else after switching on the dryer, the dryer will switch off automatically after 5 minutes to save energy. Indicator light on the (3) START/PAUSE button will flash. The display will be reactivated if you rotate the programme selector knob or press the (1) ON/ OFF button or open the dryer door.
Page 60 SP15 L1 ADVANCED HP ND USA en (05-21)
