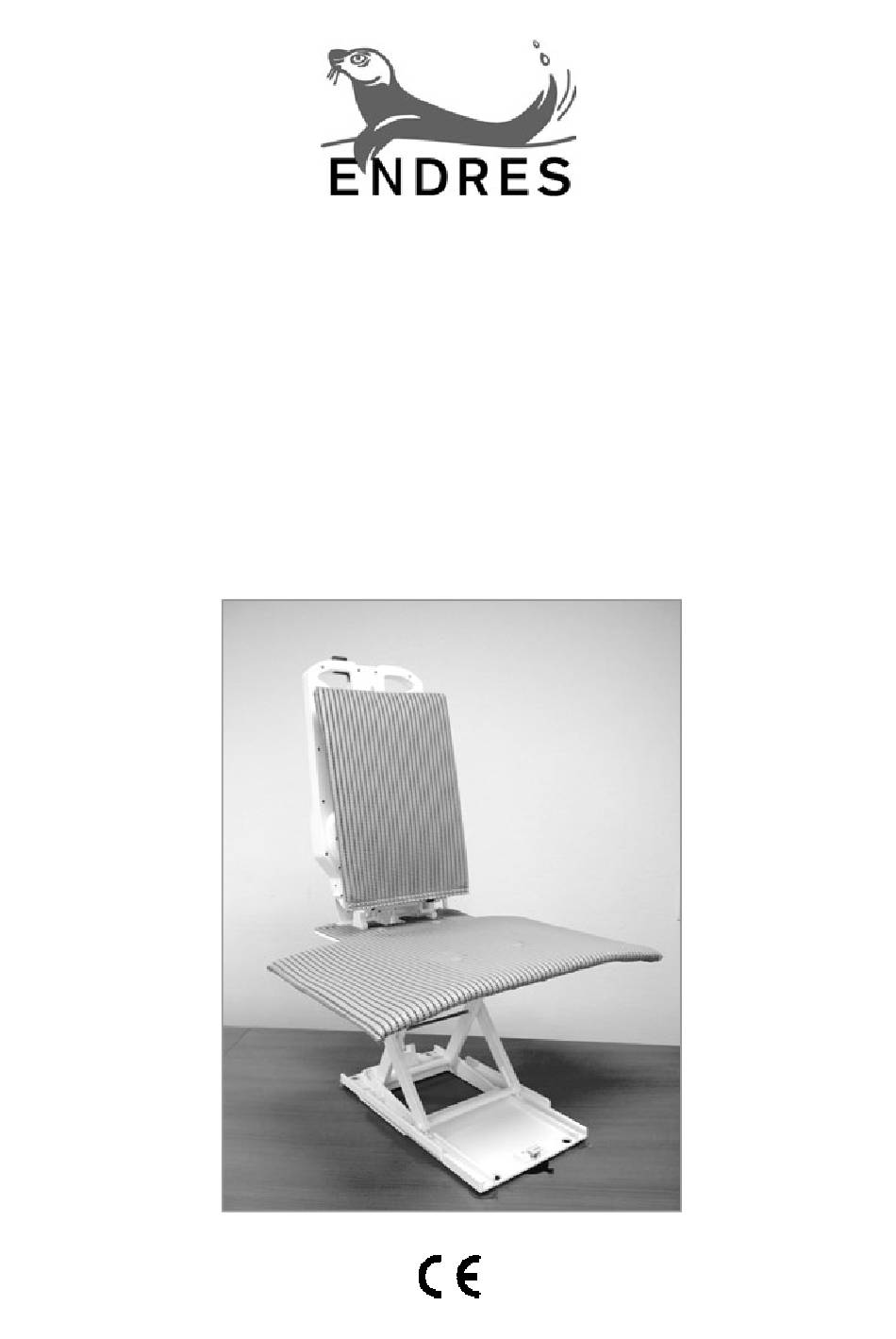

- Page 1 Operating Instructions ® AKKULIFT - Bathlift STANDARD ® AKKULIFT - Bathlift FELIX ® AKKULIFT - Bathlift FELIX 2 / 2T ® AKKULIFT - Bathlift SOFTLINE...
-
Page 2: Table Of Contents
________________________________________________________________________________________ Content ® AKKULIFT - Product Description....................3 For Your Own Safety........................4 Important Information ........................4 Important Safety Regulations ....................... 5 Installation and Use........................6 Unpacking ............................ 6 Instructions for use of side flap protectors for bathlifts..............6 ® Inserting the AKKULIFT into the Bathtub .................. -
Page 3: Akkulift ® - Product Description
AKKULIFT - Product Description ® Many thanks for deciding for AKKULIFT , designed by Peter Endres GmbH & Co. KG. This sturdy, high-quality product will simplify getting in and out of the bath from now on. ® AKKULIFT mainly consists of high-quality, recyclable light-weight plastic. -
Page 4: For Your Own Safety
· Repairs must only be undertaken by authorised specialists or the manufacturer. Further information, e.g. the circuit diagram, is available from the authorised specialists at Peter Endres GmbH & Co. KG. On non-compliance, any guarantee claims will become invalid. For further information please read the supplement. -
Page 5: Important Safety Regulations
________________________________________________________________________________________ ® · The battery has to be charged before the first use of AKKULIFT and should be charged after each use! ® · Only use the storage battery supplied with AKKULIFT to operate it. · The contacts of the storage battery must not come into contact with metal parts (danger of exploding or catching fire). -
Page 6: Installation And Use
________________________________________________________________________________________ Installation and Use Unpacking Please check the shipping carton for completeness. The carton should contain the following parts: 1. Backrest with drive and manual control unit 2. Collapsible frame with base-plate incl. central suction cup (black) 3. Charging unit 4. -
Page 7: Inserting The Akkulift ® Into The Bathtub
________________________________________________________________________________________ ® Inserting the AKKULIFT into the Bathtub 1. Make sure that the bottom of the empty bathtub is clean. Remove any non-slip mats from the bathtub. 2. Insert the seat frame into the empty bathtub. The rear suction cups should be located at the bevelled edge of the bathtub. - Page 8 ________________________________________________________________________________________ 7. Make sure that the unlock ramp is in its correct position (see Figure 4+5). Figure 4 Figure 5 8. Insert the storage battery in the battery compartment (Figure 6). Note: If the bathtub wall on the side of backrest vertical and,...
-
Page 9: Operating The Akkulift ® In The Bath
________________________________________________________________________________________ ® Operating the AKKULIFT in the bath ® 1. Before starting up your AKKULIFT , make sure that the battery is inserted in the battery compartment and the manual control is correctly connected (plug-type connection – see figure 7). Press the ON-button at the manual control. -
Page 10: Manual Control
________________________________________________________________________________________ Manual Control The capacity of a fully charged storage battery is according to the user’s weight maximal 20 baths. During these baths, the green control lamp of the manual control is illuminated. As soon as the charging level of the storage battery falls to factory-defined value, the colour of the control lamp changes to yellow, and the lamp flashes slowly, which means that there is only sufficient power for one more bath. -
Page 11: Removing The Lift From The Bathtub
________________________________________________________________________________________ Removing the lift from the bathtub ® Using the manual control, first drive AKKULIFT to its lowest position. Tilt back the backrest until the drive stops automatically in its end position. Make sure that the backrest does not push against the wall of the bathtub. Then remove the battery from the battery compartment. - Page 12 ________________________________________________________________________________________ 3. The backrest can now be removed from the frame in the direction of the arrow shown in Figure 11. Note: The backrest cannot be removed from the frame when it is completely folded down to the seat, because the backrest is then in a locked position again! 4.
-
Page 13: Maintenance And Care
________________________________________________________________________________________ Maintenance and Care ® Maintenance of the AKKULIFT ® AKKULIFT is equipped with bearings and running surfaces which are completely maintenance-free and do not require any lubrication. However, the lift should be cleaned thoroughly under the shower after each bath. To clean the bathlift without covers either use disinfectant or bathroom cleaner (e.g. -
Page 14: Maintenance Of Akkulift ® Felix / Felix 2/2T
________________________________________________________________________________________ Taking care of your covers requires frequent cleaning, either by hand or washing machine - they can be machine-washed up to 60°C using a non-bio washing powder which does not contain any enzymes. Please be aware any oil based products, which you add to your bath water may stain the covers, failure to undertake regular cleaning of your covers will cause your covers to discolour. -
Page 15: Assembly Of New Cushion Plugs For Akkulift ® Felix
________________________________________________________________________________________ ® Assembly of new cushion plugs for AKKULIFT FELIX Lead the new plug through the opening of the cushion (from top to bottom) and press it into the washer at the underside of the cushion (see Figure 18). Figure 18 Please observe the following instructions for mobile use of the device: 1. - Page 16 ________________________________________________________________________________________ Maintenance of the Charging Unit The charging unit does not require any maintenance. The housing must only be cleaned with mild detergents, which are free from solvents, or by means of a damp cloth. Make sure that no liquid penetrates the charging unit. Before starting up the charging unit again, always make sure that the unit is completely dry.
-
Page 17: Charging Of 12-Volt Storage Battery (To Be Connected Directly To The Charger)
________________________________________________________________________________________ Charging of 12-Volt Storage Battery (to be connected directly to the charger) Due to technical changes and improvements please read the enclosed instructions for the battery charger thoroughly before use! 1. Connect the 3,5 mm phone plug to the associated socket of the battery (Figure 21). -
Page 18: Supplement
________________________________________________________________________________________ Supplement Technical Data ® AKKULIFT Overall length (backrest in reclined position) 860 mm Overall width (seat incl. side flaps) 700 mm Width of seat 370 mm Depth of seat 450 mm Overall length of seat 580 mm Sitting height min. approx. -
Page 19: Troubleshooting
________________________________________________________________________________________ Troubleshooting Error Possible Cause Remedy Lift does not work No storage battery in the Insert storage battery into the battery compartment battery compartment Storage battery is empty Charge the storage battery Contacts are contaminated Remove the storage battery; clean the contacts with a dry cloth, and insert the storage battery again. -
Page 20: Disposal
________________________________________________________________________________________ Disposal ® At the end of the product life, all components of the AKKULIFT and storage battery should be disposed of in an appropriate manner. Please separate the different materials carefully in accordance with the material designation shown on the individual components. ®... -
Page 21: Spare Parts And Accessories For Akkulift
________________________________________________________________________________________ ® Spare Parts and Accessories for AKKULIFT The correct order numbers of original spare parts and accessories are given in the table below. Article Order Number Seat and backrest covers ® Seat cover for AKKULIFT STANDARD, white 411 252 ®... -
Page 22: Explanation Of Symbols
________________________________________________________________________________________ Explanation of symbols CE label Alternating current Direct current Protection Class II Type B Medical instrument Type Labels Seat and backrest The type label of the seat is provided underneath the seat; the type label of the backrest is provided at the rear side, next to the drive unit. -
Page 23: Index - In Alphabetical Order
________________________________________________________________________________________ Index - in Alphabetical Order Accessories ............................ 21 Addresses ............................24 ® AKKULIFT - Product Description ....................3 Backrest ............................13 Bathtub............................. 7 Blue key ............................9 Charging of 12-Volt Storage Battery (to be connected directly to the charger) ....... 17 Charging Unit ........................... -
Page 24: Addresses
+49 7562 - 972425 +44 161 9620444 Internet www.endres-rehab.de Internet: www.endresuk.co.uk E-mail info@endres-rehab.de Please enter your specialist dealer’s address: Art. No. WBAAK0020 · As of: 12/2005 Ó Copyright 2005 by Peter Endres GmbH & Co. KG · 88316 Isny/Allgäu (Germany) 24 of 24...
