Summary of Contents for MIXER MIX'AIR 150 TH-V

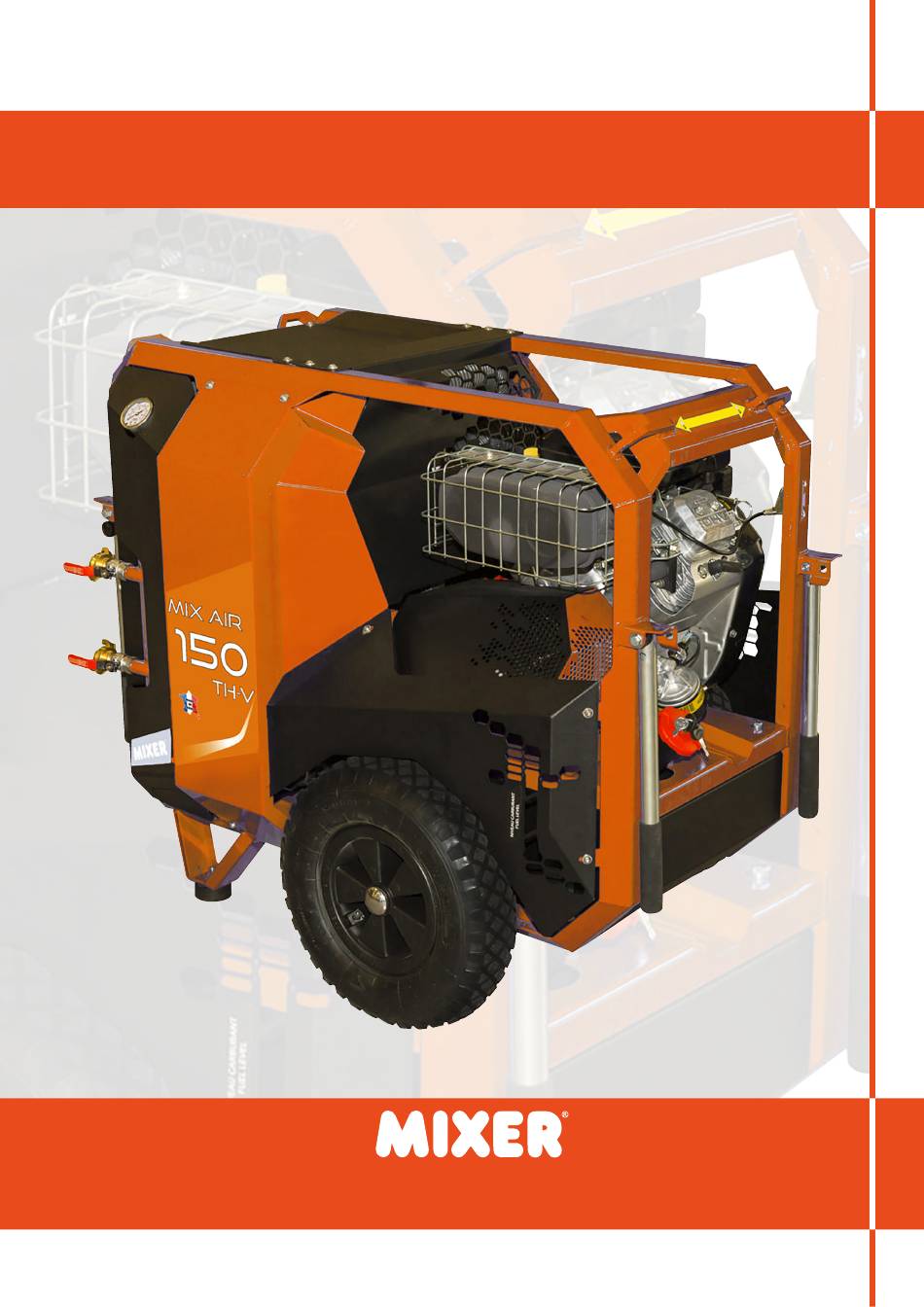

- Page 1 User manual MIX’AIR 150 TH-V Réf. 3B02803000 MIXER TECHNOLOGY SRL - Via dei Carabinieri, 44/45, 36040 Torri di Quartesolo, (VI) ITALIA Tel. +39 0444 583599 - Fax +39 0444 583559 - P .I. 03725830248 Edition of 16/02/2023 More information on www.mixersrl.com...
-
Page 2: Table Of Contents
SUMMARY just acquired of our machines and all the team of Mixer thanks confidence 1. USER MANUAL ............. p. 3 have granted 1.1. Importance of the manual .........p. 3 Manufacturer of professional 1.2. Receivers of the manual ..........p. 3 equipments for paint and... -
Page 3: User Manual
1. USER MANUAL 1.1. IMPORTANCE OF THE MANUAL This manual is a key part for the use of your machine. It summarizes the procedures of starting-up, cleaning and maintenance of the device and also the safety instructions you need to observe. Read carefully all the working and safety instructions and the warnings included in this manual before starting your machine. -
Page 4: Warning
2. WARNING 2.1. SAFETY Using the machine in an incorrect way or in non-compliance of the safety instructions indicated in this manual can cause death or serious injuries. Read carefully all the working and safety instructions and the warnings contained in this manual before starting your machine. - Page 5 2. WARNING (continued) 2.1. SAFETY (continued) WORKSPACE • Maintain the workspace clean and clear. • Ambient operating temperature must be from 5°C and 35°C. • Do not use the equipment in a potentially explosive area. • Do not place any potentially inflammable objects in close proximity to the machine. •...
-
Page 6: Fuel Recommendations
2. WARNING (continued) 2.2. FUEL RECOMMENDATIONS The fuel must comply the following criteria: - Unleaded, clean and fresh petrol. - Minimum octane rating of 87/87 AKI (91 RON). For use at high altitudes, see below. - Gasoline containing up to 10% ethanol (carburol) is acceptable. NOTICE Do not use unapproved gasoline such as E15 or E85. -
Page 7: Your Machine
3. YOUR MACHINE 3.1. DESCRIPTION MIX’AIR 150TH-V is a powerful screw compressor designed for intensive use on all types of jobs. Equipped with a petrol engine, it operates with unleaded fuel. Its ergonomic design, its 4 folding arms and its 4 slinging points make it a practical compressor to use and transport, without removing anything of its power. -
Page 8: Identification Of The Components
3. YOUR MACHINE (continued) 3.3. IDENTIFICATION OF THE COMPONENTS Compression head Air filter Oil tank cap for compression head Oil level eye for compression head Tank pressure manometer Fuel tank Air outlet connections Engine Slinging points User manual - MIX’AIR 150TH-V 202111-549B-ENG... - Page 9 3. YOUR MACHINE (continued) 3.3. IDENTIFICATION OF THE COMPONENTS (continued) Starter Launcher Engine start key Engine oil level gauge Engine oil filling cap Engine accelerator 202111-549B-ENG User manual - MIX’AIR 150TH-V...
-
Page 10: Compressor Handling, Docking And Lifting
3. YOUR MACHINE (continued) 3.4. COMPRESSOR HANDLING, DOCKING AND LIFTING Lifting points Docking points TABLE DE REVISIONS A REMPLIR AU DOS User manual - MIX’AIR 150TH-V 202111-549B-ENG... -
Page 11: Use Of The Machine
4. USE OF THE MACHINE 4.1. PREREQUISITES • Before each use of the compressor, check the fuel level in the tank (F) and refill if necessary. • Check the oil level in the engine using the dipstick (M). If necessary, fill with 15W40 oil until the MAX level is reached. •... -
Page 12: Defects And Remedies
5. DEFECTS AND REMEDIES Defects Causes Remedies • Replace the filters. • Screw back in or replace • Clogged filter. • Compressor doesn't gain purge. • Drain open. pressure. • Check for leaks. • Air leakage. • Contact After-Sales Service. •... -
Page 13: Air Circuit Maintenance
6. AIR CIRCUIT MAINTENANCE 6.1. EVERY 500 WORKING HOURS Replacing air filter Unclip the air filter (B) and replace it. Belt tension Check the belt tension using a measuring device. During installation and maintenance, it is recommended that the unit be rotated 3 times without load so that the belts have an even fit. The tension should be checked after 3 to 5 minutes of operation and readjusted to the correct value if necessary. - Page 14 User manual - MIX’AIR 150TH-V 202111-549B-ENG...
-
Page 15: Declaration Of Conformity
ROUSSET, JANUARY 20th 2022 Patrick BOREL President MIXER TECHNOLOGY SRL - Via dei Carabinieri, 44/45, 36040 Torri di Quartesolo, (VI) ITALIA Tel. +39 0444 583599 - Fax +39 0444 583559 - P .I. 03725830248 202111-549B-ENG User manual - MIX’AIR 150TH-V... -
Page 16: Warranty Conditions
9. WARRANTY CONDITIONS Each equipment is delivered inspected and tested. We exclude any warranty for visible defects, not notified by the customer within 48 hours. The equipment sold is guaranteed during the manufacturer’s warranty from the date of purchase, as specified on the original proof of purchase, and under the conditions defined by the manufacturer. - Page 17 In this case, the request must be addressed directly to the manufacturer of the component or to its nearest authorised representative. The Euromair, Euromair MPC or Mixer service centres may be considered as the manufacturer’s representatives if they are the closest. As this principle also applies to batteries, our supplier Parts Holding Europe, or one of its sister companies, remains your contact for your requests (https://www.
- Page 18 User manual - MIX’AIR 150TH-V 202111-549B-ENG...
- Page 19 202111-549B-ENG User manual - MIX’AIR 150TH-V...
- Page 20 MIXER TECHNOLOGY SRL - Via dei Carabinieri, 44/45, 36040 Torri di Quartesolo, (VI) ITALIA Tel. +39 0444 583599 - Fax +39 0444 583559 - P .I. 03725830248 More information on www.mixersrl.com User manual - MIX’AIR 150TH-V 202111-549B-ENG...
