Ares 10020 Operation Manual

6" STAINLESS STEEL DIGITAL CALIPER
WARRANTY
You are backed by the ARES Tool Performance Assurance!
ARES TOOL warrants this product to be free from defects and deficiencies in materials and
workmanship under normal use and service. A defective product may be returned for a free
replacement within 2 Years from the date of purchase, provided that product is returned
immediately after discovery of defect. This warranty shall be valid only when proof of purchase
(receipt) showing the date of purchase accompanies the defective product.
Exclusions:
This warranty excludes blades, bits, bit sockets, carrying cases, pouches, torque products,
punches, dies, bulbs, fuses, batteries, and other consumables which must be replaced under
normal use and service. This WARRANTY does not cover products which in ARES Tool's
judgement have been subject to negligence, misuse, abuse, accident, improper storage,
alteration, improper repair, disassembly and/or reassembly. Normal wear and tear are also
excluded.
These warranties set forth herein are the sole warranties applicable to Products and is in lieu of
all other warranties, whether expressed, implied or statutory. The implied warranties of
merchantability and fitness for a particular purpose are specifically excluded.
Customer's sole and exclusive remedy for breach of this Warranty is, at the option of ARES
TOOL, repair or replacement of the defective product.
WARNING:
Cancer and Reproductive Harm-
www.p65Warnings.ca.gov
G3 MADE IN CHINA
HECHO EN CHINA
FABRIQUÉ À CHINA
PERFORMANCE ASSURANCE
ALWAYS WEAR EYE
2
YEAR
PROTECTION THAT COMPLIES
Warranty
WITH ANSI STANDARD
10020
6" STAINLESS STEEL DIGITAL CALIPER
Measurement Range
Resolution
Battery Specification
Operating Temperature Range
Storage Temperature Range
Screen Size
3
2
1
8.0
0 10 20 30 40
1
5

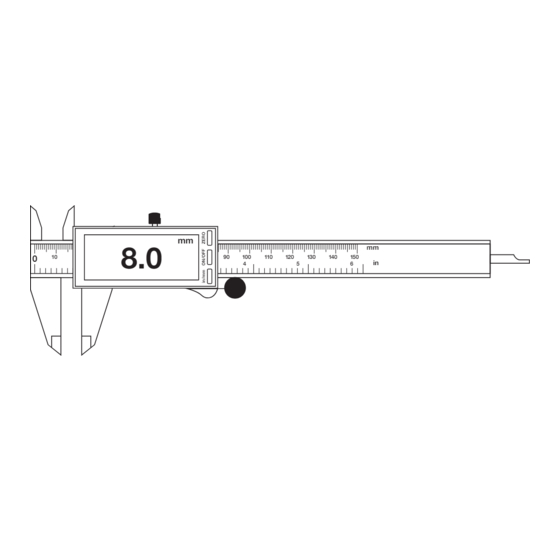

1. Step Measuring Face
2. Internal Jaws
3. Display Housing
4. LCD Display
5. External Measuring Jaws
6. Slider locking knob
For Battery removal and replacement flip calipers over LCD screen side facing down
to access battery panel.
battery
mm
8.0
0
10 20 30 40 50 60 70 80 90 100
1 2 3 4
4
STORE THIS MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE
OPERATIONS MANUAL
0.00" – 6.0" (0.0mm – 150mm)
0.0005" / 0.01mm
1x CR2032 3v Coin Battery
32 – 104°F (0 – 40°C)
-4 – 158°F (-20 – 70°C)
1.85" x 0.80"
6
4
10
8
11
mm
50 60 70 80 90 100 110 120 130 140 150
2 3 4 5 6
9
12
7. Depth Measuring Probe
8. Power on/off Button
9. Units Inch / MM / Fraction Button
10. Zero Setting / Rest Button
11. Scale
12. Slider adjustment knob
mm
110 120 130 140 150
in
5 6
10020
mm
in
7
