Summary of Contents for Roberts Zoombox 4

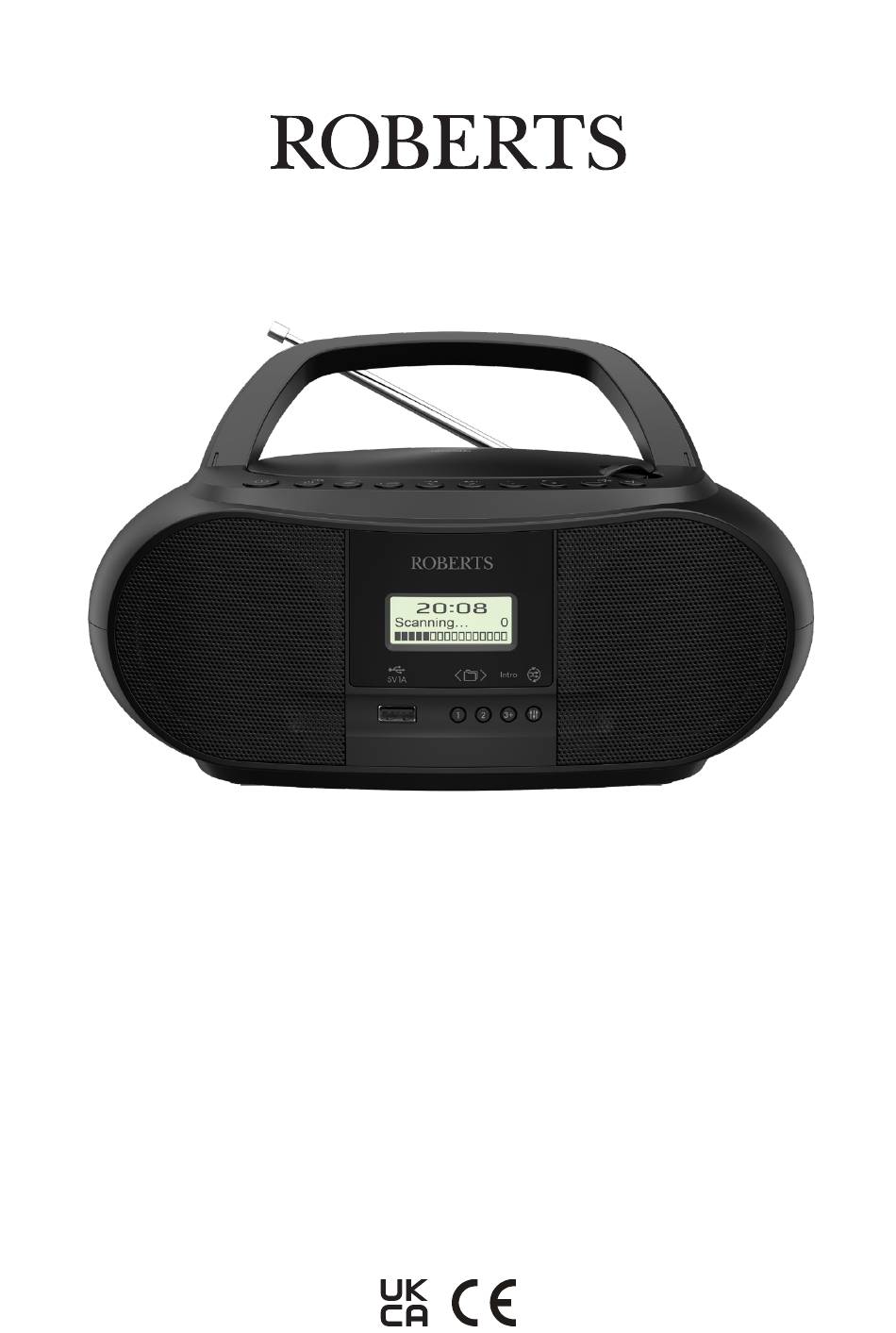

- Page 1 Zoombox 4 ® CD Radio Bluetooth Boombox USER'S GUIDE...
-
Page 2: Safety Precautions
Safety Precautions − Read all the instructions carefully before using the unit and keep them for future reference. − Check that the voltage marked on the rating label matches your mains voltage. − The unit must be placed on a flat stable surface and should not be subjected to vibrations. −... - Page 3 Mains Cable 1. Make sure the unit is not resting on top of the mains cable, as the weight of the unit may damage the mains cable and create a safety hazard. 2. If the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
-
Page 4: Product Overview
Product Overview Top View 7. Tuning / Skip Button 1. Handle 2. Standby / Sleep Button 8. Enter / Stop Button 3. Mode / Clock Button 9. Pair / Play Pause Button 4. Dimmer / Timer Button 10. Volume - Button 5. -
Page 5: Right View
Right View 20. Aux In Socket 21. Earphone Jack Rear View 22. Rod Antenna 24. Power supply 23. Battery Compartment Unpacking Remove all items from the packaging. Retain the packaging. If you dispose of it, please do so according to local regulations. The following items are included: Main Unit Cable... -
Page 6: Power Source
Power Source Mains Power − Unwind the mains cable to its full length. Connect the end of the mains cable to the AC IN ~ Socket at the rear of the unit and then connect the another end to a mains outlet. Make sure the mains plug is firmly inserted into the mains socket. -
Page 7: System Settings
System Settings Time Setting Auto setting the clock − The clock can be updated automatically if you can receive a DAB signal in your location. In order to synchronize to the current local time you must leave it on the DAB station for a short period of time. -
Page 8: Factory Reset
Factory Reset There may be times when you need to reset your unit back to the factory setting especially when you have moved house. If you experience reception problems you may want to reset and try again. If you move to another part of country and pick up the local and national DAB stations in that area, your previously tuned channels may no longer be available. -
Page 9: Manual Tune
Manual Tune As well as the normal method of scanning, you can also manually tune to a particular channel / frequency. This can be useful for adjusting your antenna to achieve the best possible reception and scanning a particular channel to update the station list. buttons to select <Manual Tune>. -
Page 10: Dab Display Modes
DAB display modes Press the button, and the display will switch through the following display modes. The information of each display mode is displayed on the lower segment of the display. Signal Strength The display will show a slide bar to indicate the signal strength, the stronger the signal, the longer the bar will be from left to right. -
Page 11: Manual Scan
Auto Scan To scan up/down the frequency band, press and hold the buttons. Once a station has been found, the scanning will stop automatically. The search may not stop at a station with a very weak signal. Manual Scan To search for FM stations manually,press the buttons repeatedly until your desired frequency is reached. -
Page 12: Skipping To Another Track
Storing a new station into a preset location will erase the previously stored station in that location. FM display modes Press button, the display will switch through the following display modes. The information of each display mode is displayed on the lower segment of the display. Radio Text As with DAB, the broadcaster can include a scrolling text that displays information about the current program. -
Page 13: Usb Operation
Repeat and Random playback button once, "Rep One" will show on the display. The CD will 1. During playback mode,press the play the current track repeatedly. button again, "Rep All" will show on the display. The CD will play all tracks repeatedly. 2. -
Page 14: Bluetooth Operation
Compatibility with all devices and media types is not guaranteed. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Roberts Radio is under license. Other trademarks and trade names are those of their respective owners. - Page 15 Sleep Press and hold the button, then press buttons to select the sleep delay time in minutes. The number of minutes shown will display in sequence: Press button to confirm the selection. Once you select a sleep delay period, the screen will display " "icon to indicate that the sleep function is activated.
-
Page 16: Maintenance
• Storing discs vertically in a case, stacking discs or placing objects on discs outside of their cases may cause warping. Specifications Model Zoombox 4 Power Supply AC 100-240V ~50/60Hz, 18W Battery DC 1.5V R14/C size x 6 Bluetooth version V5.0...
