Axi BA 1855 Quick Start Manual

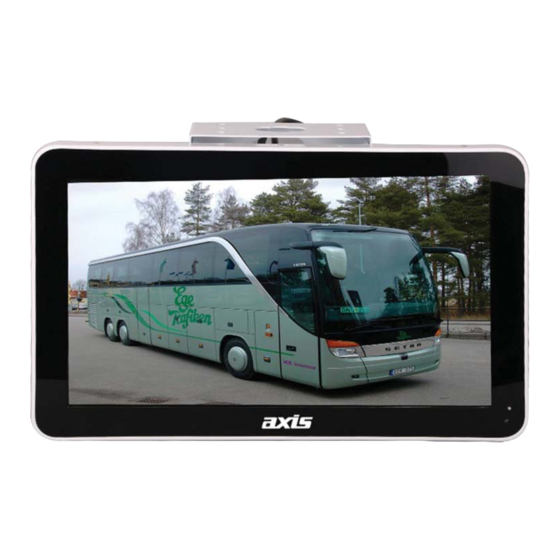

18.5” fixed hd bus monitor

Table of Contents

Download this manual

BA 1855

18.5" FIXED HD BUS MONITOR

SPECIFICATIONS

GENERAL

- Screen:

- Format:

- Resolution:

- Viewing Angle:

- Video System:

- Image Adjustment:

- Mounting:

- Inputs:

- Housing:

- Power Supply:

- Dimensions:

- Included:

INSTRUCTION MANUAL

18.5" (47cm)

16:9 Widescreen

1366 x 768 HD

Supports 1080p

85° (L/R) 75/85° (U/D)

PAL/NTSC Auto Switchable

Brightness/Colour/Contrast/Saturation

Fixed - Wall or Roof

HDMI, 2 x RCA Video

Robust Coated Metal

12/24 Volt DC (9-36V)

500(W) x 325(H) x 50(D)

Note: Battery NOT included

Table of Contents

Do you have a question about the BA 1855 and is the answer not in the manual?

Page 1 BA 1855 18.5” FIXED HD BUS MONITOR SPECIFICATIONS GENERAL - Screen: 18.5” (47cm) - Format: 16:9 Widescreen - Resolution: 1366 x 768 HD Supports 1080p - Viewing Angle: 85° (L/R) 75/85° (U/D) - Video System: PAL/NTSC Auto Switchable - Image Adjustment:...
Page 2 INSTRUCTIONS AND PRECAUTIONS: Voltage input: 12v-24v. Do not connect to 240v. Keep away from water and damp areas. Danger high voltage inside! Do not open housing. Installation position must be strong enough to use the monitor in all driving conditions. Keep away from the direct sunlight and other heat sources.
Page 3 Please refer the below figure before wiring: (See figure 2 Power Wiring: This product can be used with DC12V-24V. Connect the power cable (Red) to the vehicle’s positive power and earth cable (Black) to negative (See figure 2). RCA Video input signal wiring: Connect the video cable from video source to the monitor’s video input jack.| (See figure 2).
Page 4 WARRANTY Congratulations on your purchase of a quality Mobile Entertianment System! You’re joining thousands of satisfied customers who enjoy & experience the benefits of the products we distribute. In the unlikely event that some technical difficulty arises with your purchase, be assured that we are most anxious to see that the problem is quickly rectified to your satisfaction.
