Summary of Contents for Autojack XP Series

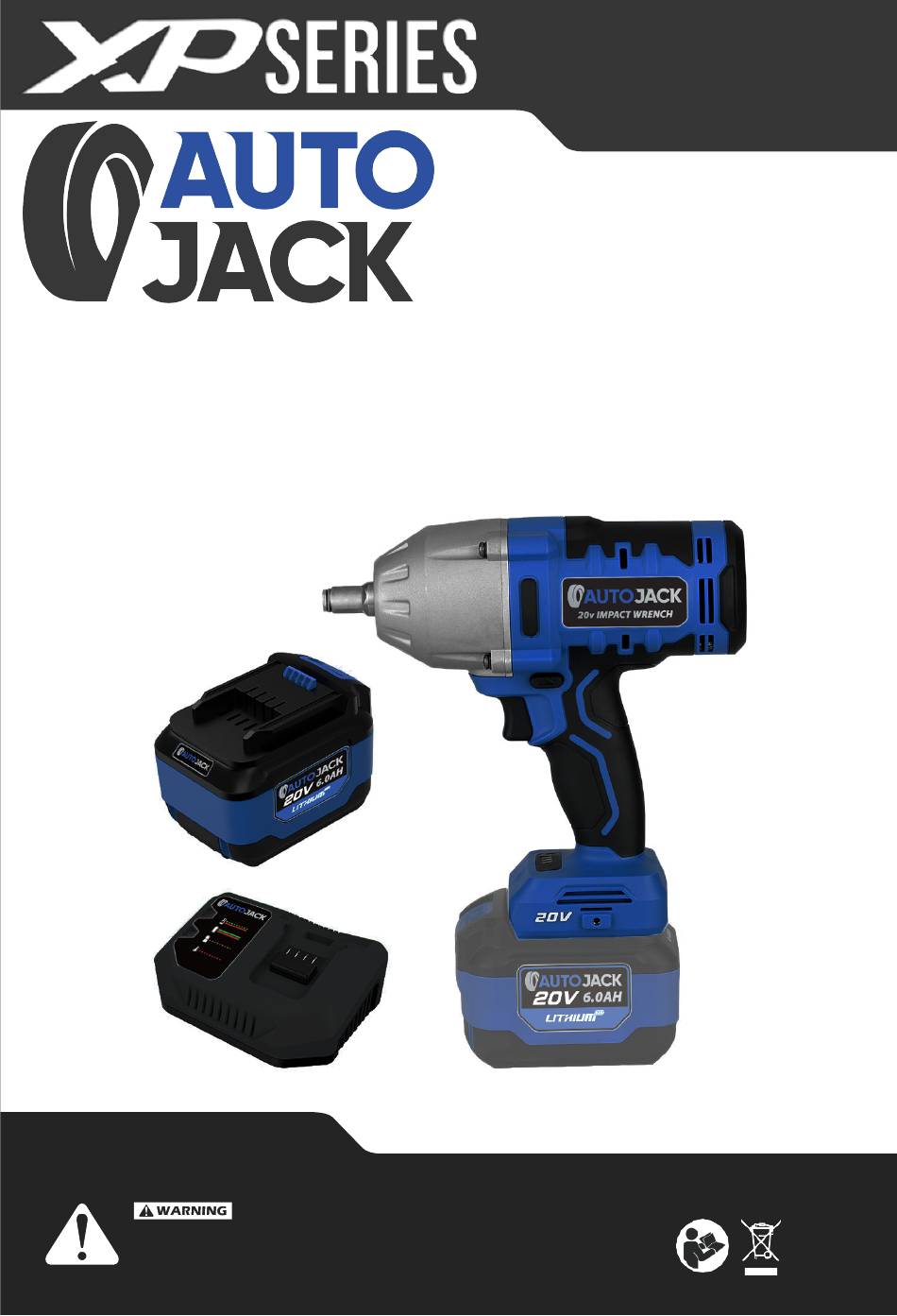

- Page 1 AIW1000 Original Manual Brushless Impact Wrench Read this manual before using this product. Failure to do so can result in serious injury. SAVE THIS MANUAL.
- Page 2 Impact Wrench Owner’s Manual & Safety Instructions INDEX 1 - 3. Power Tool & Personal Safety Symbols & Technical Includes 6 - 7. Operation Maintenance & Service Declaration...
- Page 3 Impact Wrench Owner’s Manual & Safety Instructions General Power Tool Safety Warnings : Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term ″...
- Page 4 Impact Wrench Owner’s Manual & Safety Instructions :The term residual current device (RCD) may be replaced by the term ground fault circuit interrupter (GFCI) or earth leakage circuit breaker (ELCB). Personal Safety a. Stay alert, watch what you are doing and use common sense when operating a power tool.
- Page 5 Impact Wrench Owner’s Manual & Safety Instructions power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d. Store idle power tools out of the reach of children and do not allow persons un- familiar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
-
Page 6: Technical Data
Impact Wrench Owner’s Manual & Safety Instructions Service Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. 6. Symbols a. Some of the following symbols may appear on this product. Study these symbols and learn their meanings. - Page 7 Impact Wrench Owner’s Manual & Safety Instructions Includes: 1. Handle 2. Belt Clip 3. Battery 4. Battery Unlocking Button 5. Rotational d i rection switch 6. 0n / Off switch 7 . Work light 8. Torque Button...
-
Page 8: Operation
8) Red and green lights flicker alternately, the charger is not work INSERTING THE BATTERY WARNING: Use only Autojack lithium-ion batteries with the voltage listed on the nameplate of your power tool. Using other batteries can lead to injuries and pose a fire hazard. -
Page 9: Torque Adjustment
Impact Wrench Owner’s Manual & Safety Instructions WORK LIGHT INDICATOR The work light indicator is lit when the trigger switch is pressed. It allows for illumination of the work area under unfavorable lighting conditions. TORQUE ADJUSTMENT a.First setting: Light operation b.Second setting: Moderate power to avoid damage to the workpiece c.Third setting: Release Max Torque and power d.Fourth setting: Reverse self stop to prevent nut loosening and falling... -
Page 10: Maintenance
Impact Wrench Owner’s Manual & Safety Instructions Maintenance: WARNING: Before any work on the machine itself, remove the ba�ery pack from the drill. 1.Inspect bolts periodically. If the bolts loosen, �ghten them immediately, or will result in serious accident. 2.Inspect tool cords periodically. If damaged, have repaired at your nearest Authorised Service Center. -
Page 11: Ce Declaration Of Conformity
Impact Wrench Owner’s Manual & Safety Instructions CE DECLARATION OF CONFORMITY TOOLSAVE Unit C, Manders Ind. Est., Old Heath Road, Wolverhampton, WV1 2RP. Tel: 01902 450 470 Declares that the Impact Wrench (AIW1000) Is in co mpliance with the regulations included in the Directives:2006/42/EC EC DECLARATION OF CONFORMITY Certifica te for EC-type examination delivered by Intertek Testing Services... - Page 12 Impact Wrench Owner’s Manual & Safety Instructions...
- Page 13 UNIT C MANDERS INDUSTRIAL ESTATE, OLD HEATH ROAD, WOLVERHAMPTON www.Autojacktools.co.uk...
