1 : 3W Audio AMP Output Wafer
Pin Signal Name
1 SPK L-
2 SPK L+
3 SPK R+
4 SPK R-
2 : PCIE_ISOLATION1
* Connect to PCIE_ISOLATION_1 header on VGA-PWR card.
Pin Signal Name
1 PSON#
2 GND

3 : Front Panel Audio Header

Pin Signal Name Signal Name Pin
1 MIC1_L AGND_A 2
3 MIC1_R N/A 4
5 LINE2_R_OUT MIC1_JD 6
7 AGND_A 8
9 LINE2_L_OUT LINE2_JD 10
4 : DACC1
Open : No ACC
Short : ACC (Default)
* Auto clear CMOS when system boot improperly.

5 : Chassis Intrusion Headers (CI1, CI2)

CI1 :
Open : Normal (Default)
Short : Active Case Open
CI2 :
Open : Active Case Open
Short : Normal (Default)

6 : ATX/AT Mode Jumper (SIO_AT1)

Open : ATX Mode (Default)
Short : AT Mode

7 : Clear CMOS Headers

CLRMOS1 :
1-2 : Normal (Default)
2-3 : Clear CMOS
CLRMOS2 :
Open : Normal (Default)
Short : Auto Clear CMOS (Power Off)

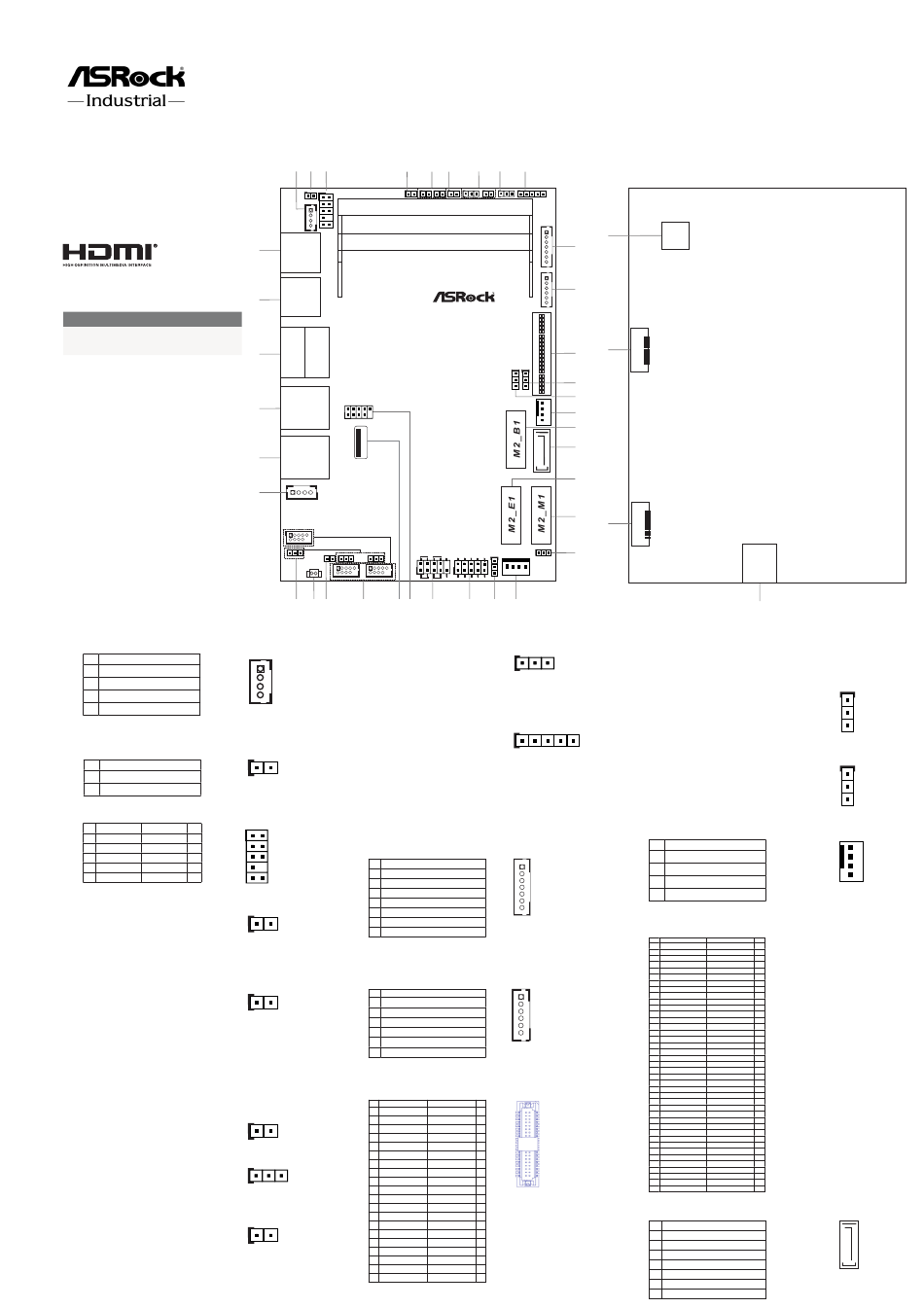

Jumpers and Headers Setting Guide

Top:
1 2 3 4
DACC1
PCIE_ISOLATION1
HD_AUDIO1
1
1
1
SPEAKER1
DDR4_A1 (Support DDR4 Only)
1
DDR4_B1 (Support DDR4 Only)
USB 3.2 Gen2
36
T: USB3_1
B: USB3_TC_1
RoHS
USB 3.2 Gen2
35 T: USB3_2
B: USB3_TC_2
34 HDMI DP1
USB2_5_6
LAN1
33
1
LAN2
32
1
USB3_3
DC_IN1
31
1
1
COM1
1 BUZZ2 PWR_COM4 PWR_COM3
PWR_COM1
1 1 1
BAT1 1 1
1
COM4 COM3
27
30 29 28 26 25
8 : CON_LBKLT_CTL Voltage Level
(BLT_PWM2)
1
1-2 : 3V Level (Default)
2-3 : 5V Level
4

9 : Panel Power Select (LCD_VCC)

(PNL_PWR1)
1-2 : +3V (Default)
2-3 : +5V
3-4 : +5V
1 1 2 2
4-5 : +12V
10 : Backlight & Amp Volume Control
1 2
(BLT_VOL1)
Pin
1
9 10
2
3
4 GPIO_BLT_UP
5 GPIO_BLT_DW
6
7
1 1 2 2
11 : Inverter Power Control Wafer
(BLT_PWR1)
Pin
1
2
1 1 2 2
3 CON_LBKLT_CTL
4 CON_LBKLT_EN
5 LCD_BLT_VCC
6 LCD_BLT_VCC

12 : LVDS Panel Connector

Pin Signal Name
39 LCD_BLT_VCC
37 CON_LBKLT_CTL
35 GND
33 LVDS_B_CLK#
1 1 2 2
31 LVDS_B_DATA3
29 DPLVDD_EN
27 LVDS_B_DATA2#
25 LVDS_B_DATA1
23 GND
1 2 3
21 LVDS_B_DATA0#
19 LVDS_A_CLK
17 GND
15 LVDS_A_DATA3#
13 LVDS_A_DATA2
11 GND
9 LVDS_A_DATA1#
1 1 2 2
7 LVDS_A_DATA0
5 N/A
3 +3.3V
1 LCD_VCC
5 6 7 8 9
CI2 CI1 SIO_AT1 CLRMOS1 CLRMOS2 BLT_PWM2 PNL_PWR1
1 1 1 1
1 1 1
BLT_VOL1
1
10
1
SBC-371
11
Industrial
BLT_PWR1
LVDS1
12
BKT_PWR1 BLT_PWM1
1 1
13
1
14
1
CPU_FAN1
15
1
16
17
1
SATA3_1 18
1 1
19
20
PANEL1
1
JGPIO_PWR1
PLED PWRBTN JGPIO1 SATA_PWR1
JGPIO_SET1
1
1 1
1
HDLED RESET
24 23 22 21
1 2 3
1 5
Signal Name
1
N/A
N/A
PWRDN
7
GND
GND
Signal Name
1
GND
GND
6
39 40
Signal Name Pin
LCD_BLT_VCC 40
LCD_BLT_VCC 38
CON_LBKLT_EN 36
LVDS_B_CLK 34
GND 32
LVDS_B_DATA3# 30
LVDS_B_DATA2 28
GND 26
LVDS_B_DATA1# 24
1 2
LVDS_B_DATA0 22
GND 20
LVDS_A_CLK# 18
LVDS_A_DATA3 16
GND 14
LVDS_A_DATA2# 12
LVDS_A_DATA1 10
GND 8
LVDS_A_DATA0# 6
N/A 4
LCD_VCC 2
Bottom:
BIOS
40
ROM
PCIE1
39
1
ESPI1
38
1
SIM1
37

13 : Brightness Control Mode (BLT_PWM1)

1-2 : From eDP PWM to CON_LBKLT_CTL
2-3 : From LVDS PWM to CON_LBKLT_CTL
(Default)
* Please set to 1-2 when adjusting brightness
by Brightness Control bar under OS.
* Please set to 2-3 when adjusting brightness by BLT_VOL1.
14 : Backlight Power Select
(LCD_BLT_VCC) (BKT_PWR1)
1-2 : LCD_BLT_VCC : +5V
2-3 : LCD_BLT_VCC : +12V

15 : 4-Pin CPU FAN Connector (+12V)

Pin Signal Name
1 GND
2 +12V
3 CPU_FAN_SPEED
4 FAN_SPEED_CONTROL

16 : M.2 Key-B Socket (M2_B1)

Pin Signal Name Signal Name PIn
2 +3V_M2B CONFIG_3 1
4 +3V_M2B GND 3
6 Full_Card_Power_Off# GND 5
8 W_DISABLE1_B# LP+4 7
10 WWAN_LED# LP-4 9
GND 11
20 N/C
22 N/C N/C 21
24 N/C WAKE_ON_WAN# 23
26 W_DISABLE2_B# DPR 25
28 N/C GND 27
30 UIM1_RESET USB3_RX4_N 29
32 UIM1_CLK USB3_RX4_P 31
34 UIM1_DATA GND 33
36 +UIM1_PWR USB3_TX4_N 35
38 N/A USB3_TX4_P 37
40 N/A GND 39
42 N/A PERn0/SATA-B+ 41
44 N/C PERp0/SATA-B- 43
46 N/C GND 45
48 N/C PETn0/SATA-A- 47
50 BUF_PLT_RST# PETp0/SATA-A+ 49
52 PCIECLKRQ4# GND 51
54 N/A M2B_CLK4N 53
56 N/A M2B_CLK4P 55
58 N/A GND 57
60 N/C N/C 59
62 N/C N/C 61
64 N/C N/C 63
66 SIM_DETECT_1 N/C 65
68 SUS_CLK BUF_PLT_RST_N 67
70 +3V_M2B CONFIG_1 69
72 +3V_M2B GND 71
74 +3V_M2B GND 73
76 N/C N/C 75
78 N/C N/C 77
N/C 79
17 : SATA3 Connector (SATA3_1)
Pin Signal Name
1 GND
2 SATA-A+
3 SATA-A-
4 GND
5 SATA-B-
6 SATA-B+
7 GND
1
1
2
2
3 3
1
1
2
2
3 3
1
4
7
1
