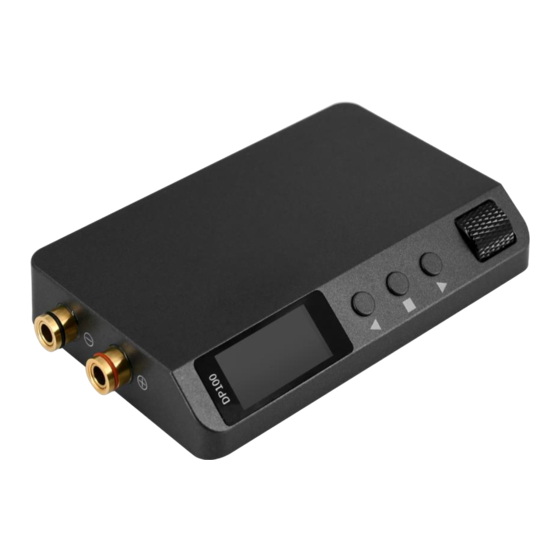

DP100 Digital Power User Manual
User
High Performance Digital Power
Manual
Revision history
Version
V1.0
2022/06/11
V1.1
2022/07/10
V1.2
2023/08/01
Date
First release
Modify some details，Summary of common problems, etc
Add instructions for reverse protection and startup output settings
User Manual
Modify
Advertisement
Table of Contents
Summary of Contents for AlienTek DP100
- Page 1 DP100 Digital Power User Manual User High Performance Digital Power Manual User Manual Revision history Version Date Modify V1.0 2022/06/11 First release V1.1 2022/07/10 Modify some details，Summary of common problems, etc V1.2 2023/08/01 Add instructions for reverse protection and startup output settings...
-
Page 2: Table Of Contents
DP100 Digital Power User Manual High Performance Digital Power Contents Safety Instructions ......................1 1，Product Introduction ....................1 2，Technical Parameter ....................2 3，Packing list ....................... 3 4，Quick Start ....................... 3 4.1 Appearance description ....................... 3 4.2 Main Interface ........................4 4.2.1 Main interface .................... -
Page 3: Safety Instructions
9， Some PD fast charging heads have stricter requirements. If the input capacitor of DP100 is not empty, it will causes a failure of protocol detection. In this case, unplug the power supply and wait 3~5 min until the input capacitor of DP100 is fully discharged, then connecting it again. -
Page 4: 2，Technical Parameter
DP100 Digital Power User Manual High Performance Digital Power ⚫ Various complete protection circuit, safer to use ⚫ Support multiple ( ≤ 3) devices in series to achieve higher voltage output or positive-negative voltage output ⚫ USB-A interface host mode (USBH) supports output 5V/1A, supports wired/wireless mouse driver ⚫... -
Page 5: 3，Packing List
DP100 Digital Power User Manual High Performance Digital Power 3，Packing list ⚫ DP100 host 1pcs ⚫ A-A USB cable 1pcs ⚫ DC-TypeC cable 1pcs ⚫ Alligator clip power cord(Black) 1pcs ⚫ Alligator clip power cord(Red) 1pcs ⚫ Simple paper manual 1pcs ⚫... -
Page 6: Main Interface
PC, the middle button is invalid and cannot be unlocked through the control panel. ② When communicating with the PC or upgrading the firmware, please set the USB-A interface to slave mode(USBD) first, then use the A-A USB cable to connect PC and DP100. User Manual... -
Page 7: Operation Instructions
3 buttons and scroll wheel of DP100 one-to-one, and the functions are the same (after shutdown or switching to slave mode, the mouse control is invalid ). -
Page 8: Preset Interface
The preset group is used to set output parameters in advance, including output voltage parameters, constant current parameters, overvoltage protection parameters, and overcurrent protection parameters. DP100 supports 10 preset groups (0~9), each preset group can be set, saved, and recalled independently. Users can set output parameters (1.8V, 3.3V, 5.0V, etc.) according to their own needs. -
Page 9: Operation Instructions
DP100 Digital Power User Manual High Performance Digital Power Figure 4.3.1 Preset interface ① Preset[x] : Current preset group, x=0~9; ② VSET: Output voltage setting, range 00.00V~30.00V; ③ OVP: Overvoltage protection setting, range 00.00V~30.50V; ④ ISET: Output constant current setting, range 0.000A~5.000A;... -
Page 10: Menu Interface
DP100 Digital Power User Manual High Performance Digital Power 4.4 Menu Interface 4.4.1 Menu interface The menu has a total of 15 items, including some common setting items. Double-click the middle button ■ to enter menu interface. The menu interface is shown in Figure 4.4.1: Figure 4.4.1 Menu interface... -
Page 11: Operation Instructions
DP100 Digital Power User Manual High Performance Digital Power Restore the configuration parameters to 14. Set default NO/YES the factory state 15. Version info Show the software and hardware version V1.0_1.1 Table 4.4.1 Menu instructions Notes: ① The working voltage is only valid when using the PD/QC power adapter. By default, using the highest voltage which the adapter can provide. -
Page 12: 5，Atk-Dp100 Instructions
DP100 supports 10 preset groups (0~9, ATK-DP100 can only set the group 1 to group 9, the 0th group is reserved), each preset group can be set, saved, and User Manual www.alientek.com... -
Page 13: Advanced Function Interface
(when input voltage <4.8V). Notes: ① After connecting to ATK-DP100, the control panel is automatically locked, and the device cannot be operated from the control panel. ② If auto-save is selected, a large csv file will be generated on disk at high refresh rate. -
Page 14: Firmware Upgrade Interface
5.3 Firmware upgrade interface 5.3.1 Firmware upgrade DP100 firmware update supports two upgrade modes: local mode and remote mode. Local mode: Download the firmware you need (.atk file, the download address is in Chapter 7 of this document) from the download link we provided, and then upgrade according to the operation shown in Figure 5.3.2. -
Page 15: Instructions
② If the upgrade process crashes, first unplug the Type-C power supply and the A-A USB cable of DP100, then press and hold the left button, insert the A-A USB cable and then release the button, DP100 is forced Enter the BOOT mode, and finally connect to ATK-DP100 to perform the firmware upgrade operation. - Page 16 DP100 Digital Power User Manual High Performance Digital Power Figure 5.4.1 Software Update Interface User Manual www.alientek.com...
-
Page 17: 6，Faq
DP100 Digital Power User Manual High Performance Digital Power 6，FAQ The summary of common problems is shown in Table 6.1: Problems and phenomena Solution OCP/OVP/OPP/OTP Promote Check if the output parameters are higher than the set protection parameters, and set the protection parameters reasonably... -
Page 18: 7，Serivices
DP100 Digital Power User Manual High Performance Digital Power 7，Serivices 1. After – sales Service： DP100 host has a one-year free warranty service in the case of non-artificial damage. Please contact the dealer for warranty service. 2. Website Download www.alientek.com/download Company www.alientek.com...
