- Page 1 AstroBox User manual ABM s.r.l. Via Valletta,2 30010 CONA (VE) Italy Tel: +39 0426 46340 info@astrobox.it www.astrobox.it Pag. 1/8 Version 1.00 October 2021...

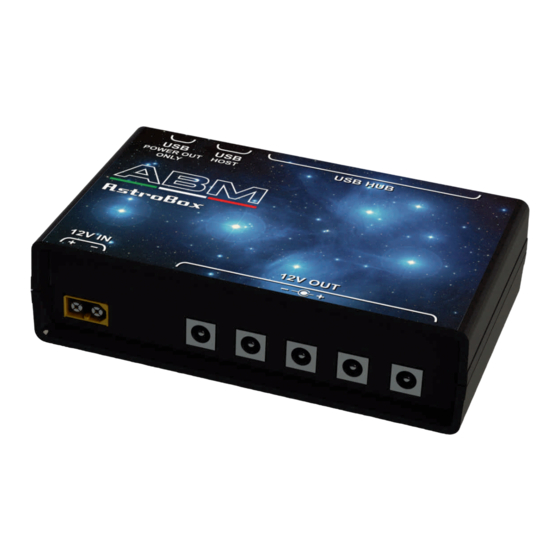

- Page 2 1. Introduction Astrobox is a “grab & go” device, designed for the amateur astronomer who wants to optimize and simplify the management of their astronomical equipment. It combines a power supply distribution and powered USB hub to connect various devices used in Astrophotography.
-
Page 3: Technical Specification
2. Technical Specification Supply Voltage 11V – 13.8V up to 30 A • XT60 Male Connector Power Input Connector & Protections • Polarity Inversion Protection • TVS Protection Maximum current 25 A total with DC5.5/2.1mm 5 x 12 V Outputs Connector (center positive) •... - Page 4 Bundle Version Power cable 18 AWG 50cm 3pcs XT60 female to DC 5.5x2.5 female Universal Clamp adapter Power cable 18 AWG 100cm 2pcs N.B.: AstroBox Core version has only AstroBox Unit and Velcro Pad. Pag. 4/8 Version 1.00 October 2021...
-
Page 5: Warranty
AstroBox is installed, maintained, operated or use other than in • accordance with the instructions provided by ABM s.r.l. AstroBox is altered, modified and repaired by a party not authorized by • ABM s.r.l. The customer cannot provide the sales receipt or purchase invoice. - Page 6 7. Recommendation and Advice Use good quality power cables, paying attention to thicknesses (see • AWG guide table in APPENDIX) and connectors. Thin and long power cables could cause problems to devices like cmos, ccd etc. Please use a power supply sized and suitable for the required •...
-
Page 7: Optional Accessories
8. Optional Accessories Universal Clamp for AstroBox ABX ACC 07 XT60 female to DC 5.5x2.5 female adapter ABX ACC 03 Extension cable XT60 male to XT60 female connector 14 AWG ABX ACC 04.150/200/300 Adapter from female XT60 connector to alligator clip ABX ACC 06... - Page 8 9. APPENDIX AWG guide table (indicative values for one meter long cable) SECTION (mm2) Recommended Max Amp 0.205 <1A 0.325 <3A 0.823 <8A 1.310 <12A 2.080 <18A 3.310 <30A Pag. 8/8 Version 1.00 October 2021...
