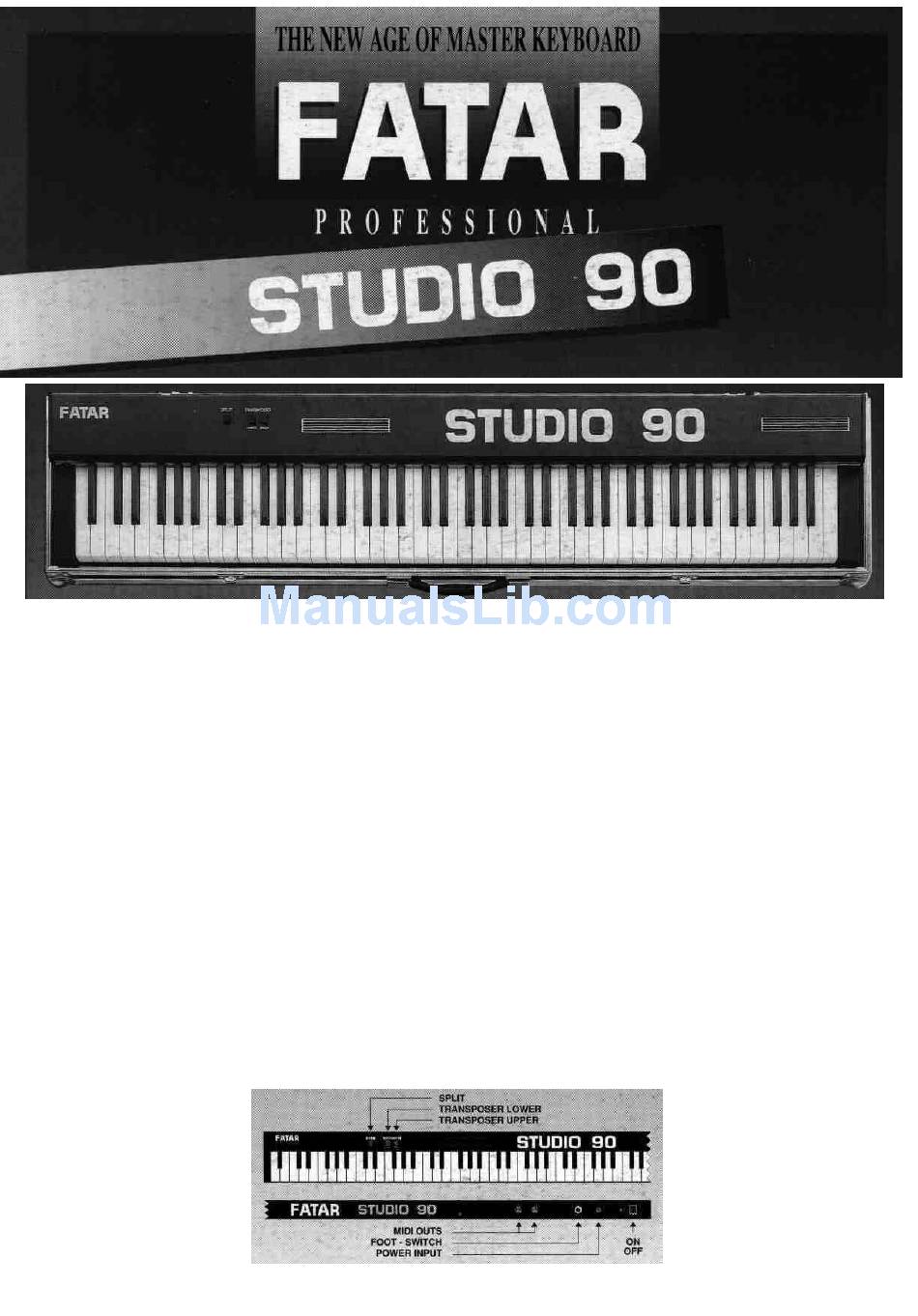

SPLIT
To split the keyboard in two parts all you do is,
press the key that you wish to be the dividing point on the
keyboard then press the switch «SPLIT».
Obviously once split, the keyboard is separated
in two distinct parts, the LOWER part will go
through channel MIDI 1 and the UPPER part
through channel MIDI 2.
If you press only «SPLIT» and no key the entire
keyboard will transmit through MIDI 1
TRANSPOSER
LOWER: to transpose the LOWER part of the
keyboard press the note you want to correspond
to initial A then press the switch «LOWER».
UPPER: to transpose the UPPER part of the
keyboard press the note you want to correspond
lo the first key of the split then press «UPPER».
When you split, transposition will be automa-
tic. the lower part w i l l increase by one octave
and the upper part decreases by one octave.
TECHNICAL DATA
Supply w i l l require a standard adapter with a
variable continuous output voltage ranging 9 to
12 V and 350 mA current minimum.
The keyboard includes two midi outputs t o pilot
other
instruments.
There is also a F00T-
SWITCH jack to which you can connect an
OFF-ON pedal which will enable a sustain
effect through midi of the popalar synthesizers
and
expanders on the market.
