Lesco OSH220L Owner's Manual

Self-propelled overseeder

Hide thumbs

Table Of Contents

Quick Links

OSH220L

Overseeder

Self-Propelled Overseeder

Owner's Manual

OSH220L

Original Instructions

IMPORTANT- READ CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE

Table of Contents

Need help?

Do you have a question about the OSH220L and is the answer not in the manual?

Questions and answers

Summary of Contents for Lesco OSH220L

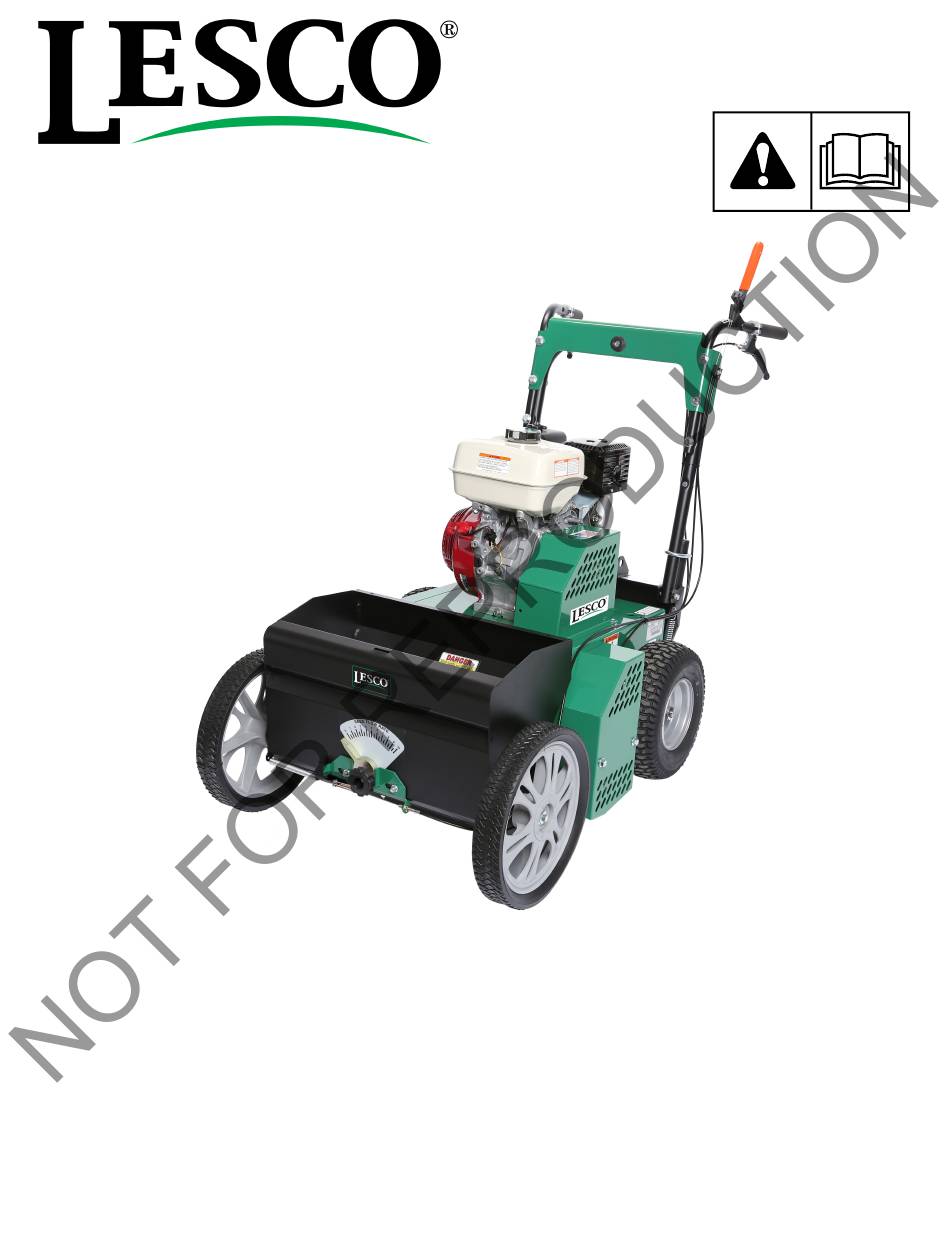

Page 1 OSH220L Overseeder Self-Propelled Overseeder Owner's Manual OSH220L Original Instructions IMPORTANT- READ CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE...
Page 2: Table Of Contents
CONTENTS SPECIFICATIONS AND SAFETY INSTRUCTION LABELS PACKING CHECKLIST ASSEMBLY OPERATION MAINTENANCE & TROUBLESHOOTING 9-10 PARTS LIST 11-22...
Page 3: Specifications And Safety
SPECIFICATIONS OSH220L Engine: HP’ 9.0 HP (6.7kW) Engine: Model GX270UTQA2 Engine: Type Honda Engine: Fuel Capacity 5.6 qt. (5.3 L) Engine: Oil Capacity 1.16 qt. (1.1 L) Total Unit Weight: 323# (147 kg) Max. operating slope SAFETY WARNING This product can expose you to chemicals including gasoline engine exhaust, which is known to the State of California to cause cancer, and carbon monoxide, which is known to the State of California to cause birth defects or other reproductive harm.
Page 4: Instruction Labels
INSTRUCTION LABELS The labels shown below were installed on your Overseeder. If any labels are damaged or missing, replace them before operating this equipment. Item numbers from the Illustrated Parts List and part numbers are provided for convenience in ordering replacement labels.
Page 5: Packing Checklist
PACKING CHECKLIST Your Overseeder is shipped from the factory in one carton. READ all safety instructions before assembling unit. TAKE CAUTION when removing the unit from the box, the Handle Assembly is attached to the unit and cables could snag. PUT OIL IN ENGINE BEFORE STARTING PARTS BAG &...
Page 6: Assembly
ASSEMBLY NOTE: Items in ( ) can be referenced in the Parts Illustrations and Parts Lists on pages 11-22. 1. UNFOLD the upper handle and slide handle lock loops (item 35) into place to secure the upper handle to the lower. 2.
Page 7: Operation
OPERATION NOTE: Items in ( ) can be referenced in the Parts Illustrations and Parts Lists on pages 11-22. FOLDING HANDLE This unit is equipped with a folding upper handle for easier storage and transportation. The handle can be folded by sliding the handle lock loops (item 35) up.
Page 8 ADJUSTING SEED RATE To set the seed flow rate, loosen the knob on the indicator dial and turn it to the corresponding stop setting on the seed application chart (below or on the console) for the type and amount of seed being used. (See Fig. 4) INSTRUCTION LABEL P/N 351501 Fig.
Page 9: Maintenance & Troubleshooting
MAINTENANCE NOTE: Items in ( ) can be referenced in the Parts Illustrations and Parts Lists on pages 11-22. PERIODIC MAINTENANCE Periodic maintenance should be performed at the following intervals: Maintenance Operation Every Use (daily) Every 25 Hours Inspect for loose, worn or damaged parts ...
Page 10 MULE BELT REPLACEMENT 1. Wait for engine to cool and disconnect spark plug. 2. Place the rear of the unit on blocks. 3. Remove the right rear tire (item 11) and spring (item 155) attaching the housing to the frame. 4.
Page 11: Parts List
SLICING REEL ASSY P/N 351603 ITEM NO DESCRIPTION PART NO. SHAFT VERTICUTTING REEL OS900SP 351111 BLADE, VERTICUT LASER CLAD 351290 SPACER PM REEL OS900SP 351261 SPACER HARDENED REEL OS900SP 351297 SPRING DISC 7/8" ID 351298 NUT 7/8"-14 NC 350341 45° ORIENTATION HOLE EACH BLADE SHOULD BE ROTATED CLOCKWISE 45 DEGREES.
Page 12 OSSP ENGINE ASSEMBLY PARTS DRAWING...
Page 13 OSSP ENGINE ASSEMBLY PARTS LIST OSH220L ITEM NO. DESCRIPTION PART NO. ENGINE HONDA 9HP 430287 ENGINE SUBARU 9HP ENGINE BASE WA 351125 JACKSHAFT WA 351107 BELT GATES #8954-0298 351211 ENGINE BRACKET WA 351121 LINKAGE FOOT CONTROL WA 351122 BRACKET GUARD BELT UPPER...
Page 14 OSSP REEL/REEL DRIVE ASSEMBLY PARTS DRAWING...
Page 15 OSSP REEL/REEL DRIVE ASSEMBLY PARTS LIST OSH220L ITEM NO. DESCRIPTION PART NO. ENGINE BASE WA 351125 HOUSING VERTICUTTER WA OS900SP 351101 FRAME SUPPORT OS900SP WA 351126 BEARING 3/4" CAST FLANGE W/ZERK 350209 PULLEY 0.75" ID X 4" 4L SECTION 351210...
Page 16 OSSP HANDLE ASSEMBLY PARTS DRAWING...
Page 17 OSSP HANDLE ASSEMBLY PARTS LIST OSH220L ITEM NO. DESCRIPTION PART NO. FRAME SUPPORT OS900SP WA 351126 PLUG TUBE INSERT 1.25 OD 791056 HANDLE FOLDING OS900SP 351406 BUMPER RECESS 360298 BRACKET CONSOLE OS900SP 351208 GRIP HANDLE 500267 PLUG TUBE INSERT 1" OD...
Page 18 OSSP SEED BOX ASSEMBLY PARTS DRAWING...
Page 19 OSSP SEED BOX ASSEMBLY PARTS LIST OSH220L ITEM NO. DESCRIPTION PART NO. FRAME SUPPORT OS900SP WA 351126 SEED BOX WA 351103 FRONT WHEEL 14" ASSY 351013 BEARING & FLANGETTE ASSY 850232 AXLE SEED BOX 351223 WHEEL PADDLE SEED WA 351105...
Page 20 OSSP TRANSMISSION ASSEMBLY PARTS DRAWING...
Page 21 OSSP TRANSMISSION ASSEMBLY PARTS LIST OSH220L ITEM NO. DESCRIPTION PART NO. TRANSAXLE 351201 ENGINE BASE WA 351125 FRAME SUPPORT OS900SP WA 351126 JACKSHAFT WA 351107 REAR WHEEL13" X 5" PNEU ASSY 351202 BEARING & FLANGETTE ASSY 850232 BELT 3L550 TRUFLEX 351327 PULLEY 0.75"...
Page 22 OSSP TRANSMISSION ASSEMBLY PARTS LIST OSH220L ITEM NO. DESCRIPTION PART NO. BRACKET TORQUE LIMITING 351294 NUT 5/16"-18 SER HEX WASHER FLNG ZP 350346 SCREW SPOT WELD 5/16"-18 X 3/4 W/PROJ 351263 BOLT CARRIAGE 5/16"-18 X 3/4" ZP 8024039 SCREWCAP 1/4"-20 X 1" HCS ZP 8041006 KEY 3/16"...
