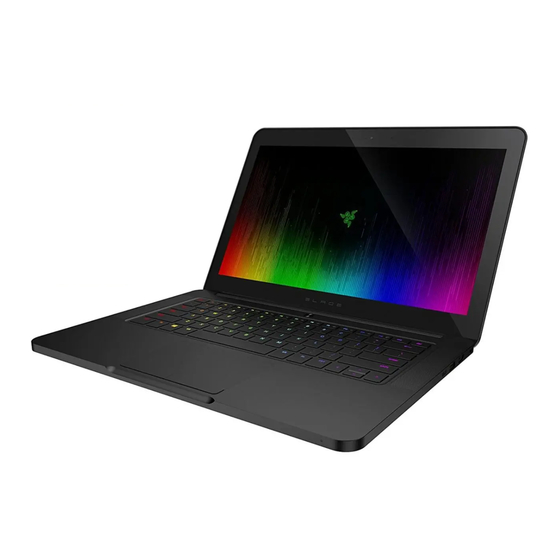

Razer RZ09-0195 User Manual
  1. Manuals
  2. Brands
  3. Razer Manuals
  4. Laptop
  5. RZ09-0195
  6. User manual

Razer RZ09-0195 User Manual

Hide thumbs

Advertisement

Quick Links

User Manual
RZ09-0195
0 | For gamers by gamers™

Advertisement

loading
Need help?

Need help?

Do you have a question about the RZ09-0195 and is the answer not in the manual?

Questions and answers

Related Manuals for Razer RZ09-0195

Summary of Contents for Razer RZ09-0195

  • Page 1 User Manual RZ09-0195 0 | For gamers by gamers™...
  • Page 2 With next generation NVIDIA® GeForce® GTX 1060 graphics, a 6th Gen Intel® Core™ i7 processor, and groundbreaking PCIe solid state storage performance, the Razer Blade has more power per cubic inch than any ultraportable or gaming notebook in its class.

  • Page 3: Table Of Contents

    CONTENTS 1. PACKAGE CONTENTS / REGISTRATION / TECHNICAL SUPPORT ... 3 2. BASIC FEATURES ................. 4 3. SETTING UP YOUR RAZER BLADE ............5 4. USING YOUR RAZER BLADE ............... 10 5. CONFIGURING YOUR RAZER BLADE ..........11 6. SAFETY AND MAINTENANCE ............. 36 7.

  • Page 4: Package Contents / Registration / Technical Support

    Razer ID now to get a wide range of Razer benefits. For example, get real-time information on your product’s warranty status via Razer Synapse. To learn more about Razer Synapse and all its features, visit www.razerzone.com/synapse. If you already have a Razer ID, register your product by clicking on your email address within the Razer Synapse application and select Warranty Status from the dropdown list.

  • Page 5: Basic Features

    Full HD IPS display L. HDMI 2.0 port E. Power button M. Kensington security slot F. Stereo speakers incorporating N. Power port Dolby® Digital Plus Home O. 3.5mm combo port Theater Edition G. Razer Chroma™ backlighting keyboard 4 | For gamers by gamers™...

  • Page 6: Setting Up Your Razer Blade

    Press the power button to turn on your Razer Blade. For first time use, please fully charge your Razer Blade or connect it to a power outlet before turning it on. It takes approximately 3 hours to fully charge the Razer Blade.
  • Page 7 CONNECTING TO THE INTERNET Disclaimer: The screens shown are subject to change based on the current version of your Operating System. 1. Click the wireless network icon ( ) to bring up the Wireless network list. The system will automatically search for wireless networks in range. 6 | For gamers by gamers™...
  • Page 8 2. Click the network you wish to connect to and click Connect. 7 | razer™...
  • Page 9 2. Enter the network password (if any) and select whether to enable network sharing. Click Next. 3. Once you are connected to the wireless network, click anywhere outside the window to return to the desktop. 8 | For gamers by gamers™...
  • Page 10 RAZER SYNAPSE ACCOUNT CREATION & INSTALLATION Razer Synapse allows you to sync your Razer Blade and other supported Razer peripherals to a cloud server to download driver and firmware updates. You will also be able to configure the Switchblade User Interface, key bindings, profiles, macros, backlighting and more within the application.

  • Page 11: Using Your Razer Blade

    4. USING YOUR RAZER BLADE STATUS INDICATORS KEYBOARD FUNCTION KEYS Function Keys To activate the features below, press the ‘Fn’ key and the respective key. The audio volume controls allow you to mute ( ), decrease ) and increase ( ) the audio output.

  • Page 12: Configuring Your Razer Blade

    5. CONFIGURING YOUR RAZER BLADE Disclaimer: The features listed here require you to log in to Razer Synapse. These features are also subject to change based on the current software version and your Operating System. SYSTEM TAB The Keyboard Tab is your default tab when you first install Razer Synapse. This tab allows you to customize your device’s profiles and key assignments.
  • Page 13 Profile A profile is a convenient way of organizing all your custom settings and you can have an infinite number of profiles at your disposal. Any changes made within each tab are automatically saved to the current profile and stored into the cloud servers. You can create a new profile by clicking the button or delete the current profile by clicking the...
  • Page 14 The Customize Tab is where you can modify the basic functionalities of your device such as key assignments and trackpad sensitivity to suit your gaming needs. The changes made in this tab are automatically saved to your current profile. 13 | razer™...
  • Page 15 Key Assignment Menu Initially, each key is set to DEFAULT. However, you may change the function of this key by clicking the desired key to access the Key Assignment Menu. Listed below are the customization options and their description. Default This option enables you to return the key to its original function.
  • Page 16 Inter-device from the Key Assignment Menu, a sub-menu will appear. DEVICE TO LINK allows you to choose which currently connected Razer device can be linked while FUNCTION allows you to choose which functionality you want to use for the linked device.
  • Page 17 Switch Profile The Switch Profile enables you to change profiles on the fly and immediately load all your pre-configured settings. When you select Switch Profile from the Key Assignment Menu, a sub-menu will appear that will allow you to choose which profile to use.
  • Page 18 This option enables you to assign the key into an Operating System shortcut command. more information please visit: http://support.microsoft.com/kb/126449 Disable This option renders the assigned key unusable. Use Disable if you do not want to use the key or if it interferes with your gaming. 17 | razer™...
  • Page 19 Trackpad Configuration You can adjust the response of the trackpad by clicking the image of the trackpad on the user interface. Listed below are the options and their descriptions. Trackpad Settings Use this link to select your primary button, set the scroll behavior, and change the touchpad delay.
  • Page 20 This tab allows you to adjust the intensity of the keyboard’s backlight by using the BRIGHTNESS slider. You can also enable Razer Synapse to automatically switch off all lighting on the device when the system display is turned off or when the system has been idle for a certain amount of time.
  • Page 21 Pre-loaded lighting effects A number of pre-loaded lighting effects can be selected and applied to your keyboard lighting as a whole, such as spectrum lighting, breathing etc. The default effect is spectrum lighting. Select your desired effect and their corresponding properties (such as color) from the bottom area of this tab.
  • Page 22 Advanced lighting configuration Accessible from Razer Synapse, is an advanced Chroma configurator for your Chroma-enabled device. Click the link from the Lighting tab to open this configurator. 1) Select the zones on the keyboard to customize. You can select multiple regions with the CTRL key.
  • Page 23 Gaming Mode Tab The Gaming Mode Tab helps you prevent accidental key presses. Depending on your settings, you may choose to disable the Windows key, Alt + Tab and Alt + F4. Furthermore, you can maximize the effect of Anti-Ghosting by activating the Gaming mode function.
  • Page 24 Power Tab The Power Tab allows you to manage your device’s energy consumption when running on batteries. You can also set your device to enter sleep mode when it has been idle for a certain amount of time. 23 | razer™...
  • Page 25 MACROS TAB The Macros Tab allows you to create a series of precise keystrokes and button presses. This tab also allows you to have numerous macros and extremely long macro commands at your disposal. The Macro section works similarly to Profile wherein you can rename a macro by typing on the field below MACRO NAME.
  • Page 26 DEFAULT DELAY uses a predefined time (expressed in seconds) as the delay. And NO DELAY omits all the pauses in-between keystrokes and button presses. Note: You may use up to three decimal places when inserting values on the seconds (sec) field. 25 | razer™...
  • Page 27 Once you have recorded a macro, you may edit the commands you have entered by selecting each command on the macro screen. Each keystroke or button press is arranged sequentially with the first command shown at the top of the screen. button allows you to edit a particular command and the button enables you to delete a command.
  • Page 28 The dropdown menu on this window allows you to choose a keystroke or a delay to be added in before or after the highlighted macro command. 27 | razer™...
  • Page 29 You may add in a new set of macro commands by clicking the button on the keystroke menu; or input time delays on the duration field using the delay menu. 28 | For gamers by gamers™...
  • Page 30 This function is disabled by default. To enable this function, click the notification icon next to your user name in the Razer Synapse window and select “Enable Stats & Heatmaps”. Confirm to enable the function in the dialog box that appears.
  • Page 31 Return to Razer Synapse and a new “Stats” tab will be available. Simply click the tab to open the function window. 30 | For gamers by gamers™...
  • Page 32 Games List. From this list, you can add more games that have not been automatically detected, using the button, edit games with the button or re-scan your system with the button to search for newly installed games. 31 | razer™...
  • Page 33 Stats Tab By default, the Stats Tab shows you the overall statistics of all your Razer devices for all games and all time. You can select a specific game via the game list on the left side, change the time period using the SHOWING dropdown menu, or the Razer device using the DEVICES dropdown menu.
  • Page 34 Heatmaps Tab - Keyboard Heatmaps Tab shows the most frequently used keys on your Razer device for each game on your Games List. 33 | razer™...
  • Page 35 Social Media You can share your heatmap image on social media networks such as Facebook or Twitter directly from Razer Synapse. From the Heatmaps tab, click the Share button on the bottom right of the screen. You will be prompted to login to the selected social media using an existing account if you have not already done so.
  • Page 36 You can also login to your social media accounts first from the “SETTINGS” screen. From the Stats & Heatmaps window, click . Select the “ACCOUNTS” tab. Click CONNECT next to the social media network you wish to sync with. Enter your login details and wait for the connection to complete. 35 | razer™...

  • Page 37: Safety And Maintenance

    6. SAFETY AND MAINTENANCE SAFETY GUIDELINES In order to achieve maximum safety while using your Razer Blade, we suggest that you adopt the following guidelines: 1. Should you have trouble operating the device properly and troubleshooting does not work, unplug the device and contact the Razer hotline or go to www.razersupport.com...
  • Page 38 Casual use will extend battery life. If you suspect that the lithium-ion rechargeable battery inside the Razer Blade may be drained (has a low charge), try charging it. If the battery does not recharge after several attempts, it may be non-operational.

  • Page 39: Legalese

    LIMITATION OF LIABILITY Razer shall in no event be liable for any lost profits, loss of information or data, special, incidental, indirect, punitive or consequential or incidental damages, arising in any way out of distribution of, sale of, resale of, use of, or inability to use the Product.
  • Page 40 COSTS OF PROCUREMENT For the avoidance of doubt, in no event will Razer be liable for any costs of procurement unless it has been advised of the possibility of such damages, and in no case shall Razer be liable for any costs of procurement liability exceeding the retail purchase price of the Product.
  • Page 41 FCC CAUTION STATEMENT Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that...
  • Page 42 Cet émetteur ne doit pas être Co-placé ou ne fonctionnant en même temps qu'aucune autre antenne ou émetteur. Cet équipement devrait être installé et actionné avec une distance minimum de 0mm entre le radiateur et votre corps. 41 | razer™...
  • Page 43 Electromagnetic Compatibility (EMC). IMPORTANT NOTICE FOR USE IN HEALTHCARE ENVIRONMENTS This Razer device is not a medical device and is not listed under UL or IEC 60601 (or equivalent). This device should be kept at a certain distance to avoid harmful effects to patients or medical equipment.
