Setting up piezo bass bridge
1 comments:
Mr. Anderson
August 23, 2025

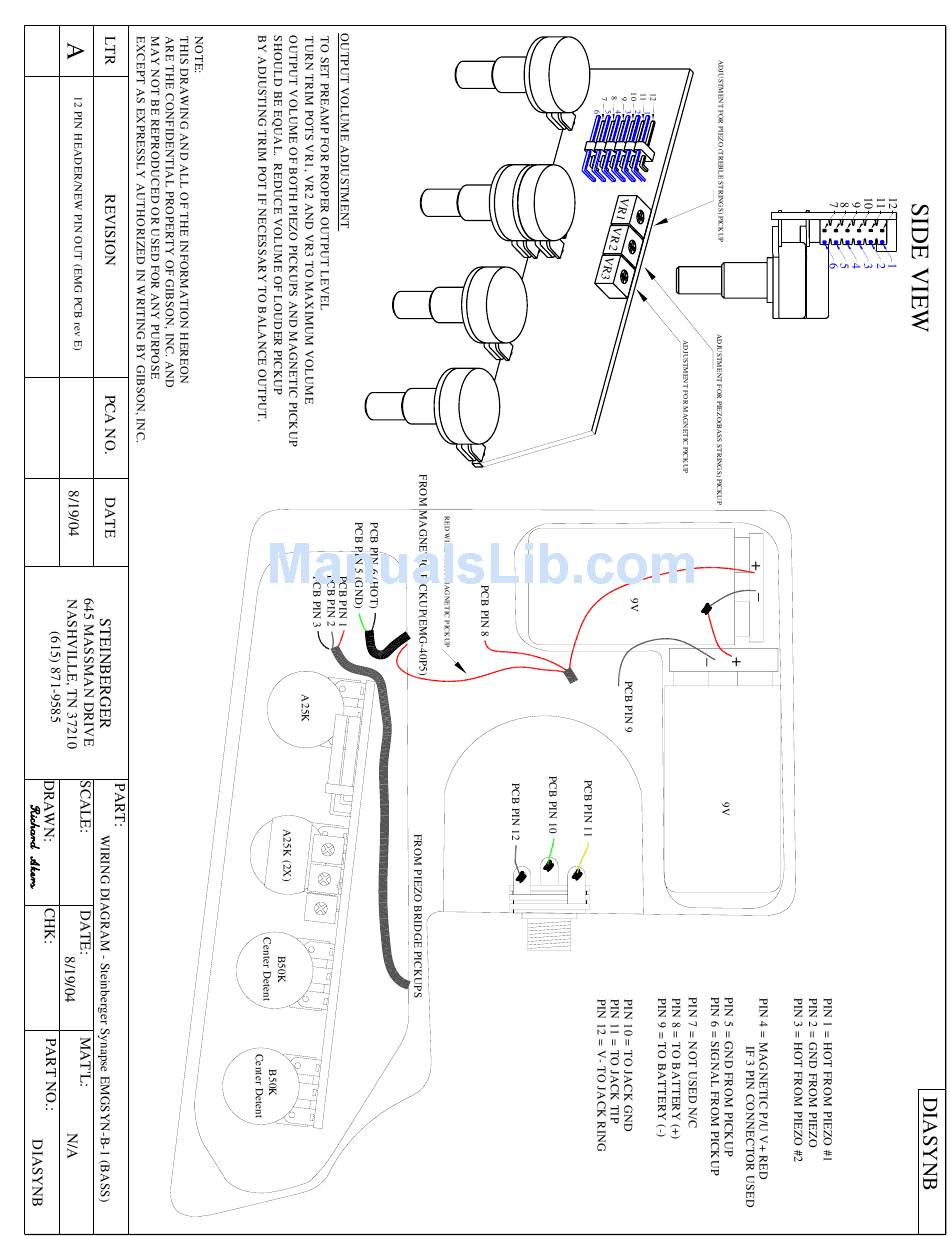

To set up the piezo bass bridge for the Steinberger EMGSYN-B-1:
1. Connect the piezo pickup wires: - PCB Pin 1: Hot from Piezo #1 - PCB Pin 2: Ground from Piezo - PCB Pin 3: Hot from Piezo #2
2. Adjust the trim pots for piezo pickup balance: - Use the adjustment labeled “Pickup Adjustment for Piezo (Bass Strings)” to set the level for the bass strings. - Turn VR1, VR2, and VR3 trim pots to maximum volume initially (all are A25K or B50K).
3. Balance the output by reducing the volume of the louder pickup using the trim pots.
This setup ensures proper signal from the piezo bass bridge to the preamp and balanced output with other pickups.
This answer is automatically generated
