Summer BABY PIXEL ZOOMHD 36044 Quick Start Manual

ADDING A CAMERA

Your digital video monitor accepts up to 4 total cameras.
You c a n s e l e ct the o n e you w a nt to vi ew O R u se t he
a ut o- sc a n m o de to c yc le th rough ea ch c a mera o n a n
8 -s e co n d ro t atio n.
1 . Pl u g in ca mer a. A smal l sol id green l i ght a bove t he
le n s w ill in di ca te po w er.
I f n ot , p re ss a nd ho l d t he P OWE R bu tt on f o r 3 s eco nds
un t il th e g re e n li ght appea rs.
2 . E nt e r p a i ri ng mo de by pressing the c a mera pow er
b utt o n un t i l i t beeps and th e sma l l green li ght f la s he s
(a b ou t 8 s e c o n ds).
3 . O n t h e ha nd h eld, press MENU / SELECT t wi ce to op en
t h e C a m e ra Opti o ns Me nu.
4 . Pre ss th e RIG HT AR R OW butto n to hi ghl i ght the A dd
Ca m e r a i co n.
5 . Pre ss ME N U/SE LE CT .
6 . Pre ss th e L E FT /RI GHT A RR OW but t ons to hi ghl i ght
t h e d e s ired cam era.
I con s f or Syn ced C am er as :
• B lu e ic o n s i ndi cate syn c ed c a mera s .
• Gr a y ic o n s i ndic ate c am er as no t yet sy nced .
• A b lu e r ing i ndi c ates sel ec ted c a mera .
7 . Pre ss ME N U/SE LE CT .
• A s y n c in g i co n wi ll ap pear n ext to t he c orres po nding
ca me ra n u m ber.
• I f s y n c i s su cc essf ul: vi deo w il l appe ar f rom the newly
added camera with a blue ring around the camera icon.
• If sync is unsuccessful: an X will appear over the camera
number. Repeat steps from this section to sync, making
sure the camera and handheld are next to each other.

INSTALLING THE CAMERA

NOTE: For best picture focus, place camera 6 to 8 ft.
from crib.
1. Plug in nursery camera.
2. Place camera on a flat sur face, such as a dresser
or shelf.
3. Or, mount the camera on a wall using the screw
and wall anchor provided.

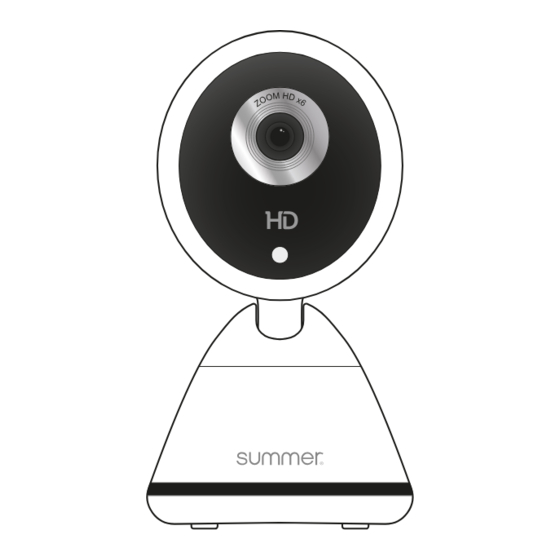

3 6 0 5 4
BABY PIXEL
e x t r a v i d e o c a m e r a
For use with the 36044
Adult assembly required. Keep small parts away from children when assembling.
THIS PRODUCT CANNOT REPLACE RESPONSIBLE ADULT SUPERVISION.
• STRANGULATION HAZARD - Children have STRANGLED in cords.
Keep this cord out of reach of children (more than 3 feet (0.9 m)
away from the crib). Use enclosed Security Clips to help secure cord
away from baby's reach. Never use extension cords with AC
Adapters. Only use the AC Adapters provided.
• When an AC Adapter is plugged into an electrical outlet, do not touch the exposed end.
• Test monitor before first use, periodically, and when changing location of the Camera.
• Do not use monitor near water (such as bathtub, sink, etc.).
• Keep monitor away from heat sources (such as stoves, radiators, etc.).
• Make sure there is proper ventilation around all monitor components. Do not place on
sofas, cushions, beds, etc. which may block ventilation.
• This product is not a toy. Do not allow children to play with it.
• This product contains small parts. Adult assembly required. Exercise care when
unpacking and assembling the product.
• Use only the original rechargeable battery provided. Please contact Summer Infant
(USA), Inc. for replacement battery.
• Do not short-circuit supply terminals.
• Only the recommended battery or equivalent are to be used, volts and size.
• Remove battery when product is stored for long periods of time or when battery is exhausted.
• Dispose of exhausted battery properly.
• Keep all batteries away from children.
B a b y P i x e l ® Z O O M H D ™

WARNING

WARNING

BATTERY WARNING

S ucce s sf ul S y n c
Extra Cameras: To order an additional camera (item #36054)
or extra power cord for your camera (item #29580-05), please
contact our Consumer Relations Team at: 401-671-6551 or
www.summerinfant.com/contact for details.
t a b l e t o p
ZOOM HD
®
5.0 inch Color Video Monitor
Un s ucce s s ful S yn c
R ep e a t s t e ps .
w a l l m o u n t
™
