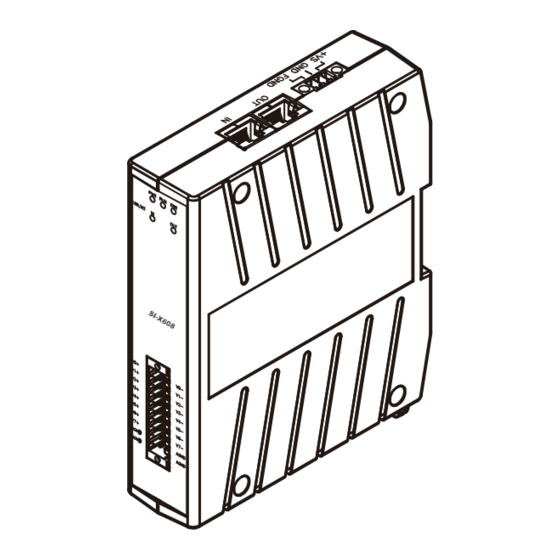

ProX SI-X608 Quick Reference Manual

SI-X608
Quick
Reference
Guide
Pin Assignment
PWR RUN ERR
IN OUT
LINK/ACT
SI-X608
V0+ V0-
V1+ V1-
V2+ V2-
V3+ V3-
V4+ V4-
V5+ V5-
V6+ V6-
V7+ V7-
AGND AGND
AGND AGND
All Rights Reserved. Copyright 2020
I/O Connector (JIO1)
Pin No. Pin No.
Signal
2 1
V0+
4 V1+ 3
V2+ 5
6
V3+
8 7
V4+
10 9
12 V5+ 11
14 13
V6+
15
16
V7+
AGND 17
18
19
20 AGND
Specifications
System
Controller
Communication Interface
Connector
Protocol
Distance between Stations
Power Supply
LED Indicator
Installation
Net Weight
Dimensions (WxHxD)
Certificate
I/O (Analog Input)
No. of Channels
Wire Connection
Input Type
Range
Resolution
Sample Rate
Accuracy
Overvoltage Protection
Environment
Operating Temp. (with airflow)
Storage Temp.
Humidity
Ver. Q1
Signal
V0-
V1-
+VS
V2-
LAN1 and LAN2 Port (IN, OUT)
V3-
Pin No.
V4-
1
V5-
2
V6-
3
V7-
4
4
AGND
5
AGND
6
7
8
EtherCAT Slave Controller
Ethernet
2 x RJ45 (Support Daisy Chain)
EtherCAT
Max. 100m, 100 BASE-TX
9~48 V DC with 3-pin terminal block
Power LED, Green / RUN LED, Green /
Link IN/OUT, Green / Error LED, Red
DIN-Rail
220g
139.97 x 116.97 x 33mm (without connectors)
CE/FCC
8
Differential
Voltage, Current (software selectable)
0~5V, 0~10V, ±10V, ±5V
0~20mA, ±20mA, 4~20mA
16-bit
1k Hz per channel
< ±0.2% of FSR
± 35 VDC
-25°C ~ 75 °C (-13 °F ~ 167°F)
-40°C ~ 85°C (-40°F ~ 185°F)
20% ~ 90%
OUT IN
GND FGND
Signal
DC-IN Connector (JPWR1)
TX1+
Pin No. Signal
TX1-
1 DC-IN
RX1+
2 GND
NC
3
GND_Shield
NC
RX1-
NC
NC
SI-X608
SI-X608
