Summary of Contents for Sunsky TON171

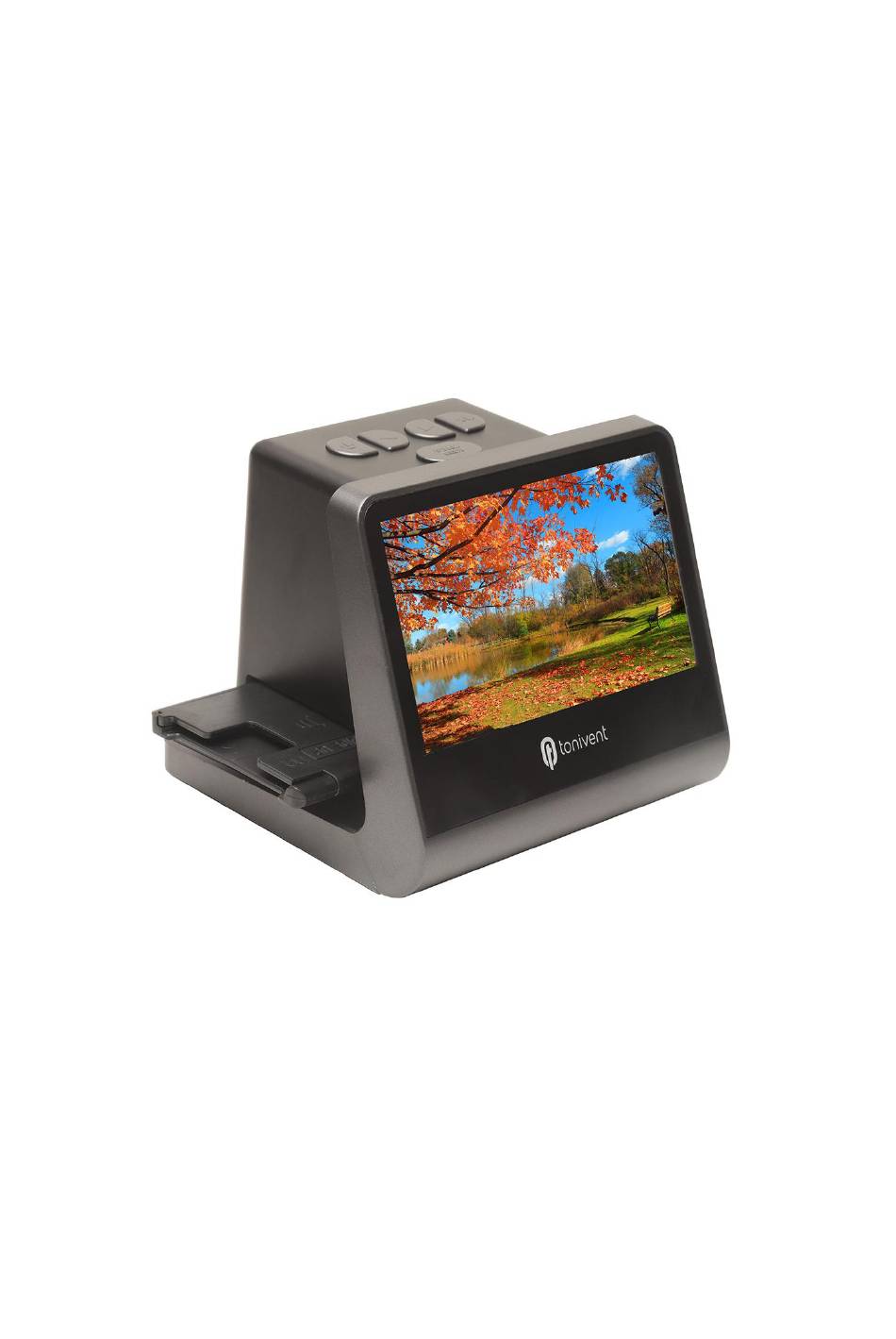

- Page 1 FILM SCANNER TON171 FILM SCANNER USER’S MANUAL...
-
Page 2: Table Of Contents
CONTENTS Preface..........................1 Safety Precautions ..........................1 Checking package contents.......................1 Product Structure Diagram.......................2 Slide and negative holder loading method ..................3 Operation Guided..........................5 Product Specification........................12 Declaration............................13... -
Page 3: Preface
1. Preface Thank you for purchasing this product ！ Please read this user's manual carefully before using this product. Please retain this manual for future reference. Please use this product correctly 2. Safety Precautions Do not disassemble this unit. Do not touch inner part of the scanner after dropping or other damage suffering. Do stop using it if there is any problem with the scanner, such as smoke or smell while using. -
Page 4: Product Structure Diagram
Please stretch into clean from product side, when you use cleaning brush to clean backlight 4. Product Structure Diagram negative slot type-c power HD out 5. Slide and negative holder loading method Loading Negatives Hold up the negative toward the light. Face the right side of the negative to yourself. - Page 5 the negative holder, then place negative into recessed area in the holder.Close the negative holder and press the edges so that it locks in place. c. Insert the negative holder into the slot on the right side of the film scanner . Loading Slides a.
-
Page 6: Operation Guided
6. Operation Guided (1) .Introduction of Menu ① Film Type ⑤ Format ② Resolution ⑥ USB MSDC ③ Capture ⑦ Language ④ Playback (2).Capture Picture a.Before scanning please make sure the inner backlight panel is clean. Note: You can use the provided brush to clean the screen. - Page 7 b.In main Menu mode press “OK/Enter” enter capture mode, you can press left button to mirror and press right button to flip the current picture. And you can press OK button to set Exposure. Then press Convert/Mode button again back to main menu.
- Page 8 negative(110、135、126KPK)、slide(110、135、126KPK、Super8)、B&W(110、135、 126KPK) (4).How to playback captured picture In main menu, press “<” “>” , until , press “OK/Enter” enter the picture auto-playback mode press again to stop auto playback and you can view captured pictures manually, you can press “<” “>” to view; press “OK/Enter” again enter picture editing mode, you can rotate: delete, exit, save, and “home”...
- Page 9 language, then press “<” “>” and “OK/Enter”, one of following 8 language can be set: English、French、German、Italian、Spanish、T-Chinese、S-Chinese、Japanese. (6).Resolution Choosing Under main menu mode , press “<” “>” , until , press “OK/Enter” to enter into Resolution Choosing Mode，you can choose 14M or 22M(interpolation) (7) .Formatting In the main menu, press “</>”...
-
Page 10: Product Specification
Note: After using this function, all the information in the Micro SD card will be deleted, please note it ! (8).Connect to computer Under main menu mode, press “<” “>”, until , press “OK/Enter”. After successful connecting to computer, you can view and edit capture picture. 7. -
Page 11: Declaration
126KPK Film(27*27mm)、 110 Film(17*13mm)、 Super8 Film(4.01*5.79mm)、 Monochrome、Slide Picture Effects B&W,Slides,Negatives File format Picture：JPEG TV-OUT type NTSC/PAL Built-in memory 16GB External memory card SD card up to 32GB Power Supply DC 5V Adapter/ USB Port Language S-Chinese / T-Chinese / English / French /German / Italian / Spanish / Japanese Support system...
