InPOWER DCS30 Series Owner's Manual

INTRODUCTION

The DCS30 Series family of Hall-effect DC current sensors is designed to operate standard 50 or 100 millivolt ammeters.
Although typically used in vehicle and marine applications to measure battery currents, they are suitable for any DC
current monitoring. The sensors measure positive and negative current values. Models are available for measuring
current ranges from +/- 100 amps up to +/- 600 amps, and they can output to either a +/- 50 millivolt meter or a +/- 100
millivolt meter.
Model Current Range
DCS30-100-1 ± 100 amps
DCS30-200-1 ± 200 amps
DCS30-300-1 ± 300 amps
DCS30-100-2 ± 100 amps
DCS30-200-2 ± 200 amps
DCS30-300-2 ± 300 amps
METER

SPECIFICATIONS

Sensor Type:
Linearity:
Supply Voltage Range:
Current consumption:
Output to Meter:
Operating Temperature:
Storage Temperature:
Aperture Size:
Weight:
Dimensions:
Connector System:
Electrical System Solutions
© Copyright 2022 InPower LLC
OWNERS MANUAL
DCS30 Series
Hall-Effect Current Sensors

DC Current Sensor Models

Output
± 50 millivolts
± 50 millivolts
± 50 millivolts
± 100 millivolts
± 100 millivolts
± 100 millivolts

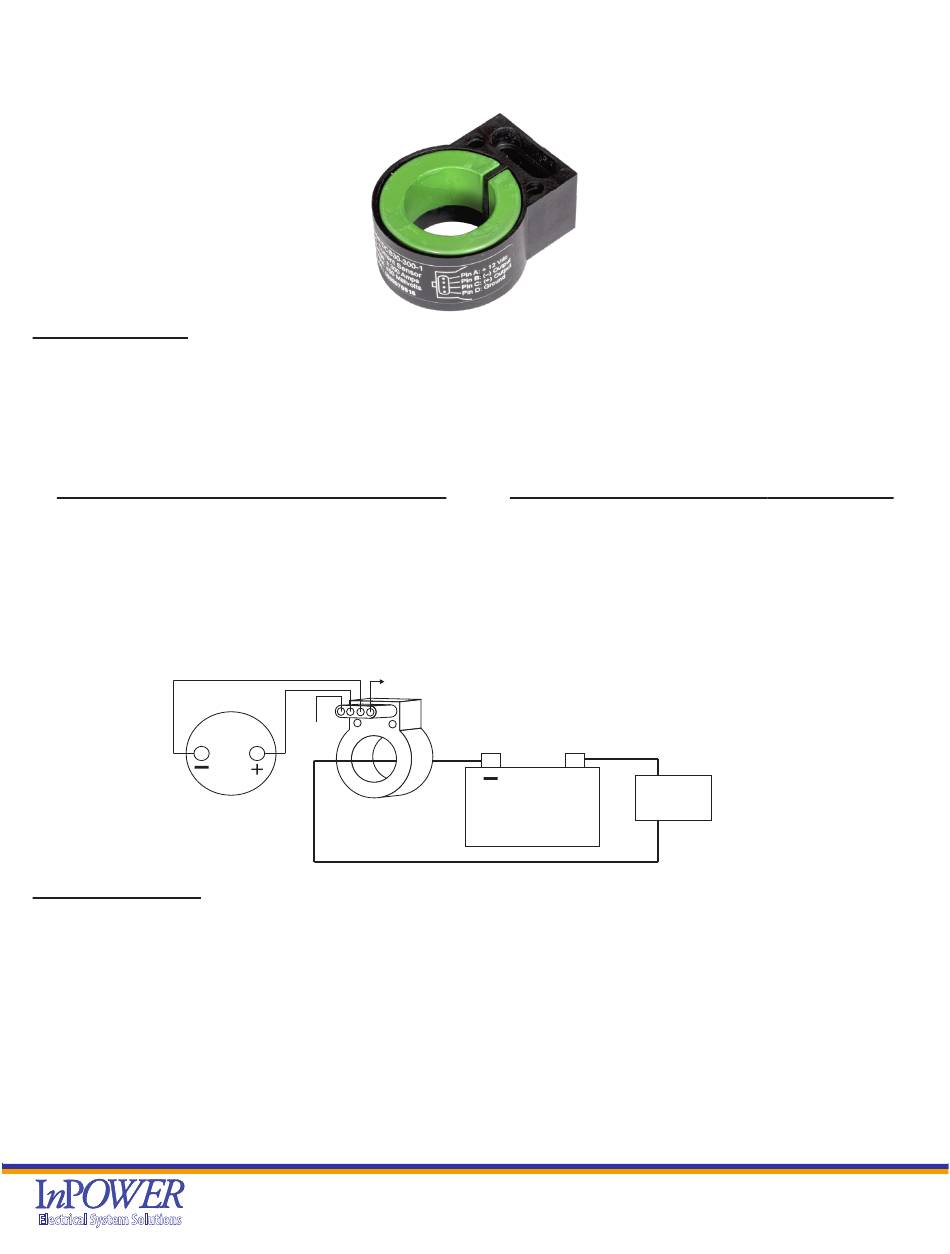

System Diagram

+12V
GND
InPower LLC
8311 Green Meadows Dr.
Lewis Center, Ohio 43015
740-548-0965
www.InPowerLLC.com
Model
DCS30-400-1
DCS30-500-1
DCS30-600-1
DCS30-400-2
DCS30-500-2
DCS30-600-2
+
BATTERY
Open loop Hall-effect
1.5%
+7 to +20Vdc
8.1 milliamps maximum
±50 millivolts or ±100 millivolts
Note: Meter internal resistance must be 20 ohms or greater.
-40°C to +125°C
-40°C to +125°C
1.23 inches
0.30 lbs
2.66 x 2.10 x 1.10
Packard Sealed Metri-Pak 150. Mating plug not supplied with
sensor. See Technical Bulletin TB-31 for details.
Page
Document: OM-23
1 of 2
Date: May 26, 2004
Current Range Output
± 400 amps ± 50 millivolts
± 500 amps ± 50 millivolts
± 600 amps ± 50 millivolts
± 400 amps ± 100 millivolts
± 500 amps ± 100 millivolts
± 600 amps ± 100 millivolts
LOADS
DCS30 Owners Manual
Version Code: D
Date: Dec 15, 2022
