AMCI 4402 User Manual

Pwm output modules for point i/o
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ADVANCED
MICRO CONTROLS INC.
Manual #: 940-04031

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4402 and is the answer not in the manual?

Questions and answers

Summary of Contents for AMCI 4402

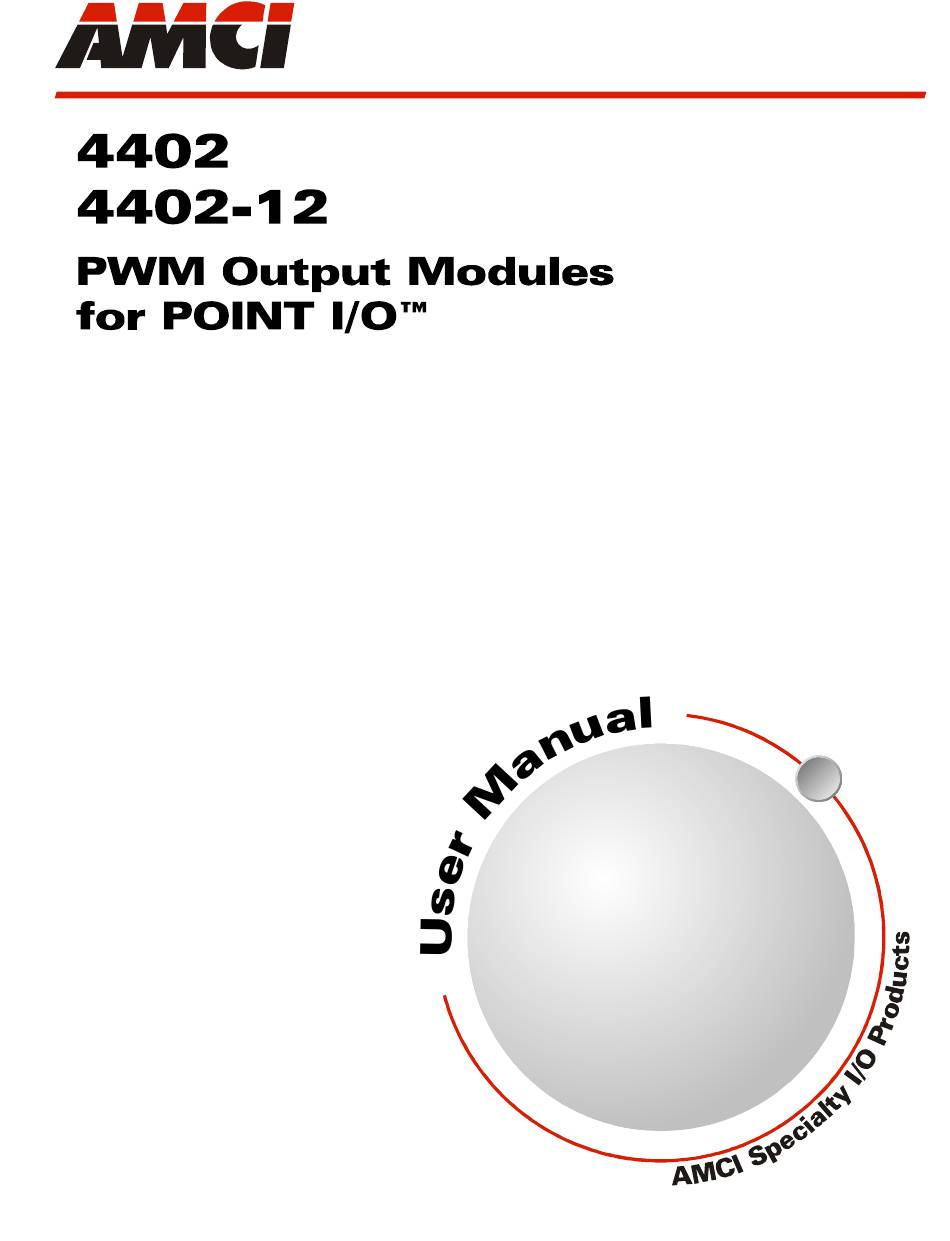

  • Page 1 ADVANCED MICRO CONTROLS INC. Manual #: 940-04031...

  • Page 2: General Information

    [18] months. Within this warranty period, AMCI shall, at its option, repair or replace, free of charge, any equipment covered by this warranty which is returned, shipping charges prepaid, within eighteen months from date of invoice, and which upon examination proves to be defective in material or workmanship and not caused by accident, misuse, neglect, alteration, improper installation or improper testing.

  • Page 3: Table Of Contents

    Navigating this Manual ......5 Installation ........16 Manual Conventions ........ 5 Removal ........16 Trademarks and Other Legal Stuff ..5 Install the 4402 Module ......16 Revision Record ........6 Remove Power ......16 Revision History ......6 Installation ........16 Manual Layout .........
  • Page 4 4402 User Manual ABLE OF ONTENTS ADVANCED MICRO CONTROLS INC.

  • Page 5: About This Manual

    Audience. This manual explains the installation and operation of AMCI’s 4402. It is written for the engineer responsible for incorporating the 4402 into a design as well as the individual responsible for its actual installation.

  • Page 6: Revision Record

     If you need to install and use the 4402, then the rest of the manual is written for you. To simplify instal- lation and configuration, the rest of the manual is broken down into tasks and references. Using the 4402 requires you to complete four tasks, and the manual is broken down into sections that explain how to complete each one.

  • Page 7: Reference: 4402 Specifications

    PWM Outputs Two outputs are available on the 4402. These outputs have independent PWM frequency and duty cycle set- tings. The PWM frequency settings are programmable over a 1 Hz to 20 kHz range with a resolution of 1 Hz.

  • Page 8: Drivers

    Programming the Module The 4402 is typically written to by the host at a defined RPI time. In order to control the flow of programming data, the 4402 defines a Transmit Bit and an Acknowledge Bit to control a handshaking protocol called a Pro- gramming Cycle.

  • Page 9: Status Led's

    Duty Cycle is not equal to its default value Blinking Orange Duty Cycle is not equal to its default value and Dithering is applied. 20 Gear Drive, Plymouth Ind. Park, Terryville, CT 06786 Tel: (860) 585-1254 Fax: (860) 584-1973 http://www.amci.com...

  • Page 10: Specifications

    4402 User Manual PECIFICATIONS Specifications Number of Channels Output Drivers 4402: 24 Vdc Sourcing drivers. 1.5 A max. per  2. Channels are independent of each other. output. Backplane Current Draw 4402-12: 12 Vdc Sourcing drivers. 1.5 A max. per ...

  • Page 11: Pwm Output

    Dithering is controlled with two parameters. Dither Frequency The 4402 has two Dither Frequency parameters, one associated with each channel. This parameter sets the frequency of the imposed AC signal. It has a range of 0 Hz to {PWM Frequency}/4. If the Dither Frequency is set to zero, the dithering functionality is disabled for that channel and the Dither Deviation parameter for that channel must also equal zero.

  • Page 12: Dither Deviation

    Dithering Control (continued) Dither Deviation The 4402 has two Dither Deviation parameters, one for each channel. Like Duty Cycle, Dither Deviation is programmed as an integer value that represents a percentage of the programmed time period. The value has a resolution of 0.1%.

  • Page 13: Real Time Control

    Disabled Table 1 Factory Default Settings With these settings, the 4402 will output at 10% on both channels, with a maximum update time of forty mil- liseconds (1/250 Hz). All of these parameters can be programmed through the network data and saved to the Flash memory on the 4402.
  • Page 14 4402 S 4402 User Manual PECIFICATIONS Notes ADVANCED MICRO CONTROLS INC.

  • Page 15: Hardware Installation

    If you attempt to drive more than five mod- ules, the voltage at the sixth module will be too low for the 4402 or 4402-12 module to operate. It is possible to add more 4402 or 4402-12 modules to the POINT I/O base by adding a 1734-EP24DC sup- ply to the system.

  • Page 16: Remove Power Before Servicing In A Hazardous Environment

    1.4.2 Installation 1) Verify that the wiring base is correctly keyed for the 4402 module. If it is not, use a small bladed screwdriver to rotate the keyswitch on the mounting base until it matches the keying on the 4402 module.

  • Page 17: Install The Removable Terminal Block

    1.6 Power and Output Wiring Figure 1.1 below show that the 4402 obtains its 24 Vdc power from the 24 Vdc supply that is used to power the POINT I/O drop. The 4402 can source 1.5 A per output, 2.5 A per module @ 25°C. This current load must be considered when designing the system to assure that the 10 A maximum load on the internal bus is not exceeded.
  • Page 18 REQUIRED TASK: H 4402 User Manual ARDWARE NSTALLATION Notes ADVANCED MICRO CONTROLS INC.

  • Page 19: Determine Which Procedure To Use

    Configuration Table 2.1 CompactLogix 5370 Connection Parameters 7) Click on Next and select the RPI time. The minimum RPI time for the 4402 is two milliseconds, with five milliseconds or above recommended. The 4402 module will now appear in the project tree and three new data tags will have been created, Local:X.I.Data[Y], Local:X.O.Data[Y] and Local:X.C.Data[Y] where "X"...

  • Page 20: Procedure For Ethernet/Ip Adapters

    In this procedure, you will set two RPI times. The RPI time for the adapter controls how quickly discrete I/O points attached to the adapter are updated. This RPI time is not used by the 4402 but must still be set. The RPI time of the 4402 controls the rate of updates to the module.

  • Page 21: Procedure For Devicenet Adapters

    Table 2.2 CompactLogix 5370 Connection Parameters 13) Click on the [Next] button and select the RPI time. Because the AMCI 4402 is a Specialty I/O module, it will only use direct connections to communicate with the scanner module. Although any value down to three milliseconds can be selected, AMCI does not recommend values below ten milliseconds.

  • Page 22: Procedure For Controlnet Adapters

    NSTALLATION 2.2c Procedure for DeviceNet Adapters (continued) 12) Click on the 4402 and then click on the [Change icon…] button. Select one of the built in icons that Rockwell Automation offers. 13) Click on [Next>] and then click on [Finish] to complete the installation of the AMCI 4402 EDS file to the RSNetWorx system.
  • Page 23 Table 2.3 CompactLogix 5370 Connection Parameters 13) Click on the [Next] button and select the RPI time. Because the AMCI 4402 is a Specialty I/O module, it will only use direct connections to communicate with the scanner module. Although any value down to three milliseconds can be selected, AMCI does not recommend values below fifteen milliseconds.

  • Page 24: Rsnetworx For Controlnet Setup (Optional)

    10) Click on 4402_r01.eds file name so that it is highlighted. 11) Click on [Next>] to assign an icon to the device. 12) Click on the 4402 and then click on the [Change icon…] button. Select one of the built in icons that Rockwell Automation offers.

  • Page 25: Buffering Data

    EADING ATA FROM THE This section covers the data format of the tags assigned to the 4402 when it was created. Sample code for the 4402, including sample code with Add On Instruc- tions, is available on our website, www.amci.com.

  • Page 26: Status Word

    Set to ‘0’ when the output on channel 0 is based on its default Bit 0 - CH0 Real Time Updates Enabled: parameters. Set to ‘1’ when the output on channel 1 is based on the last values written to the 4402 for the channel.
  • Page 27 Bit 15 - Acknowledge Bit: control the data transfer to the 4402. This bit is set to ‘1’ when the Transmit bit is ‘1’ and the pro- gramming data has been accepted. This bit is set to ‘0’ when the Transmit bit is ‘0’.
  • Page 28 4402 4402 User Manual EADING ATA FROM THE Notes ADVANCED MICRO CONTROLS INC.

  • Page 29: Data Format

    This section covers the data format you must use when writing to the 4402. This data must be written to the output tags assigned to the 4402 when it was added to the project tree. Sample code for the 4402, including sample code with Add On Instructions, is available on our website, www.amci.com.

  • Page 30: Control Bits Description

    Handshake protocol initialization bit. Used with the Acknowledge bit in the input data Bit 15 - Transmit Bit: to control the data transfer to the 4402. The remaining bits in this word are only acted upon when the  Transmit bit makes a 0 1 transition.

  • Page 31: Programming Notes

    4.2 Programming Notes Use the following values for the Control Bits word to enable or disable real time updates on the 4402 outputs. When enabled, changes to the Duty Cycle and Dither Deviation parameters are acted upon as soon as they occur.
  • Page 32 ADVANCED MICRO CONTROLS INC. LEADERS IN ADVANCED CONTROL PRODUCTS...
  • Page 33 4402 4402 User Manual RITING ATA TO THE 20 Gear Drive, Plymouth Ind. Park, Terryville, CT 06786 Tel: (860) 585-1254 Fax: (860) 584-1973 http://www.amci.com...
