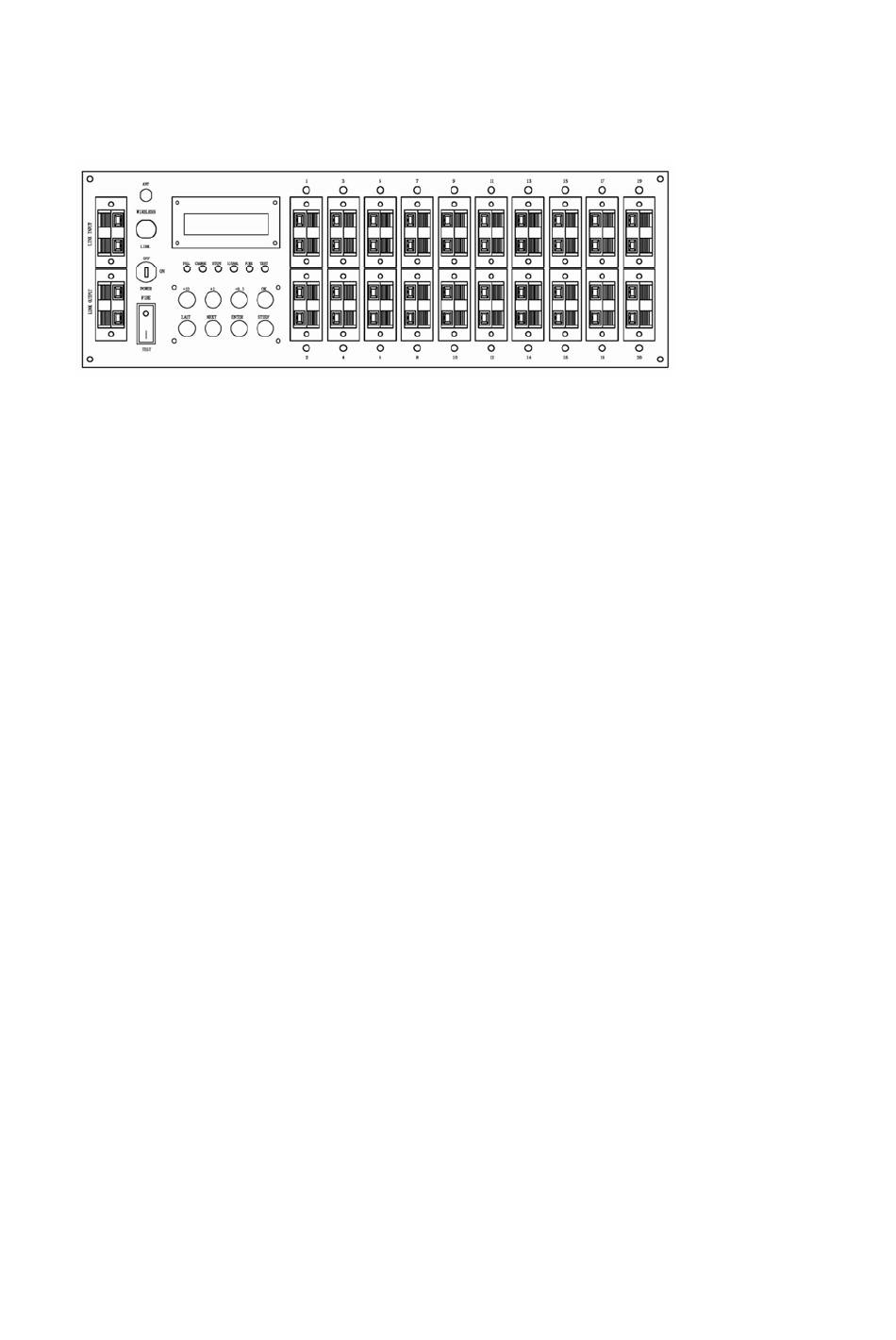

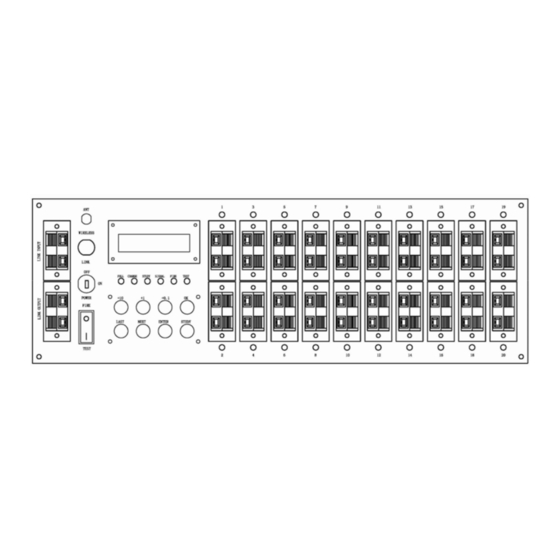

Instruction of FS 2012 type of Igniting Controller

Model: FS2012 Type

System features:

A. circuit ignition owns short circuit protection function, does not damage the chip.

B. Each host can control 20 groups of fireworks ignition

(150-200 meters for wireless remote control, 200-300 meters for wired remote control)

C. Way of Ignition:

1: ALL TIME IS SAME.

2: Each group can be set for different time.

D. Ignition time interval setting: 0.1-99.9 seconds

E. Both stand-alone and multiple machines in series are available.

F. Character type LCD display.

G. Use the rechargeable batteries, battery power can be checked

H. Even if the batteries are used up or removal, program design is still kept the same, must

be re-set for elimination.

System parameters:

Ignition storage battery parameters 12V. 3.2AH (6V X 2PCS)

Ignition instant ignition voltage ≥ 12V

Ignition instant ignition current ≥ 2 AH

Remote Control Battery: 9V battery (9V X 2PCS)

A. Power Supply Selection

Table of Contents

Do you have a question about the FS2012 and is the answer not in the manual?

Page 1 Instruction of FS 2012 type of Igniting Controller Model: FS2012 Type System features: A. circuit ignition owns short circuit protection function, does not damage the chip. B. Each host can control 20 groups of fireworks ignition (150-200 meters for wireless remote control, 200-300 meters for wired remote control) C.
Page 2 INT. means built-in power supply EXT. means external power supply External power supply 12-18V 1.3A-3.2A B. Power lock is set at ON position, if the button switch is in the FIRE state, shown as (-SWITCH-) FATAL ERROR, Please turn off the power. Switch to TEST state after a reboot. C.
Page 3 G: Code checking 1: Set WIRELESS / LINK on WIRELESS position, code checking operation can be processed when ignition switch is placed at TEST position, and ignition error in starting up can be prevented. 2: Press OK and FIRE button on remote control and STUDY button on ignition, STUDY indicator lights means completion of the code checking;...
Page 4 connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices). This equipment complies with Part 15 of FCC RF Rules.
