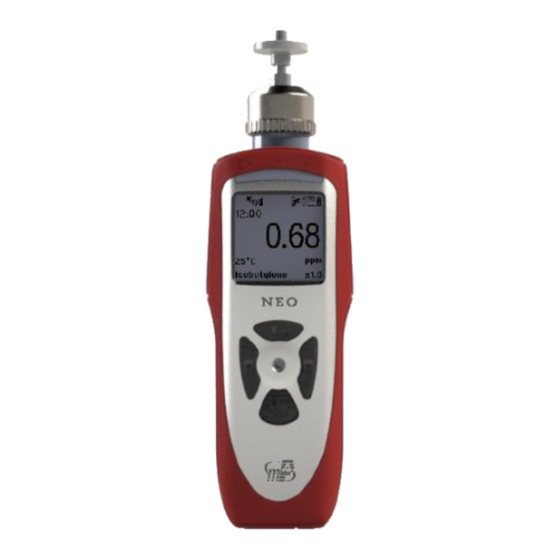

mPower Electronics MP182 EXT Quick Start Manual

NEO
Quick Start Guide
mPower Electronics Inc.
3046 Scott Blvd. Santa Clara, CA 95054
www.mpowerinc.com
info@mpowerinc.com
PN: M011-4011-000
Warning
• Never operate the monitor when the cover is removed.
• Remove the monitor cover only in area known to be non-
hazardous.
• Use only mPower's sensor and accessories. Substitution of
components will impair suitability for intrinsic safety and void
warranty.
• It is recommended to bump test with a known concentration
gas to confirm the instrument functions properly before use.
• For maximum safety, the accuracy of the instrument should
be checked by exposing it to a known concentration
calibration gas before each day's use.
• Ensure that the gas inlet is not blocked.
• When replacing batteries, dispose of old ones properly.
• To achieve the optimal test results, it is recommended to
preheat the unit for 2 minutes after entering the test
interface
• Ensure that the water-trap filter is clean & replaced regularly.
• Don't remove the sensor. Zero and span calibration is
required once the sensor is moved.
•
Before use, ensure that the colorless ESD layer on the display
is not damaged or peeling. (The blue protective film may be
removed.)
Avertissement
• N'utilisez jamais le moniteur lorsque le couvercle est enlevé.
• Retirer le couvercle du moniteur et la batterie uniquement
dans une zone connue comme non dangereuse.
• La substitution de composants compromettra l'aptitude à la
sécurité intrinsèque et annulera la garantie.
• Il est recommandé de tester avec un gaz de concentration co
nnu pour confirmer que l'instrument fonctionne correctemen
t avant de l'utiliser.
• Avant l'utilisation, assurez-vous que la couche ESD
incolore de l'écran n'est pas endommagée ou épluchée.
(Le film protecteur bleu peut être enlevé.)
Read Before Operating
The NEO's User's Guide must be carefully read
by all individuals who have or will have the
responsibility of using, maintaining or servicing this
product. The product will perform as designed only if
it is used, maintained and serviced in accordance with
the manufacturer's instructions.
Caution
⚫ Change battery only in an area known to be
non-hazardous.
⚫ Use only mPower's battery pack PN: M011-
3002-000.
Attention
⚫ Changez la batterie uniquement dans une zone
connue pour être non dangereuse.
⚫ Utiliser uniquement la batterie mPower PN:
M011-3002-000.
v1.12
The user interface has four-key operation, one big
LCD with LED backlight, four red alarm LEDs, and
one buzzer.
Gas Inlet
Sensor
Left Key
(Esc/Cursor
Moving)
Down Key
(Power/Number
Decrease)
Charge/Comm Por
2

WARNINGS

User Interface

Water-Trap Filter
LED Alarm
LCD
Up Key
(Confirm/
Number Increase)
Right Key
(Enter/Cursor
Moving)
t
1
Buzzer
3
