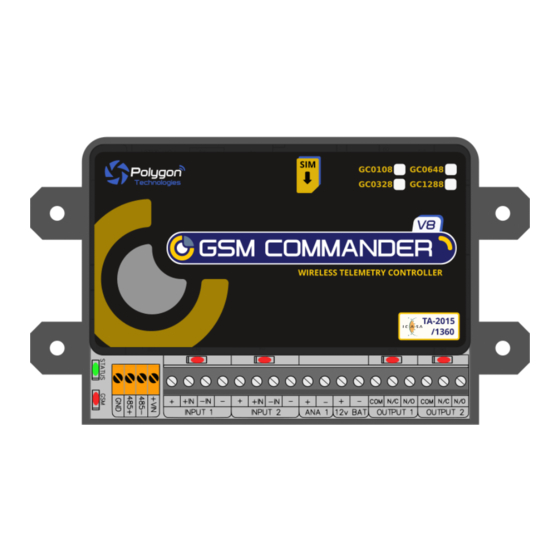

GSM Commander GC0108 Manual
  1. Manuals
  2. Brands
  3. GSM Commander Manuals
  4. Controller
  5. GC0108
  6. Manual

GSM Commander GC0108 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

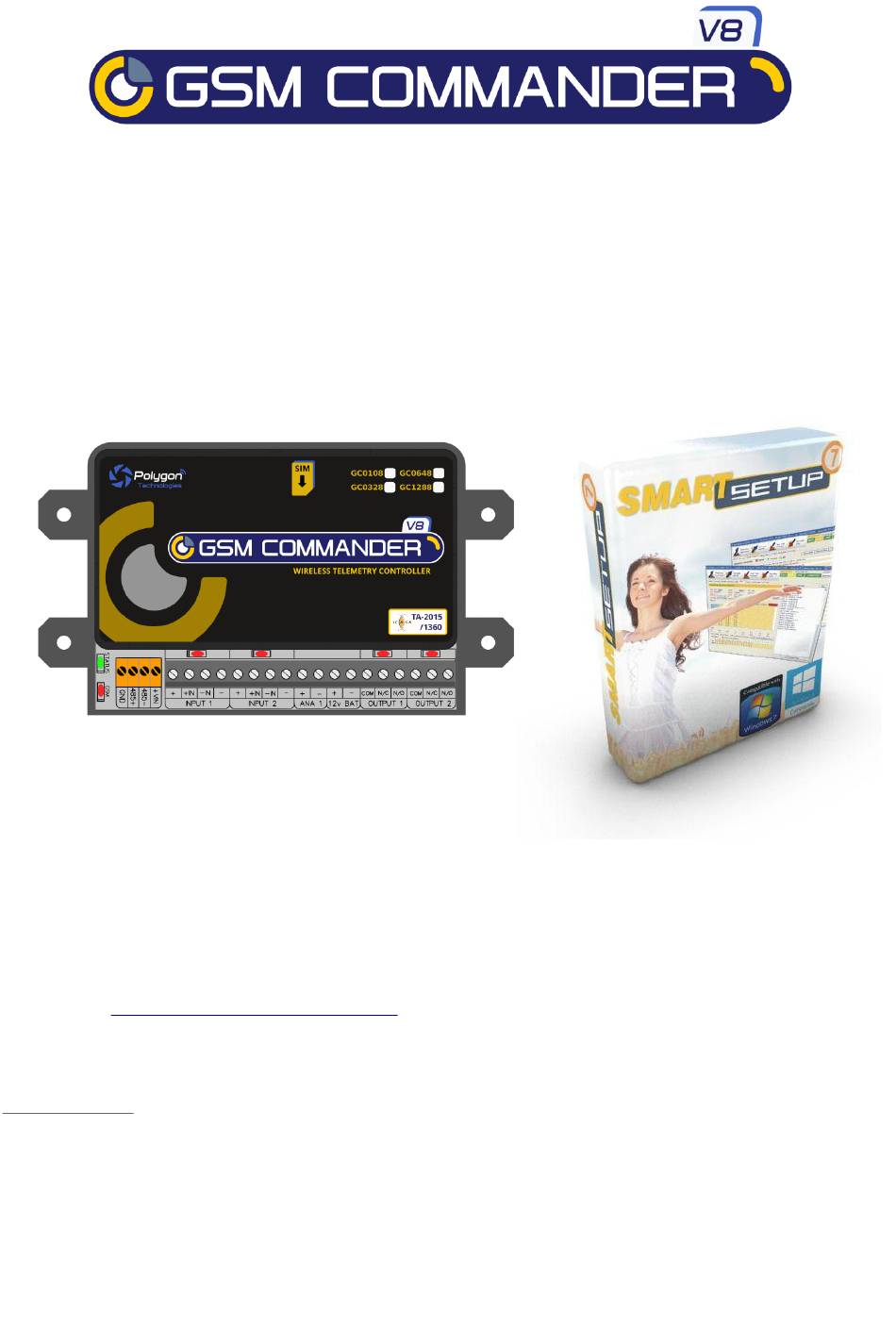

User Manual for GC0108, GC0328, GC0648,
GC1288
Applicable to software package Version 8.00 and up
Revision: V8.00 Last Edited 11 May 2023
Before Attempting to connect or operate this product, please read these instructions in its entirety
This manual is intended to provide detailed technical specifications and explanations, to the basic
user as well as the more technically-minded person. This manual is a live document, and will be
updated often with new information. Please ensure that you have the latest version, by checking our
website at: http://www.gsmcommander.com.
Changelog:
CDH May 2023 – Initial release of V8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GC0108 and is the answer not in the manual?

Questions and answers

Related Manuals for GSM Commander GC0108

Summary of Contents for GSM Commander GC0108

  • Page 1 User Manual for GC0108, GC0328, GC0648, GC1288 Applicable to software package Version 8.00 and up Revision: V8.00 Last Edited 11 May 2023 Before Attempting to connect or operate this product, please read these instructions in its entirety This manual is intended to provide detailed technical specifications and explanations, to the basic user as well as the more technically-minded person.

  • Page 2: Table Of Contents

    Outputs Temperature Sensor Analog Input Battery Input Expansion Unit Dimensions of Expansion Unit Status LEDs Testing the GSM Commander Configuration Via PC Configuration via SMS Set Administrator number Clear Administrator number Check Administrator number Check Airtime Add a Number to the list...

  • Page 3: Features

    1. F EATURES * Only able to view the current status of the unit via Airdrive. © Polygon Technologies. All rights reserved Page...

  • Page 4: Specifications

    2 x SPDT Relay Contact rating: 8Amp DC (10 - 48V) or Digital Outputs 4amp AC (110 – 400V). Expandable to maximum of 32* 1 x Analog input 8bit resolution 0-10V/4-20mA * Analog Inputs (Not available on GC0108) IO Connector type Rising clamp terminals 2G Frequency bands GSM/GPRS/EDGE 900/1800 MHz...
  • Page 5 4. D IMENSIONS © Polygon Technologies. All rights reserved Page...

  • Page 6: Installation

    Please Note: While the GSM Commander has fairly rugged internal power supply circuitry, no special provision for lightning protection is made. If the GSM Commander is used in an area that is prone to thunderstorms, it is advisable to use a commercially available lightning suppressor (The same applies to inputs or outputs that are connected to wires longer than 2 or 3 meters).

  • Page 7: Antenna

    1-2 bars of signal. If the signal is too weak, the GSM Commander may have trouble sending or receiving SMS messages. In these cases, try and find a better location, or order one of our special antennas.

  • Page 8: Optically - Isolated Digital Inputs

    5.8. Optically - Isolated Digital Inputs The GSM Commander itself provides 2 signal inputs. The number of inputs can be expanded by the addition of Expansion modules, up to a maximum of 32 inputs (depending on type). Each of these inputs have 4 terminals associated with them: –...
  • Page 9 The + and – terminals are internally connected to the input power supply of the GSM Commander via a fuse and a diode. These terminals are provided to make it easy to connect dry contacts to the GSM Commander.

  • Page 10: Outputs

    5.9. Outputs The GSM Commander itself provides 2 x 8A (DC) Relay outputs. The number of outputs can be expanded by the addition of Expansion modules, up to a maximum of 32 outputs (depending on type). Each of these inputs each have 3 terminals associated with them:.

  • Page 11: Temperature Sensor

    5.10. Temperature Sensor One can connect 2 temperature sensors to the GSM Commander (at the expansion port via a temperature interface module) to measure temperature and allow the GSM commander to perform certain tasks if the temperature falls above or below a certain point. The sensor provides an accuracy of 2°C.

  • Page 12: Battery Input

    The output of the circuit above feeds to an Analog-to-Digital converter with a reference voltage of 0.98V, and a resolution of 8 bits. The full-scale input voltage to the GSM Commander is therefore 10.8V. The range of the analog input can easily be increased by the addition of a resistor in series with the analog input.

  • Page 13: Expansion Unit

    In cases where the GSM Commander is used in conjunction with a large system with its own battery (such as UPS systems), the battery terminals of the GSM Commander can be safely connected to the large (12V) battery, and the GSM Commander can then monitor the battery voltage for you (only while power is NOT supplied to the power input connector).
  • Page 14 10way ribbon cable (labelled IN and OUT). Typically the ribbon cable used when the expansion unit is installed next to the GSM Commander. If you have more than one expansion unit, you can daisy chain them using ribbon cables connected to the IN and OUT terminals as shown, or you can just connect them in parallel using the screw terminals as shown.
  • Page 15 Expansion Connection (continued) You are also able to use a combination of ribbon cable and screw terminal connections. This is ideal if you are planning to have one expansion unit next to the GSM Commander and another installed remotely. © Polygon Technologies. All rights reserved...
  • Page 16 ONLY. DIP setting The DIP setting on each expansion unit will determine where in the IO space of the GSM Commander, the expanded inputs and outputs will be mapped. The switches are labelled 1,2,3,4 on the switch itself, and 1,2,4,8 shown on the PCB. Please ignore the 1,2,3,4 on the switch.
  • Page 17 DIP Settings (continued) Here is a legend to show how other expansions in the chain should be set up (the maximum number of inputs and outputs supported, is model dependant) Expansion Unit Power Each Expansion unit has both a 12V DC jack and battery input, so that it could also be powered by a separate power supply and battery.

  • Page 18: Dimensions Of Expansion Unit

    5.14. Dimensions of Expansion Unit 5.15. Status LEDs The GSM Commander has 2 LEDs to show the current status of the GSM Commander. The red LED, labeled “GSM”, shows the status of the internal GSM cellular engine, while the green LED, labeled “STATUS”, shows the status of the GSM Commander as a whole.
  • Page 19 © Polygon Technologies. All rights reserved Page...

  • Page 20: Testing The Gsm Commander

    5.16.1. Status Request The GSM Commander (even with a blank configuration) has a built-in test feature. If the GSM Commander receives “TEST GSMC” as an SMS message, it will reply to the number that sent the message, with the following text: DT=01/01/2013-12:00:00 <...

  • Page 21: Configuration Via Pc

    (See 6.5) SIM card(s) (See 6.4) Please note: The GSM Commander will eventually startup if no SIM card is inserted, but there would be no GSM functionality, which means none of the GSM features will work. Follow these steps: Step 1:...
  • Page 22 Lock Setup 6.2.1. Numbers Tab This tab allows the user to program the GSM Commander with the numbers they wish the GSM Commander to communicate with and listen to. The FIRST number in the list is defined as the ADMINISTRATOR number. Only the Administrator may send configuration SMS messages to the device.
  • Page 23 6.2.5. Status Tab This tab allows the user to monitor the status of GSM Commander (while connected to PC) with regards to: GSM Status GPRS/LTE Status Power Status Temperature Status Current Battery Voltage (if a battery is connected) Current Analog Value...

  • Page 24: Configuration Via Sms

    This command can ONLY be sent from the administrator number(if one exists), otherwise it can be sent from any number . ADMIN SETADM 0831234567 This will store “0831234567” as the new administrator number. The GSM Commander will reply with a confirmation message. 7.2.

  • Page 25: Check Administrator Number

    GSM Commander, the administrator must send: ADMIN STATEMENT 8 ON ADMIN STATEMENT 8 OFF This will either enable(ON) or disable(OFF) statement 8 respectively. The GSM Commander will reply with a confirmation message. © Polygon Technologies. All rights reserved...

  • Page 26: Override Gprs Settings

    7.8. Override GPRS Settings This set of commands allows you to override the GPRS settings that the GSM Commander may have been configured with and can only be sent from the administrator number. These override settings are non-volatile, which means their effect will remain after power has been cycled.

  • Page 27: If-Then Behaviour Statements

    8. IF-THEN B EHAVIOUR STATEMENTS The GSM Commander is configured by defining a number of behaviour statements. Each statement takes the form of an IF-THEN pair. You are thus able to select certain trigger conditions that will cause desired actions to be performed. Any combination of IF and THEN parts can be assembled into complete statements using the configuration software.
  • Page 28 If the “Stay on” call option is selected, the GSM Commander will hold the call until the caller ends the call.
  • Page 29 requirements. The user can choose between the following two options: Check if Above Threshold Check if Below Threshold Thus, if the user chooses “Check if Above Threshold”, then as soon as the specified variable goes above the specified threshold, the statement will trigger. The same applies to the other option, provided it's condition is met.
  • Page 30 Please Note: To use this option, you need to have a temperature probe connected to the expansion port of the GSM Commander via a temperature interface module. Also make sure that the correct type of probe is selected in the “Temperature Probe Configuration” box under the “Settings” tab in the software.
  • Page 31 The GSM Commander will check the prepaid airtime balance from time to time, and the statement will trigger if the balance is below the selected threshold.

  • Page 32: Supported Then Actions

    8.1.17. IF GSM Signal Strength A statement containing this IF condition, will trigger as soon as GSM signal strength meets the specified requirements. The user can choose between the following two options: Above X Below X Thus, if the user chooses “Below X”, then as soon as the GSM signal strength goes below the specified threshold, the statement will trigger.
  • Page 33 GPRS to our server to update the status of the “Log Status to Server”, GSM Commander on the AirDrive platform. (Log onto Airdrive to find out more) The recipient number can be defined in one of the following six ways:...
  • Page 34 8.2.8. THEN Copy Variable* A statement containing this Action, will copy a selected variable to another variable. 8.2.9. THEN Perform Math Operation* A statement containing this Action, will allow the GSM Commander to perform some basic math operations on the variables. 8.2.10.

  • Page 35: Multiple Actions To A Single If Condition

    SMS as well. The GSM Commander will always execute all statements that are eligible to trigger due to a certain event, in other words, the first statement that is triggered, does not void or “eat up” the event.

  • Page 36: Variables

    If you are using any “Variable” Modbus Expansion units with Your GSM Commander, these variables are populated with information collected via Modbus. The modbus address of these expansion units will determine which of the 16 variables are populated.

  • Page 37: Timed Operations

    The GSM Commander can also be configured to trigger a statement at a certain time on a certain date or group of days.

  • Page 38: 4-20Ma Analog Application Note

    To connect a 4-20mA sensor to your GSM Commander. GSM Commander Wiring: Connect a wire from the ‘+’ terminal(14V) of any Input from the GSM Commander to the supply voltage input of the sensor. Then connect a wire from the output(4-20mA) of the sensor to the ‘+’...

  • Page 39: Application Examples

    The second statement will cause a notification SMS to be sent to both +27821231234 and +27843214321. This is an example of how the GSM Commander can have multiple actions triggered by a single event © Polygon Technologies. All rights reserved...
  • Page 40 (in this case, an input becoming active). Note that the voice call will not “say” anything when the call is answered. One will typically use Caller ID to identify the GSM commander number, and this will be enough to let you know that there is something wrong at home.
  • Page 41 We use a second GSM commander unit at the remote location. Here we connect the warning light to output 1 of the GSM Commander so that if the relay is activated, the warning light will turn on. (exactly as described in section 6.9) Remote GSM Commander configuration: The configuration of the remote unit will be similar to example 2 (control an appliance).

  • Page 42: Troubleshooting

    Cause 2: GSM Commander not connected via USB Cause 3: GSM Commander USB drivers not installed. It is a good idea to disconnect all cables from the GSM Commander, and then reconnecting everything (power and USB cable). If the problem persists, please follow this procedure to verify...
  • Page 43 If this item is not present, the drivers are not installed correctly. To install your drivers, go to C:\Program Files\GSM Commander V7\drivers\drv_install and run “GSMC_USBXpressInstaller.exe or run “Reinstall drivers” (Start > All Programs > GSM Commander V7 > Reinstall drivers) . This will install your drivers.

  • Page 44: Guarantee

    17. G UARANTEE The GSM Commander is guaranteed for a period of 24 months against defects in materials or workmanship. Should your product become defective during the guarantee period it will be repaired or replaced at the sole discretion of Polygon Technologies under the following conditions: A: The unit must not have been opened or otherwise tampered with.

  • Page 45: Manufacturer Contact Details

    19. M ANUFACTURER ONTACT DETAILS Polygon Technologies may be contacted at: Email: Info@gsmcommander.com Web: www.gsmcommander.com Telephone: +27(0)21 9817062 Postal Address: 7 Gert Kotze Street Brackenfell 7561 South Africa © Polygon Technologies. All rights reserved Page...
