Summary of Contents for Elfa DS9568

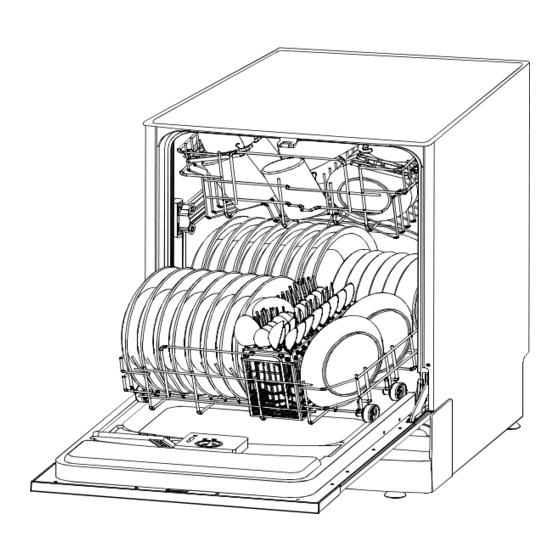

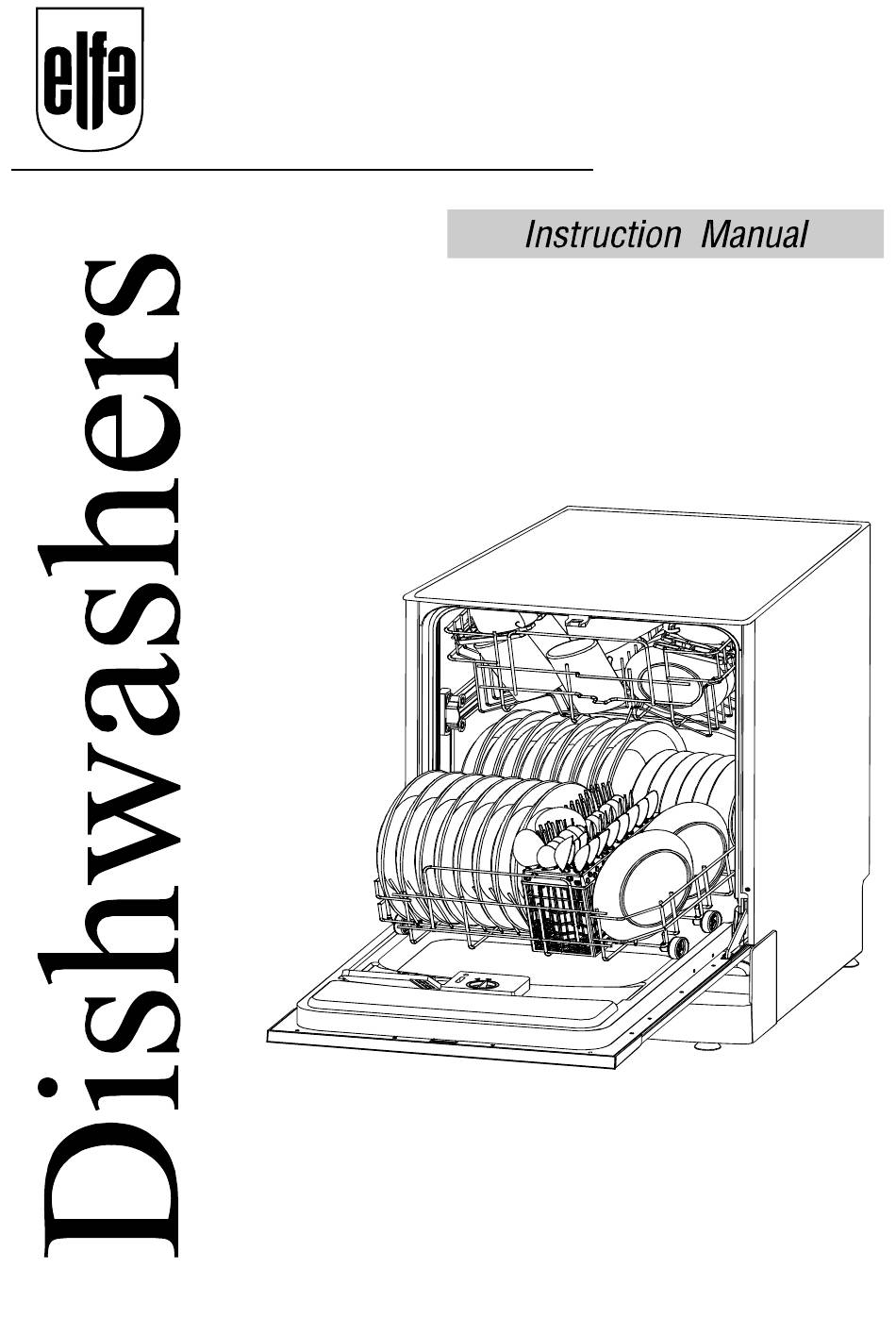

- Page 1 DS9568...
-
Page 2: Table Of Contents
Dear Customer, Please read this User Information carefully and keep it to refer to at a later date. Pass it on to any subsequent owner of the appliance. Control Panel............2 Dishwash er Features...........2 This manual contains sections of Safety Instructions, Operatin g Instructions, Installation Instructions and Troubleshooting Tips etc. - Page 3 Under certain conditions, Hydrogen gas may be produced in a hot-water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE.If the hot-water system has not been used for such a period, before using the dishwasher turn on all hot-water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas.
-
Page 4: Control Panel
To get the best performance from your dishwasher,read all operating instructions before using it for the first time. Inten sive Heavy Rap id Normal Rinse Soak 3 In 1 Program indicator light: when you select washing Half washing butto n :To select half washing. -
Page 5: Rinse Aid
Before usi ng your dishwasher for the first time: A. Fill the rinse aid dispenser B. Function of detergent Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, spot and streak free drying. Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. - Page 6 Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Most of commercial quality detergents are suitable for this purpose. Concentrated Detergent Based on their chemical composition, dishwasher can be split in two basic types: conventional, alkaline detergents wi th caustic components low alkaline concentrated detergents with natural enzymes The use of “heavy”...
-
Page 7: Detergent
Fill in detergent Fill the detergent dispenser with detergent. The marki ng indicates the dosing levels , as illustrated on right: The place of main wash cycle detergent placed , “MIN”means approximately 20g of detergen. The place of pre-wash cycle detergent placed , approximately 5g of detergent Please observe the manufacturers dosing and storage recommendations as stated on the detergent packaging. -
Page 8: How To Use The 3In1 Programme
Your dishwasher has a 3 in 1 program which needs not salt and rinse aid but a 3 In1 tablet. And this dishwasher comes with a 3 in 1 tablet container as an accessory. NOTE: Only 3 in 1 program uses 3 in 1 tablet. If using 3 in 1 tablet in other programs, the appliance will not get a best performance. - Page 9 For best performance of the dishwasher, follow these loading guidelines. Features and appearance of racks and silverware baskets may vary from your model. Attention before or after Loading the Dishwasher Racks Scrape off any large amounts of leftover food. It is not necessary to rinse the dishes under running water.
- Page 10 We recommend that you place large items which are most difficult to clean in to the low er rack: pots, pans, lids, serving dishes and bowls, as shown in the figure to the right. It is preferable to place serving dishes and lids on the side of the racks in order to avoi d blocking the rotation of the top spray arm.
-
Page 11: Not Suitable Fo R The Dishwasher
Silverware Basket Silverware should be placed in the silverware basket with handles at the bottom: If the rack has side baskets, the spoon should be loaded individually into the appropriate slots, especially long utensils should be placed in the horizontal position at th e front of the upper rack. -
Page 12: At The End Of The Wash Cycle
shes and items of cutlery must not lie inside one another, or cover each othe r avoid damage to glasses, they must not touch Load large items which are most difficult to clean into the lower rack he upper rack is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups Attention! Long bladed knives stored in an upri ght position are a potential hazard! -
Page 13: Wash Cycle Table
For the heaviest soiled loads, -wash(45℃ such as pots,pans,casserole Wash (70 ℃) Intensive 5/25g. dishes and dishes that have 1.55 17.7 Rinse (70 ℃) been sitting with dried food Drying on them for a while. Pre-wash For heavy soiled loads, Pre-wash such as pots... -
Page 14: Turning On The Appliance
Turning on the Appliance Starting a cycle wash Draw out the lower and upper basket, load the dishes and push them back. It is commended That loading the lower basket first, than the upper one (see the section entitled "Loading the Dishwasher “... -
Page 15: Forget To Add A Dish
A forgotten dish can be added any time before the detergent cup opens. Open the door a little to stop the washing. Add forgotten dishes. After the spray arms stop working, you can open the door Close the door, the dishwasher will work after ten seconds. completely. - Page 16 It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings. To remove the spray arm, screw off the nut clockwise to take out the washer on top of the spray arm and remove the arm. Wash the arms in soapy and warm water and use a soft brush to clean the jets.
-
Page 17: Caring For The Dishwasher
Electrical Shock Hazard The installation of the pipes Disconnect electrical power before installing dishwasher. and electrical equipments should be done by professionals. Failure to do so can result in death or electrical shock. Installation preparation ● The installation position of dishwasher should be near the existing inlet and drain hoses and power cord. -
Page 18: Aesthetic Panel's Dimensions And Installation
【Figure1】 90 ° 90 ° Cabinet dimensions Less than 5mm between the top 820mm of dishwasher and 580mm cabinet and the Electrical, drain and water supply line outer door aligned entrances to cabinet. Space between cabinet bottom and floor 600 mm 【Figure2】... - Page 19 Install the hook on the aesthetic wooden panel and put the hook into the slot of the outer door of dishwasher(see figure 4a). After positioning of the panel , fix the panel onto the outer door by screws and bolts(See figure 4b) . Hop hook 【Figure4a】...
-
Page 20: Tension Adjustment Of The Door Spring
Tension adjustment of the door spring ● The door springs are set at the factory to the proper tension for the outer door. If aesthetic wooden panel are installed, you will have to adjust the door spring tension. Rotate the adjusting screw to drive the adjustor to strain or relax the steel cable(see figure 5). -
Page 21: Dishwasher Installation Steps
Dishwasher installation steps ● Install the furniture door to the outer door of the dishwasher using the brackets provided. Refer to the template for positioning of the brackets. Adjust the tension of the door springs by using an Allen key turning in a clockwise motion to tighten the left and right door springs. - Page 22 Installation the plinth ● 1 Unscrew the tw screws and remove the plinth from the dishwasher. [Figure a] plinth [Figure a] screw 2 Unscrew the two screws and adjust the distance of left and right plinth tab to your need. The adjustable range is from 39mm to 134mm.
-
Page 23: About Electricity Connecting
Dishwasher must be level for proper dish rack operation and wash performance. Place level on door and rack track inside the tub as shown to check that the dishwasher is level. level the dishwasher by adjusting the four leveling legs individually. When level the dishwasher, pl s pay attention not to let the dishwasher tip over. -
Page 24: Water Connection
In order to avoid that there is more water staying in the inlet hose, please close the hydrant after using.(For the models: no safety inlet hose.) Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. - Page 25 If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.
-
Page 26: Before Calling For Service
Before Calling for Service Review the charts on the following pages may make you be free of calling for service. Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other circuit breaker acted appliances sharing the same circuit with the dishwasher Make sure the dishwasher is turned on and the door is Power supply is not turned on... -
Page 27: Error Codes
Combination of soft Use less detergent if you have soft water and select a water and too much shortest cycle to wash the glassware and to get them clean. detergent Tea or coffee stains using a solution of 1/2 cup of bleach and 3 cups warm water to remove the stains by hand. -
Page 28: Technical Information
Height : 820mm(adjustable+10mm) Width : 595mm Depth : 540mm Voltage connected Load : see rating label Water pressure: 0.04-1.0MPa Hot water connection : max 60 ℃ Power supply: see rating label Capacity: 12 Place settings...
