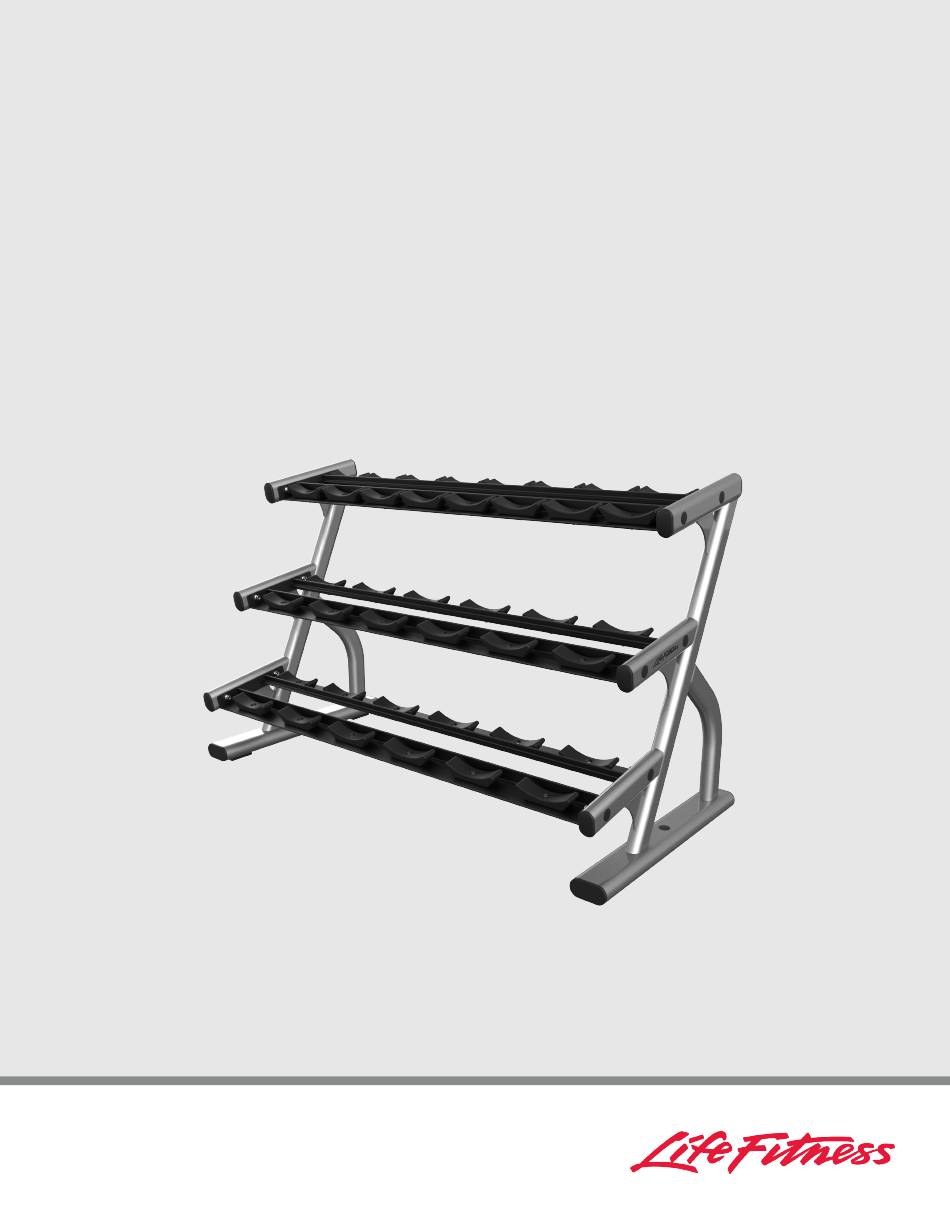

- Page 1 Optima Plus 3-Tier Racks OP-AR3, OP-DB3HX, OP-DB3LS, OP-DB3SS Owner's Manual 1011899-0001 REV AA...
- Page 3 User and Service Documents Link Operation Manuals and other Product Information available at https://www.lftechsupport.com/web/document-library/documents https://www.lftechsupport.com/web/document-library/documents https://www.lftechsupport.com/web/document-library/documents https://www.lftechsupport.com/web/document-library/documents https://www.lftechsupport.com/web/document-library/documents https://www.lftechsupport.com/web/document-library/documents Trobareu el manual de funcionament i altra informació de producte a https://www.lftechsupport.com/web/document-library/documents Mae Llawlyfrau Gweithredu a Gwybodaeth Arall am Beiriannau ar gael yn https://www.lftechsupport.com/web/document-library/documents Die Betriebsanleitung und andere Produktinformationen erhalten Sie unter https://www.lftechsupport.com/web/document-library/documents...
-
Page 4: Corporate Headquarters
Latin America and Caribbean* Spain Hong Kong Life Fitness, Inc. Life Fitness IBERIA Life Fitness Asia Pacific LTD Columbia Centre III C/Frederic Mompou 5,1º1ª 32/F, Global Trade Square 9525 West Bryn Mawr Avenue 08960 Sant Just Desvern Barcelona 21 Wong Chuk Hang Road Rosemont, IL 60018 U.S.A. -
Page 5: Table Of Contents
2XL Corporation. PureGreen 24 is a trademark of Pure Green. © Copyright 2019, Life Fitness, a division of Brunswick Corporation. All Rights Reserved. Columbia Center III - 9525 West Bryn Mawr Ave., Rosemont, IL 60018 • 847-288-3300 www.lifefitness.com... -
Page 6: Safety
Inspection • DO NOT use or permit use of any equipment that is damaged and/or has worn or broken parts. For all LIFE FITNESS equipment use only replacement parts supplied by LIFE FITNESS. -
Page 7: Plate Loaded, Free Weight, And Body Weight Systems
• Never exceed the load rating for any plate loaded station, body weight station, bench or other free weight device; including specific weight rod and band peg limits. See machine specific section for load limit information. • Contact a LIFE FITNESS representative with any questions regarding proper weights and loading. Warnings and Cautions Warning labels indicate a potentially hazardous situation that could result in serious injury or death if the precautions are not observed. -
Page 8: Label Locations
Label Locations Accessory Rack (OP-AR3) Item Description Qty. Serial Number General Warning Page 8 of 26... - Page 9 Hex Dumbbell Rack (OP-DB3HX) Item Description Qty. Serial Number General Warning Page 9 of 26...
- Page 10 Dumbbell Rack (OP-DB3LS) Item Description Qty. Serial Number General Warning Page 10 of 26...
- Page 11 Dumbbell Rack (OP-DB3SS) Item Description Qty. Serial Number General Warning Page 11 of 26...
-
Page 12: Assembly
2. Assembly Component and Hardware List Components Item Description Qty. Left Frame Right Frame Tray Hardware Item Description Qty. Hardware Pack, OP-DB3-HDWR 3/8" Flat Washer M10 Hex Nylock Nut Hole Plug M10 x 25mm Bolt Tools Required • 16 mm Socket wrench •... -
Page 13: Assembly Procedure
Assembly Procedure Assemble Frame The following procedure applies to the OP-AR3, OP-DB3HX, and OP-DB3LS. 1. Loosely install bolts, washers, and hex nuts securing the trays onto the left frame using an 8mm Allen wrench and a 17mm socket wrench. Item Description Qty. -
Page 14: Tray
2. Loosely install bolts, washers, and hex nuts securing the trays onto the left frame using an 8mm Allen wrench and a 17mm socket wrench. Item Description Qty. Left Frame Tray M10 x 25mm Bolt 3/8" Flat Washer M10 Hex Nylock Nut 3. -
Page 15: Hole Plug
Install Hole Plugs The following procedure applies to the OP-AR3, OP-DB3HX, OP-DB3LS, and OP-DB3SS. Install hole plugs to frames using a rubber mallet. Item Description Qty. Frame Hole Plug Page 15 of 26... -
Page 16: Product Information Accessory Rack (Op-Ar3)
3. Product Information Accessory Rack (OP-AR3) Machine Weight: 168 lbs. 76 kg. Size: in. = 54 L x 29 W x 38 H cm = 137 L x 73 W x 96 H Live Area: in. = 54 L x 53 W cm = 137 L x 135 W Storage Capacity: 270 lbs./tier... -
Page 17: Hex Dumbbell Rack (Op-Db3Hx)
Hex Dumbbell Rack (OP-DB3HX) Machine Weight: 167 lbs. 76 kg. Size: in. = 54 L x 29 W x 38 H cm = 137 L x 73 W x 96 H Live Area: in. = 54 L x 53 W cm = 137 L x 135 W Storage Capacity: 270 lbs./tier... -
Page 18: Dumbbell Rack (Op-Db3Ls)
Dumbbell Rack (OP-DB3LS) Machine Weight: 286 lbs. 130 kg. Size: in. = 97 L x 29 W x 38 H cm = 246 L x 73 W x 96 H Live Area: in. = 97 L x 53 W cm = 246 L x 135 W Storage Capacity: 650 lbs./tier 295 kg./tier... -
Page 19: Dumbbell Rack (Op-Db3Ss)
Dumbbell Rack (OP-DB3SS) Machine Weight: 200 lbs. 91 kg. Size: in. = 61 L x 29 W x 38 H cm = 155 L x 73 W x 96 H Live Area: in. = 61 L x 53 W cm = 155 L x 135 W Storage Capacity: 270 lbs./tier 120 kg./tier... -
Page 20: Maintenance Procedures Maintenance Schedule
• Hardware. Check for loosening. Tighten as required. • Frames. Inspect for wear and damage. • For paint chips. Fill in immediately with LIFE FITNESS touch-up paint. Once a Week • Visually inspect all hardware for loosening, tampering or wear. -
Page 21: Warranty What Is Covered
Who Pays Transportation and Insurance For Service If the Product or any covered part must be returned to a service facility for repairs, We, Life Fitness, will pay all transportation and insurance charges for the first year. You are responsible for transportation and insurance charge after the first year. -
Page 22: Warranty Coverage
Warranty Coverage NOTE: There is no warranty coverage for labor on Strength Products. Item 10 Years 5 Years 1 Year 90 Days Frame Hardware / Mechanical Items Not Specified Page 22 of 26... -
Page 23: Bolt To Floor Guidelines Introduction
6. Bolt to Floor Guidelines Introduction LIFE FITNESS designs its products to be stable when used as designed. Because strength training is dynamic, we cannot predict how users will ultimately use the products in all circumstances. Therefore, LIFE FITNESS recommends that strength training equipment be secured to a solid, level surface to stabilize and eliminate rocking or tipping over. -
Page 24: User And Service Documents Link Tools Required
Pullout Force LIFE FITNESS specifies Hilti™ static and dynamic anchors. According to the anchor manufacturer, the recommended design pullout force (in tension) for the specified anchors, when properly installed in cracked concrete, is provided in the side table. This table should be used for reference only; for additional and up-to-date information on the anchor capabilities or the design pullout force in other substrates, please consult Hilti directly at https://www.us.hilti.com. - Page 25 3. Wearing protective glasses, drill down into the flooring to the required depth as perpendicular as possible, ensuring that the foot thickness is being accounted for; refer to Anchor Selection and Foot Dimensions. 4. Insert fastener and tighten to 18 Foot-Pounds (24Nm) for 1/4” (6mm) anchor or 40 Foot-Pounds (54Nm) for 3/8” (8mm) anchor.
- Page 26 Foot Dimensions Use below image to determine foot specifications. Page 26 of 26...
