USER GUIDE
H11408 - Version 1 / 03-2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RACER120 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for audiophony RACER120

Summary of Contents for audiophony RACER120

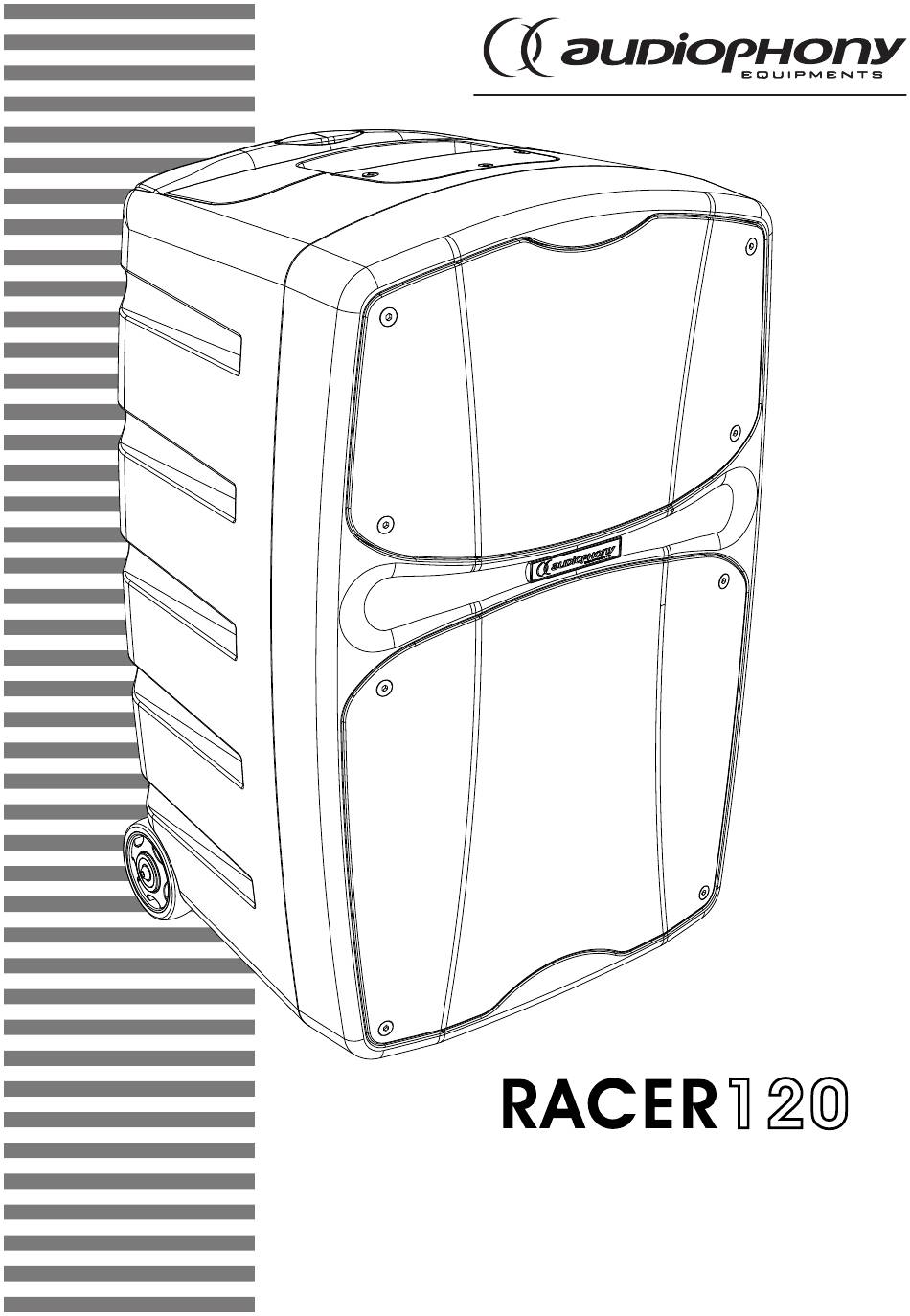

  • Page 1 USER GUIDE H11408 - Version 1 / 03-2023...

  • Page 2: Safety Information

    English 120W ® RACER120 - portable sound system With bluetooth multimedia player and optional uhf microphones 1 - Safety information Important safety information This unit is intended for indoor use only. Do not use it in a wet, or WARNING : extremely cold/hot locations.
  • Page 3 - Performance and sound quality - Built-in media player - Two UHF diversity receiver slots The RACER120 is a powerful all-in-one system with excellent sound quality for all your on-the-go performances. It comes standard with a USB/SD player, Bluetooth TWS receiver and a mixer for connecting two additional ®...
  • Page 4 English 120W ® RACER120 - portable sound system With bluetooth multimedia player and optional uhf microphones 3 - The different modules Back A - Optional UHF receiver module. See paragraph 5 for more details. B - USB/SD/Bluetooth ® module assigned to channel 1.
  • Page 5 English 120W ® RACER120 - portable sound system With bluetooth multimedia player and optional uhf microphones 4 - Description of modules 4 - 1 : USB/SD/Bluetooth TWS module ® 1 - SD card slot 2 - Player display 3 - IR diode for receiving remote...
  • Page 6 Switch to Bluetooth mode : Short press on MODE. Pairing : To pair your RACER120 switch to Bluetooth mode and the display will show «Bluetooth Disconnected». Now you need to pair a Bluetooth source. Turn on your Bluetooth source and perform a device search.
  • Page 7 English 120W ® RACER120 - portable sound system With bluetooth multimedia player and optional uhf microphones Multimedia player mode displays Indicates musical mode. Indicates the playback mode. To switch from one mode to another, use key. The top line shows the number of the current song and the bottom line shows the total number of songs.

  • Page 8: Remote Control

    English 120W ® RACER120 - portable sound system With bluetooth multimedia player and optional uhf microphones 4 - 2 : Remote control The infrared remote control of your player allows you to remotely control CHANNEL PLAY/PAUSE certain functions of your player for your SD/USB or Bluetooth sources.

  • Page 9: Master Section

    Please replace the fuse with an identical model only. Fuse T2 AL 250V. 3 - ON-OFF-CHARGE switch. - In the ON position: The RACER120 is powered - In the OFF position: The RACER120 is off. - In the CHARGE position: The RACER120 batteries are charging.
  • Page 10 English 120W ® RACER120 - portable sound system With bluetooth multimedia player and optional uhf microphones Precautions for using the integrated battery 1 - This device is equipped with two 18 V / 7 Ah NP batteries for an autonomy of 6 hours on average depending on the type of use.
  • Page 11 English 120W ® RACER120 - portable sound system With bluetooth multimedia player and optional uhf microphones 5 - Installation of optional UHF modules: RACER-GoMod (F5 or F8) 5 - 1 : A single module Before handling, make sure that the RACER is switched off.
  • Page 12 English 120W ® RACER120 - portable sound system With bluetooth multimedia player and optional uhf microphones 5 - 2 : Two modules Before handling, make sure that the RACER is switched off. Remove the two covers. Connect the two antennas...

  • Page 13: Technical Data

    English 120W ® RACER120 - portable sound system With bluetooth multimedia player and optional uhf microphones 10 - Technical data 2 channels XLR/TRS combo Line/Mic 1 1/8" AUX channel Inputs 1 Bluetooth connexion 2 optional UHF microphones Output 1 TRS mix output Loudspeaker 10"...
  • Page 14 ® subjects to modifications without prior notice. That is why technical specifications and the products physical configuration might differ from the illustrations. Make sure you get the latest news and updates about the AUDIOPHONY products on www.audiophony.com ® is a trademark of HITMUSIC S.A.S - Zone Cahors sud - 46230 FONTANES - FRANCE AUDIOPHONY ®...
