Summary of Contents for Code Soft MC-5395

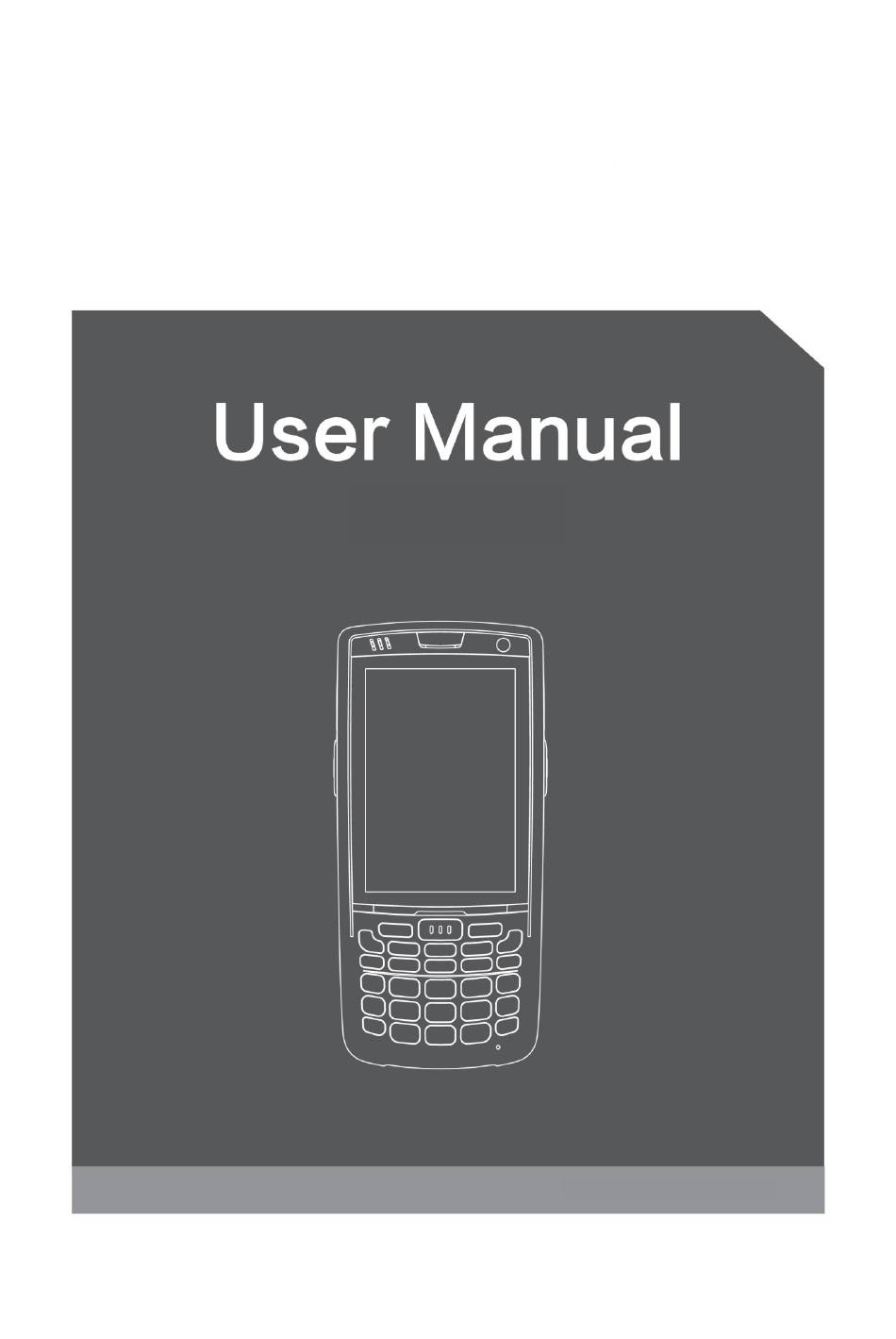

  • Page 1 ® CODE SOFT MC-5395...

  • Page 2: Table Of Contents

    4.3 GPS............................. 17 4.4 Connecting MC-5395 to a Computer ..................18 4.5 Synchronization......................... 18 5 Introduction to iScan of MC-5395 ..............20 5.1 Installing and Using iScan ....................... 20 6 Managing MC-5395 ....................21 6.1 Installing Software ........................21 6.2 Uninstalling Software........................

  • Page 3: Introduction

    MC-5395 User Manual 1 Introduction 1.1 Appearance of MC-5395 Figure 1-1 Front view of MC-5395 Figure 1-2 Rear view of MC-5395 - 1 -...

  • Page 4: Installing An Sd Card

    MC-5395 User Manual 1.2 Installing an SD Card To install an SD card, do as follows: 1. Push the card cover along the direction marked on the cover and open the cover. 2. Insert an SD card. 3. Press the SD card downward and lock the card along the IN direction marked on the cover.

  • Page 5: Installing A Sim Card

    MC-5395 User Manual 1.3 Installing a SIM Card To install a SIM card, do as follows: 1. Insert a SIM card along the direction, as shown in Figure 1-4. 2. Press the card cover downward. 3. Push the SIM card along the LOCK direction to lock the card cover.

  • Page 6: Disassembling The Battery Cover

    2. Pull out the battery cover. Figure 1-6 Disassembling the battery cover 1.6 Charging You can charge the MC-5395 in the following ways: 1. Charge the MC-5395 by using a charger. - 4 -...
  • Page 7  Always connect the MC-5395 to the AC power supply when you do not use it.  In Settings, set the time to sleep to a smaller value for the MC-5395 by selecting Home > Applications > Settings > Display > Screen Delay.

  • Page 8: Instructions On Mc-5395

    MC-5395 User Manual 2 Instructions on MC-5395 2.1 Power-on and Power-off After installing a SIM card and a battery and fully charging the MC-5395, you can use the MC-5395. To power on the MC-5395, press and hold the On/Off key for some time.

  • Page 9: Home

    Return key 2.4 Home The MC-5395 has five home pages. Slide to the left or right to switch among the pages. On any page, press the Home key (left function key) to return to the home page. Click any application on the home page to start the application.

  • Page 10: Basic Settings

    EDGE ★ Note The applications of the MC-5395 are often upgraded. Therefore, the status icons may be different from those on the MC-5395. The actual status icons prevail. 2.6 Basic Settings 2.6.1 Date and Time Setting To change the date and time in the MC-5395, do as follows: Select Settings >...
  • Page 11 MC-5395 User Manual 2.6.2 Display Settings To set display options, do as follows: Select Settings > Display and set display options such as Brightness, Wallpaper, Auto-rotate screen, and Font size. 2.6.3 Ringtone Setting Select Settings > Audio Profiles and click General/Silent/Meeting/Outdoor to set the ringtone in the corresponding mode.
  • Page 12 MC-5395 User Manual 2.6.4 Security Setting Select Settings > Reset > Factory date reset. Click Clear all. The MC-5395 starts to restore factory settings. ★ Caution This operation will clear the following data in the MC-5395:  Account  Data and settings of the system and applications...
  • Page 13 Click Default and select the desired input in the list. 2.6.6 Shortcuts You can add shortcut icons on the home page of the MC-5395. On the home page, click the application tray icon, select and drag the icon to be added to the home page.

  • Page 14: Call Function

    MC-5395 User Manual 3 Call Function 3.1 Making a Call To make a call, do as follows: 1. Enter a telephone number by pressing number keys. Click to make a call. 3. Click to terminate the call. Contact Call record...

  • Page 15: Sms And Mms

    MC-5395 User Manual 3.3 SMS and MMS Find the following icon: 1. Click and enter the message recipient and the text to be sent. 2. Click to send the message. 3. On the message editing page, press the menu key (yellow scan key) to open the menu and click Add Subject.

  • Page 16: Email

    You can send or receive emails. ★ Note To create an email account on the MC-5395, you need to set the account on a PC. For example, to create a QQ email account, log in to the QQ mailbox, click Settings in the upper right corner of the mailbox to access the account options.
  • Page 17 MC-5395 User Manual - 15 -...

  • Page 18: Network And Connection Synchronization

    After a GPRS data connection is established, you can access the Internet. To establish a GPRS data connection, ensure that a SIM card is installed in the MC-5395. Generally, the MC-5395 has configured Internet access. If you delete the default configuration by mistake , set the network as follows (assume that China Mobile’s network is used):...

  • Page 19: Gps

    Click to connect to the network 4.3 GPS The MC-5395 is equipped with a high -performance navigation chip and can obtain position information quickly and accurately. The manufacturer of the MC-5395, provides GPS Test, which is a GPS demonstration program.

  • Page 20: Connecting Mc-5395 To A Computer

    MC-5395 User Manual 4.4 Connecting MC-5395 to a Computer Connect the MC-5395 to a computer by using a USB cable so that files in the memory card, for example, pictures, videos, and music, can be transferred to the computer and processed in the computer.
  • Page 21 MC-5395 User Manual Set email synchronization frequency, notification, etc. Select the option to synchronize emails. - 19 -...

  • Page 22: Introduction To Iscan Of Mc-5395

    First of all, install iScan on the MC-5395 (for details on how to install iScan, see 6.1 Installing Software). After iScan is installed, the icon is displayed on the application page. Click the icon to start the software and select Barcode Scan.

  • Page 23: Managing Mc-5395

    2. Download software installation packages, store them on an SD card, and install the software by using file manager. 3. Connect the MC-5395 to a computer by using the USB cable and install software on the computer. First of all, install software such as APK installer, Pea, or 91 mobile assistant on the computer so that software can be installed in batches.

  • Page 24: Managing Applications

    MC-5395 User Manual 6.3 Managing Applications Press the menu key (yellow scan key) and click Manage apps. You can view the status of downloaded applications, applications in the SD card, and running applications and click any application to access the application information page where you can stop, uninstall, or suspend the application.

  • Page 25: Precautions And Troubleshooting

     Do not try to disassemble the MC-5395. Otherwise, the MC-5395 may be damaged.  Do not touch the screen surface of the MC-5395 by using a pen, a pencil or other sharp articles in case the screen may be scratched.

  • Page 26: Troubleshooting

    After being inactive for a period of time, the The MC-5395 is closed. inactive state. iMC-5395 is closed. The battery is used up. Replace the battery. The MC-5395 responds Too many files are stored Remove unused memos and records. If - 24 -...
  • Page 27 Too many applications are Remove applications installed on the installed on the MC-5395. MC-5395. The scan application is not Load iScan in the MC-5395. loaded. The MC-5395 does not Reading a barcode fails. Check that the barcode is not defective.
  • Page 28 MC-5395 User Manual Appendix 1 Accessories of MC-5395 Component Description MC-5395 Standard battery Power adapter Used to charge the battery. Straps Hand strap Package Used to communicate with the host or charge the USB data cable MC-5395. Instructions Warranty card...
  • Page 29 MC-5395 User Manual Appendix 2 Technical specifications of MC-5395 Item Description System Configuration Processor 1 GHz high-performance ARM Cortex-A9 processor Operating system Android 4.0 Memory 4 GB ROM+512MB RAM Expansion slot Mini SD card (up to 32 GB is supported) Display 3.5 inches, HVGA (320 X 480), TFT high brightness, LED backlight...
  • Page 30 MC-5395 User Manual WWAN GPRS/EDGE/WCDMA WLAN Wi-Fi 802.11b/g High-performance GPS chip Input/Input Interface USB port 1 (Micro USB port) Charger port 1 (DC port) RS232 port Data Collection Specification 1D Laser Scanner  4 mil Optical resolution Scan depth 3.81 cm - 60.98 cm 47°...
  • Page 31 CODE SOFT INTERNATONAL INFORMATION CO. LTD All Rights Reserved. This guide is prepared by CODE SOFT INTERNATONAL INFORMATION CO. LTD. According to the existing information. The content in this document is subject to update without notice. Without written approval of CODE SOFT INTERNATONAL INFORMATION CO.
