Summary of Contents for Geek G1 PRO

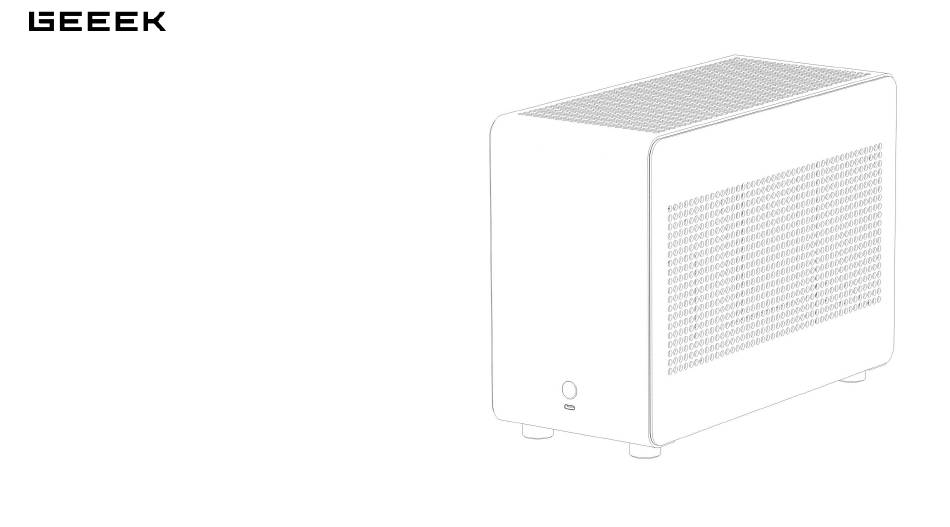

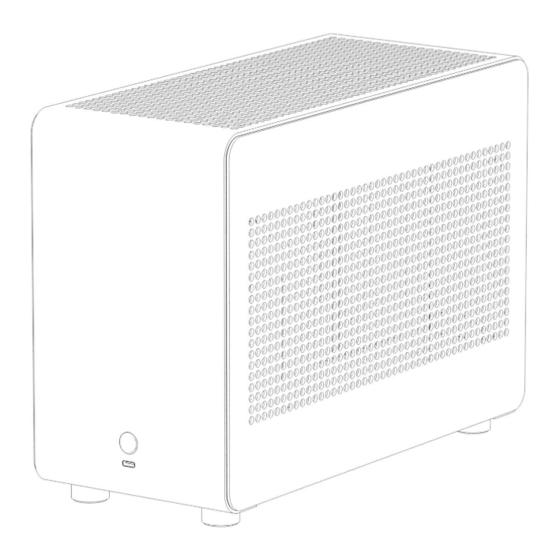

- Page 1 G1 PRO INSTALLATION GUIDE V2310-1...
- Page 2 Table of Contents / 目錄 Water Cooling Mode Build / 水冷模式組裝 Air Cooling Mode Build / 空冷模式組裝 Change to Air Cooling Mode / 調整至空冷模式...
- Page 3 Water Cooling Mode G1 PRO INSTALLATION GUIDE Remove the side panel / 移除側板...
- Page 4 Water Cooling Mode G1 PRO INSTALLATION GUIDE Remove the fan bracket / 移除風扇支架...
- Page 5 Water Cooling Mode G1 PRO INSTALLATION GUIDE Water cooling installation / 安裝水冷...
- Page 6 Water Cooling Mode G1 PRO INSTALLATION GUIDE Remove the PSU bracket / 移除電源支架...
- Page 7 Water Cooling Mode G1 PRO INSTALLATION GUIDE Water block and motherboard installation / 安裝水冷頭及主機板...
- Page 8 Water Cooling Mode G1 PRO INSTALLATION GUIDE PSU installation / 安裝電源供應器...
- Page 9 Water Cooling Mode G1 PRO INSTALLATION GUIDE 2.5" SSD or 3.5” HDD installation / 安裝硬碟 You will need to use the M3 screw for the 2.5" SSD and #6-32 screws for the 3.5" HDD / 2.5" SSD使用M3螺絲 ，3.5" HDD使用#6-32螺絲 2-4X...
- Page 10 Water Cooling Mode G1 PRO INSTALLATION GUIDE PCI-e riser installation / 安裝PCI-E顯示卡延長線...
- Page 11 Water Cooling Mode G1 PRO INSTALLATION GUIDE GPU installation / 安裝顯示卡 1-2X...
- Page 12 Air Cooling Mode G1 PRO INSTALLATION GUIDE Remove the side panel / 移除側板...
- Page 13 Air Cooling Mode G1 PRO INSTALLATION GUIDE Remove the fan bracket / 移除風扇支架...
- Page 14 Air Cooling Mode G1 PRO INSTALLATION GUIDE Top fan installation / 安裝上方風扇...
- Page 15 Air Cooling Mode G1 PRO INSTALLATION GUIDE Bottom fan installation / 安裝底部風扇...
- Page 16 Air Cooling Mode G1 PRO INSTALLATION GUIDE Motherboard installation / 安裝主機板 Highly recommend to install the CPU cooler and ram, power switch connector before installing the motherboard. 請先安裝 CPU散熱器及記憶體、電源開 關連接線到主機板 .
- Page 17 Air Cooling Mode G1 PRO INSTALLATION GUIDE 2.5" SSD or 3.5” HDD installation / 安裝硬碟 You will need to use the M3 screw for the 2.5" SSD and #6-32 screws for the 3.5" HDD / 2.5" SSD使用M3螺絲 ，3.5" HDD使用#6-32螺絲...
- Page 18 Air Cooling Mode G1 PRO INSTALLATION GUIDE PSU installation / 安裝電源供應器...
- Page 19 Air Cooling Mode G1 PRO INSTALLATION GUIDE PCI-e riser installation / 安裝PCI-E顯示卡延長線...
- Page 20 Air Cooling Mode G1 PRO INSTALLATION GUIDE GPU installation / 安裝顯示卡 1-2X...
- Page 21 Change to Air Cooling Mode G1 PRO INSTALLATION GUIDE Remove the PSU bracket / 移除電源支架...
- Page 22 Change to Air Cooling Mode G1 PRO INSTALLATION GUIDE Remove the PSU bracket / 移除電源支架...
- Page 23 Change to Air Cooling Mode G1 PRO INSTALLATION GUIDE Remove the motherboard bracket and rear panel / 移除主板支架及後背版...
- Page 24 Change to Air Cooling Mode G1 PRO INSTALLATION GUIDE Flipped the motherboard and rear panel bracket, then install the motherboard bracket and rear panel in the case 翻轉後安裝主板支架及後背版...
- Page 25 Change to Air Cooling Mode G1 PRO INSTALLATION GUIDE Flipped the HDD bracket and install it in the case / 翻轉及安裝硬碟支架...
- Page 26 Change to Air Cooling Mode G1 PRO INSTALLATION GUIDE PSU bracket installation / 安裝電源支架...
