Summary of Contents for Germfree CSE Series

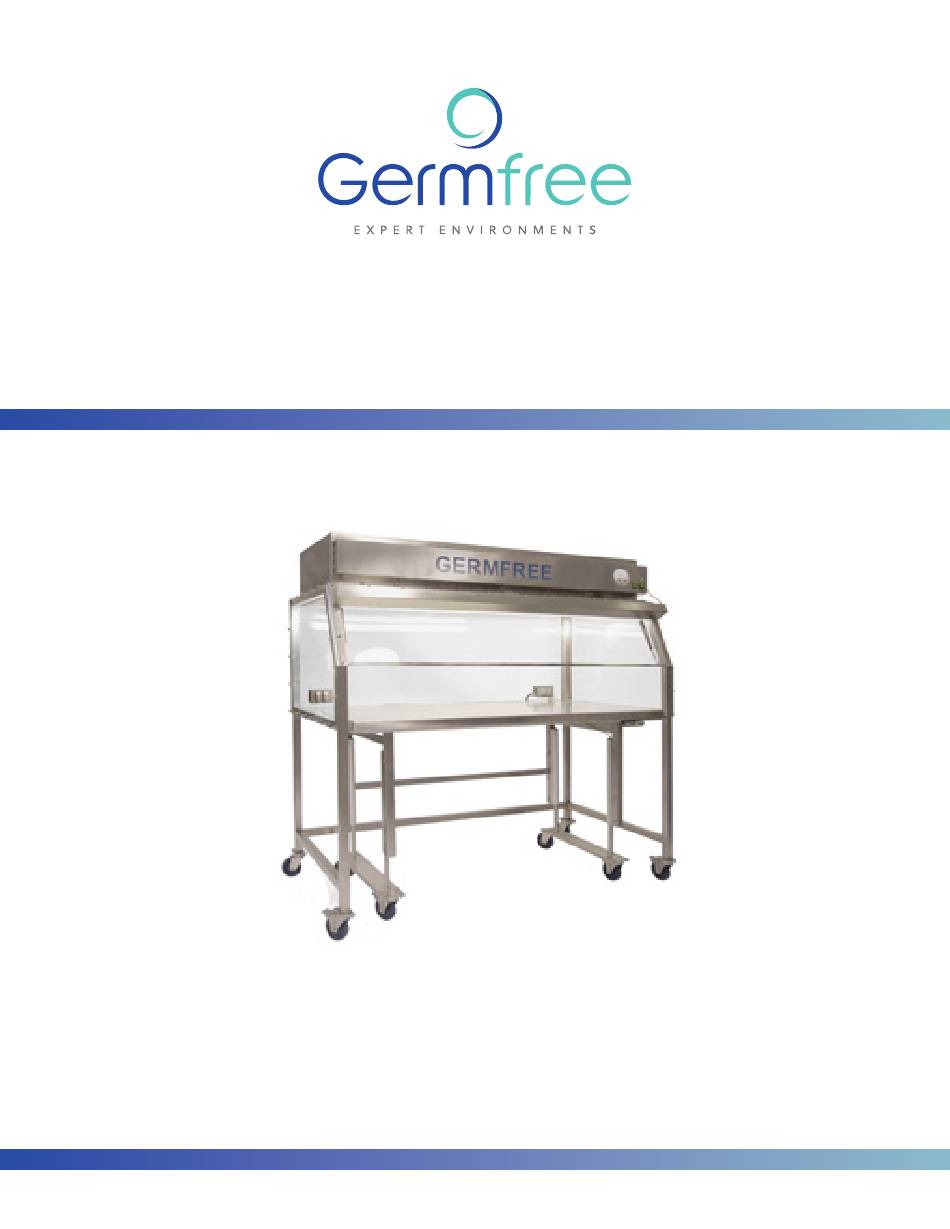

- Page 1 Compounding Safety Enclosure (CSE Series) User Manual Germfree - CSE User Manual - v1.1 - 10AUG2023 - RMH...
-
Page 2: Table Of Contents
Germfree’s Mission ........ -
Page 3: Introduction
¼” Acrylic. The stainless steel surfaces inside the hood are impervious to most chemicals and are easily cleaned. With minimal maintenance, your Compounding Safety Enclosure will add to the beauty and utility of your Pharmacy for many years. Contact Germfree Customer Service +1 386.265.4300 cs@germfree.com... -
Page 4: Installation
CSE Series Compounding Safety Enclosure User Manual Installation Unpacking The unit is shipped in a single crate to be fully assembled, ready to be moved to its final location, with an additional crate for the stand (optional) . All equipment must be inspected immediately upon receipt. If there is visible damage to the container or unit, it must be noted on the receiving documents by the driver. -
Page 5: Operation
CSE Series Compounding Safety Enclosure User Manual Operation Getting Started You will need one standard 15-ampere outlet to operate this system. After the unit has been installed and connected to the electrical power supply, it can be turned on. The two lighted switches on the control panel indicate the operation of the fan and fluorescent lights. -
Page 6: Maintenance
UV radiation will adversely affect the acrylic surfaces and should not be used as a germicide in the CSE series. Additionally, the unit should be placed in a location that is not exposed to direct sun light. -
Page 7: Tests And Results
CSE Series Compounding Safety Enclosure User Manual Tests and Results Airflow Velocity The inward air velocity is measured across the plain of the sash opening. The velocities are set to be approximately 50-70 fpm average. This velocity range is chosen to minimize the turbulence in the air. Velocities outside of this range are not desirable. -
Page 8: Equipment Drawings
CSE Series Compounding Safety Enclosure User Manual Equipment Drawings CSES-4SS... -
Page 9: Cses-6Ss
CSE Series Compounding Safety Enclosure User Manual CSES-6SS... -
Page 10: Electrical Schematic
CSE Series Compounding Safety Enclosure User Manual Electrical Schematic... -
Page 11: Parts List
CSE Series Compounding Safety Enclosure User Manual Parts List ITEM DESCRIPTION PART NO. HEPA Filter 99.99 % eff. HEPA Corp. 22”x42”x3” 4 foot units “ “ “ 22”x66”x3” 6 foot units Pre Filter Pleated Varies 20”x22”x1” 4 foot units “... -
Page 12: Quality Statement
User Manual Quality Statement Our Company Accountability Germfree has been a leading innovator in aseptic control and isolation systems since 1962. We will deliver our products on time, as promised, and free from defects. We design and manufacture a diverse range...
