Remove the LCD cover

Required work steps:
■
Remove the service door
■
Remove the battery
■
Remove the lower assy

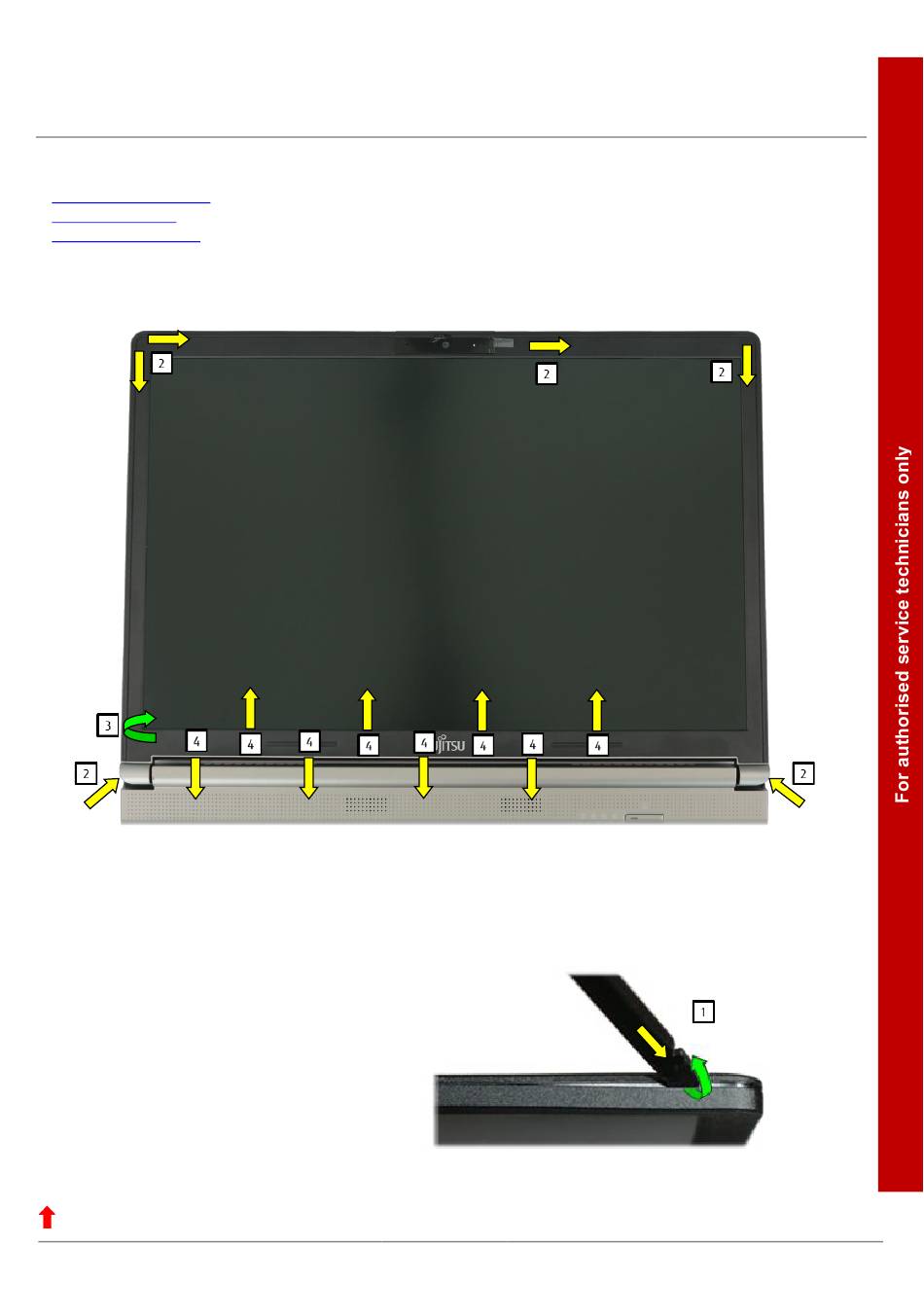

► Open the LCD assy (1).
► Disconnect the covers in the direction of the arrow (2).
► Lift the cover (3).
► Move the cover alternately in the direction of the arrow (4) to release it from the locks.
Return to Table of Contents
Page 37 of 48
Required tools:
■
Plastic tool
