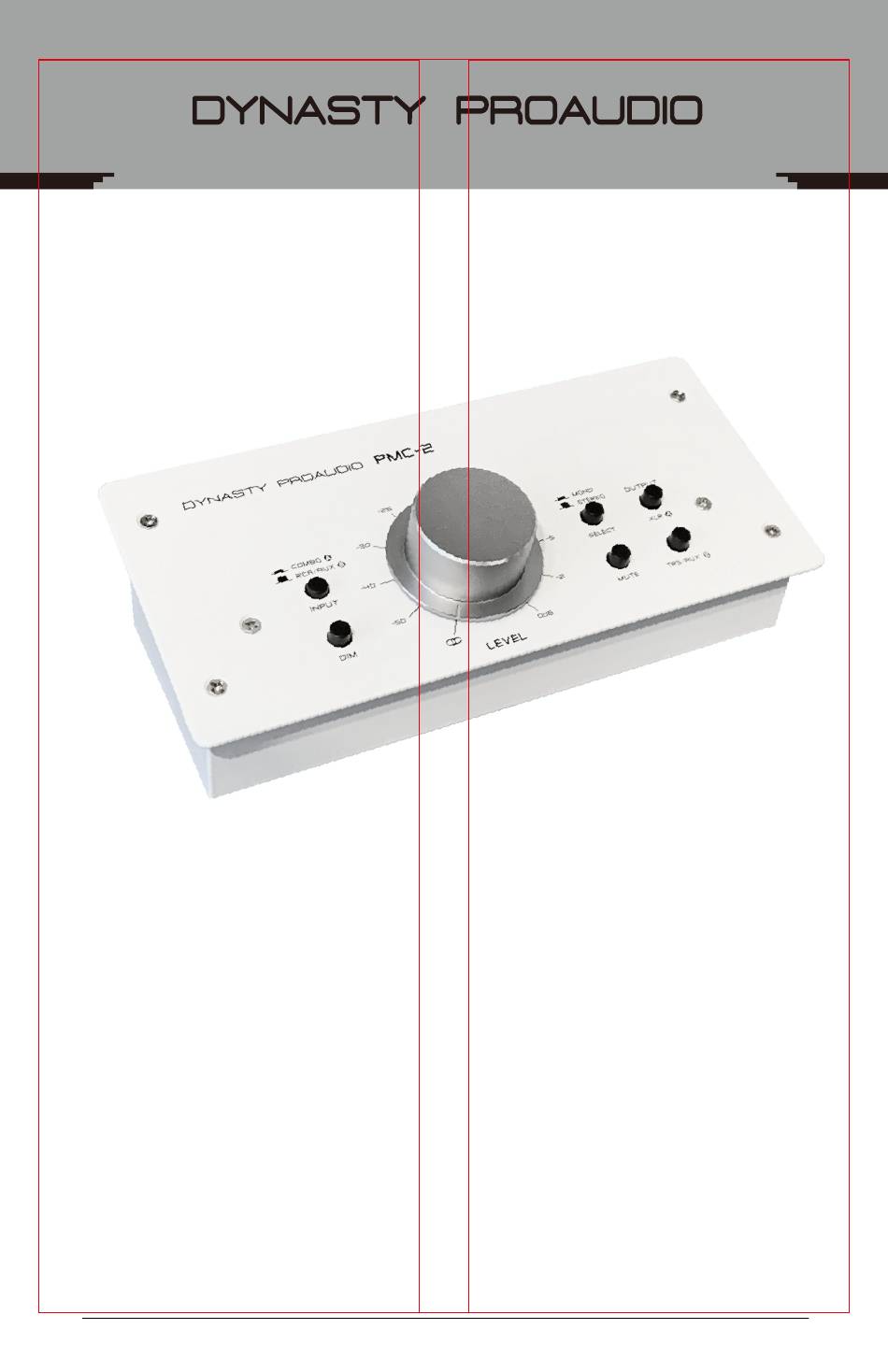

PMC-2
The Dynasty ProAudio PMC-2 is a 2 x 2 premium passive stereo monitor and
volume controller for professional computer-based studio applications and home
use. It is designed for a precise volume control of analog audio signals and is
inserted between analog signal sources and active speakers or amplifiers, also
can be connected between a PC sound card or audio interface and monitor
speakers, simply delivers an attenuated signal for pure transparent, without
compromising your audio which is one of the man benefits of passive volume
attenuation. It is ideal for quick and easy level control by using your fingngertips
with a large rotary control knob. The PMC-2 is completely passive and does not
require power supply, you can keep your software masters at unity and attenuate
the audio to your active monitor speakers precisely with the PMC-2 while main-
taining maximum audio resolution. The unit features balanced combo XLR /
Phone Jack, RCA Audio Line and Mini Jack TRS 3.5mm inputs, DIM & Mute/Mo-
no switches, XLR Balanced/Phone Jack/Mini Jack output, and a large rotary
volume control.
Passive Studio Monitor Volume
Controller Owners Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PMC-2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dynasty ProAudio PMC-2

  • Page 1 Passive Studio Monitor Volume Controller Owners Manual The Dynasty ProAudio PMC-2 is a 2 x 2 premium passive stereo monitor and volume controller for professional computer-based studio applications and home use. It is designed for a precise volume control of analog audio signals and is...
  • Page 2 2. Mute Operation The on/off Mute Switch on the top panel allows engagement of the PMC-2 built in mute function, the PMC-2 audio signal output will be disabled when the Mute Switch is engaged to provides the same result as turning the volume knob all the way down.
  • Page 3 XLR (A): Use the XLR balanced cable to connect the inputs of powered studio monitors, or to a power amplifier driving passive speakers. TRS (B): Use the Phone Jack 1/4" or the Mini Jack TRS cable to connect PMC-2 to your studio monitors, or to a power amplifier driving passive speakers.
  • Page 4 It is also a good practice to test signal ow at a low volume before turning things up. There is no power switch on the PMC-2, as soon as you plug in the power supply it will turn on.
