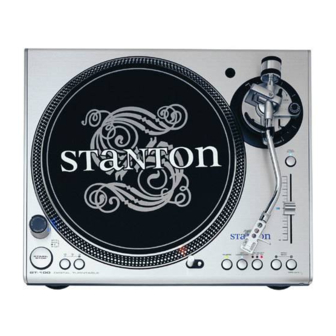

Stanton ST-100 User Manual

ASSEMBLY

Please check to make sure the following items are included with the main unit in
the carton:
(1) Operating instructions
(2) Platter
(3) Slip mat
(4) Counterweignt
(5) 45 rpm adaptor
(6) AC cord
(7) Connecting cord

FEATURES

1.High torque brush less DC motor
This set uses a high torque brushless DC motor to reach the normal speed of
Rotation rapidly and reduce braking time.
2. +/-8%,+/-16%,+/-25% pitch control
The pitch can be changed in a range of +/-8%,+/-16%,+/-25% using the pitch slider.
A pitch On/off button lets you return to the normal speed of rotation at the
touch of a button.
3. Pitch correction
When pitch correction is on, musical key tone can be kept constant even when
the platter speed is changed with the slider.
4. 78 rpm compatible
This set can play 33, 45 and 78 rpm records.
5. Digital out
The music output is in digital format and can be reproduced on an external digital
processor or an MD recorder.
1
Remover all the parts from the box.
2
Remover the packaging materials from the unit and all the parts.
Set the parts on a stable surface when removing the packaging materials.
Handling the parts roughly could result in scratches or deformation.
3
Check the voltage selector switch is set to an appropriate position.
ex.
U.S.A & CANADA :
EUROPE :
4
Insert the platter onto the motor shaft.
5
Set the slip mat on the platter, lining it up with the motor shaft.
Mounting the counterweight
Mount the counterweight on the shaft at the back of the tone arm.
115V
230V
1
