Sensata Newall Spherosyn & Microsyn 300 Quick Install Manual

More information at sales@machine-dro.co.uk • www.machine-dro.co.uk
Part No: 023-UK
Spherosyn & Microsyn 300 Quick Install
Preparation
Prior to beginning the installation the machine should be studied to determine the Encoder(s) position and to
ensure the brackets are suitable, or if custom brackets are required.
close to the machine lead screw or axial drive shaft as possible.
Warnings
If for any reason the machine axis travel is greater than the actual scale travel, 'mechanical stops' should be
damage caused by machine over-travel.
It is important the Scale be kept at least 13mm (0.5") away from any magnetic sources such as magnetic bases
or chucks.

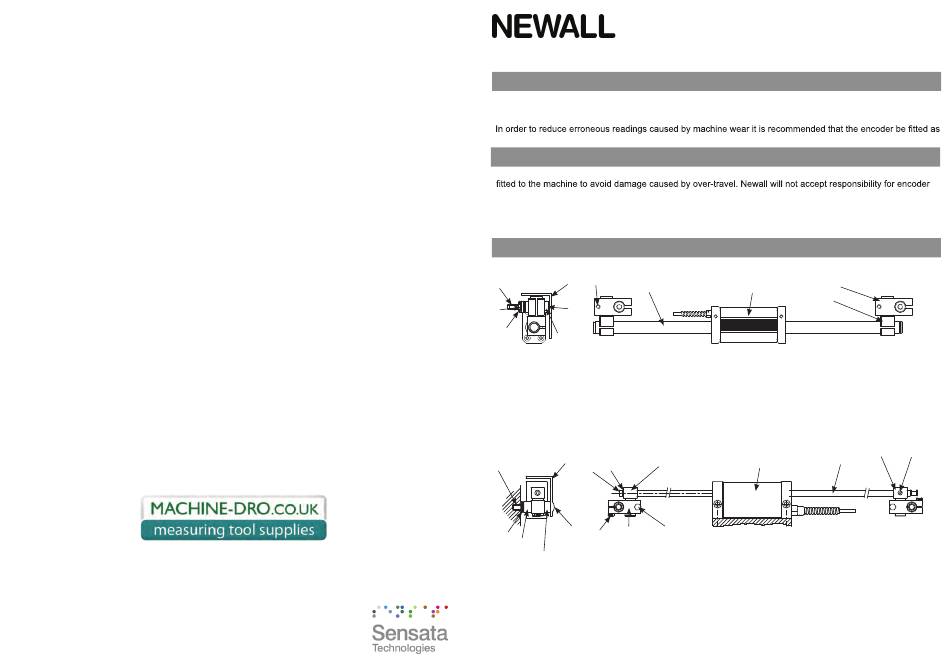

Assembly Diagrams
SIZE DRAWING 31687934 REV.
A3 NUMBER ISS.
Figure 1 - Spherosyn300 Encoder Assembly
8
7
M8
9
5
10
6
1. Spherosyn300 reader head (1)
2. Spherosyn300 scale (1)
3. Scale support link (2)
4. Scale anchor pin (2)
5. Support pillar short (2)
Serial Number
& Accuracy
Mark End
Figure 2 - Microsyn300 Encoder Assembly
15
M6 5
4
11
8
9
14
13
1. Microsyn300 reader head (1)
12
REV.ISS. DATE C.N.No ALTERATION
2. Microsyn300 scale (1)
3. End support mounting (1)
4. M3 x 16 SHCS (1)
5. M3 spring washer (1)
6. Support mounting (1)
7. M4 x 5 nylon set screw (1)
8. Support link (2)
DO NOT SCALE
2
1
6. Support pillar long (2)
7. Scale cover (1)
8. M5 x 20 hex head (6)
9. M8 socket button head (2)
10. Spacer washer (2)
1
3
10
MATERIAL/FINISH
TITLE
9. M3 x 12 hex screw (4)
DRAWN
chris.wh
DATE 09/02/2017 THE INFORMATION THERON MAY NOT BE COPIED OR USED
Leicester 10. England M3 x 12 SHCS (4)
11. M6 x 10 socket button head (2)
12. Support pin short (2)
13. Support pin long (2)
14. Spacer washer (2)
15. Scale cover (1)
Guide
THIRD ANGLE PROJECTION IF IN DOUBT ASK
3
4
6 7
2
SCALE
UNLESS OTHERWISE TOLERANCES: - 0 DECIMAL PLACES  0.5
STATED: - 1 DECIMAL PLACES  0.2
2 DECIMAL PLACES  0.1
ANGULAR  1 
DIMENSIONS ARE IN M.M
31687934
THIS DRAWING IS THE PROPERTY OF SHEET DRAWING REV.
NEWALL MEASUREMENT SYSTEMS LTD.
1 OF 1
NUMBER ISS.
WITHOUT WRITTEN PERMISSION
