Easy Setup Guide
Please read this manual carefully before operating your set and retain it for future reference.
ESPAÑOL
Guía Rápida de Configuración
Lea atentamente este manual antes de poner en marcha el equipo y consérvelo para futuras consultas.
FRANÇAIS
Guide de configuration rapide
Avant d'utiliser l'appareil, veuillez lire attentivement ce manuel et le conserver pour pouvoir vous y reporter
ultérieurement.
12
14
www.lg.com
16
20
12
14
16

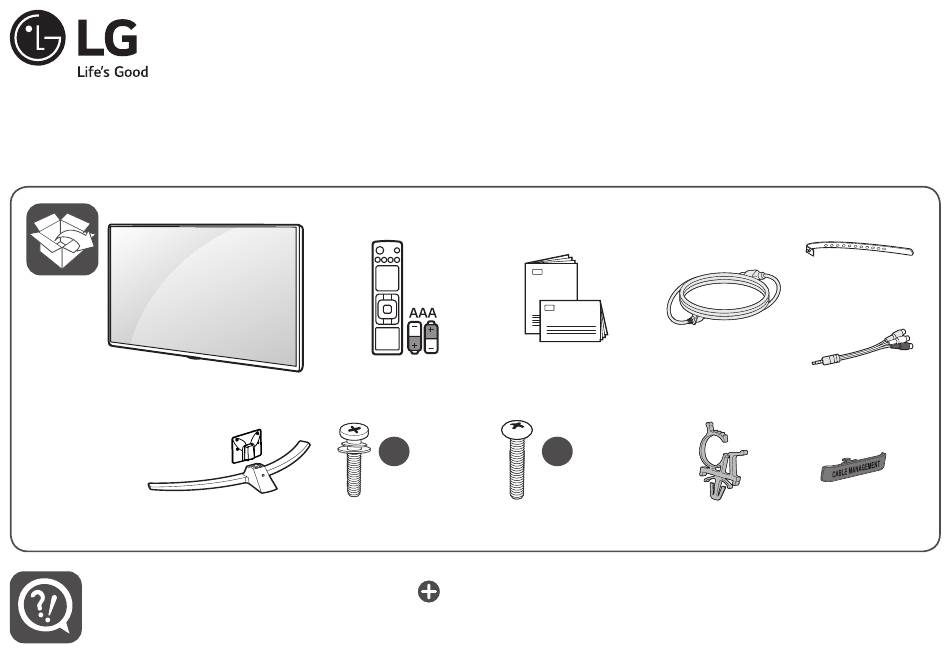

a
X 4
(M4 X L20)
Depending upon model / Según el modelo / Selon le modèle
20
b
X 4
(M5 X L30)
Printed in Korea / Imprimé en Corée
LED TV
65UN560H0UD
65UN570H0UD
X 2
