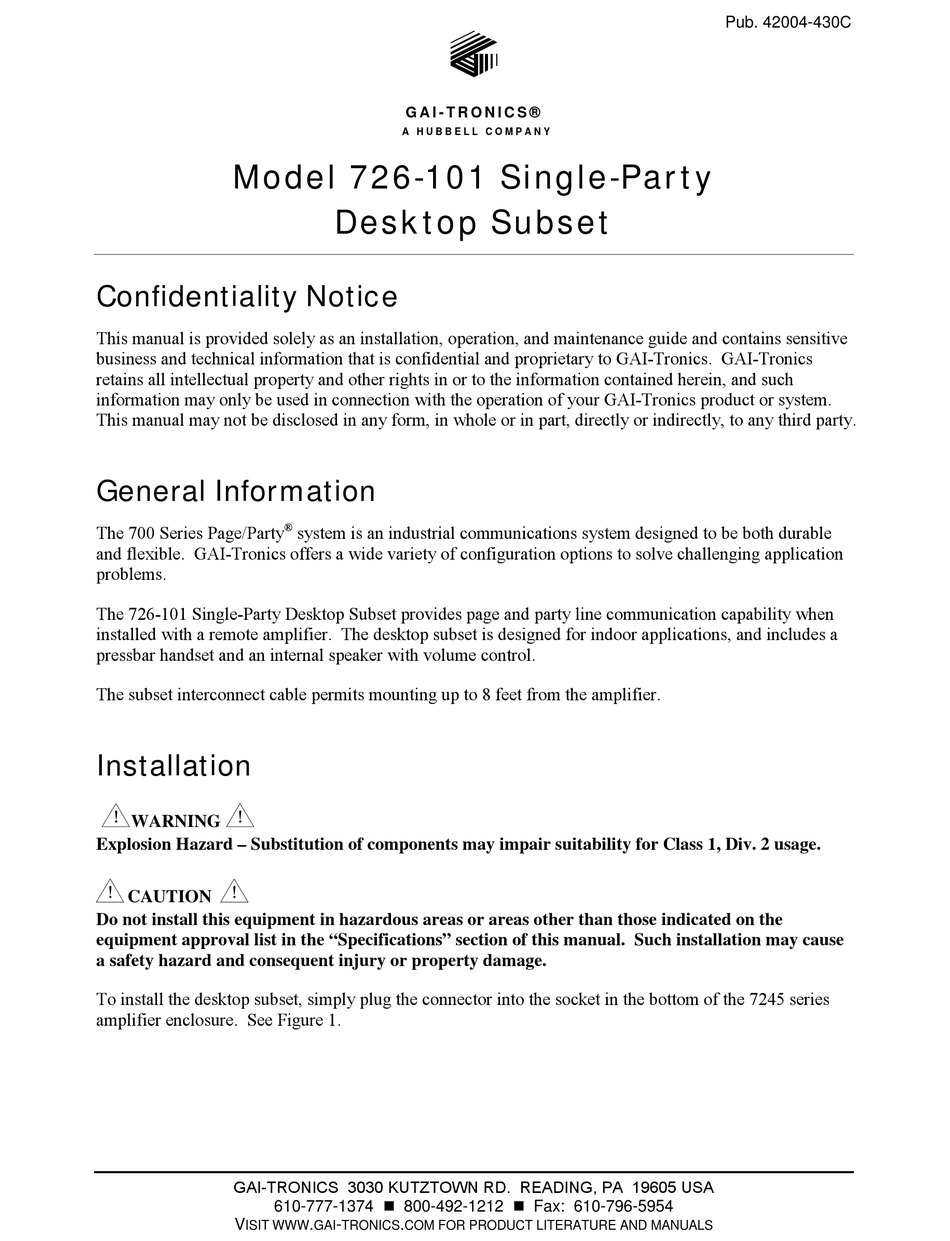

Model 726-101 Single-Party
Confidentiality Notice
This manual is provided solely as an installation, operation, and maintenance guide and contains sensitive
business and technical information that is confidential and proprietary to GAI-Tronics. GAI-Tronics
retains all intellectual property and other rights in or to the information contained herein, and such
information may only be used in connection with the operation of your GAI-Tronics product or system.
This manual may not be disclosed in any form, in whole or in part, directly or indirectly, to any third party.
General Information
The 700 Series Page/Party
and flexible. GAI-Tronics offers a wide variety of configuration options to solve challenging application
problems.
The 726-101 Single-Party Desktop Subset provides page and party line communication capability when
installed with a remote amplifier. The desktop subset is designed for indoor applications, and includes a
pressbar handset and an internal speaker with volume control.
The subset interconnect cable permits mounting up to 8 feet from the amplifier.
Installation
WARNING
Explosion Hazard – Substitution of components may impair suitability for Class 1, Div. 2 usage.
CAUTION
Do not install this equipment in hazardous areas or areas other than those indicated on the
equipment approval list in the "Specifications" section of this manual. Such installation may cause
a safety hazard and consequent injury or property damage.
To install the desktop subset, simply plug the connector into the socket in the bottom of the 7245 series
amplifier enclosure. See Figure 1.
GAI-TRONICS 3030 KUTZTOWN RD. READING, PA 19605 USA
610-777-1374 800-492-1212 Fax: 610-796-5954
V
ISIT WWW
G A I - T R O N I C S ®
A H U B B E L L C O M P A N Y
Desktop Subset
®
system is an industrial communications system designed to be both durable
.
-
.
GAI
TRONICS
COM FOR PRODUCT LITERATURE AND MANUALS
Pub. 42004-430C
Advertisement
Table of Contents
Related Manuals for Hubbell GAI- TRONICS 726-101
Summary of Contents for Hubbell GAI- TRONICS 726-101
- Page 1 Pub. 42004-430C G A I - T R O N I C S ® A H U B B E L L C O M P A N Y Model 726-101 Single-Party Desktop Subset Confidentiality Notice This manual is provided solely as an installation, operation, and maintenance guide and contains sensitive business and technical information that is confidential and proprietary to GAI-Tronics.
- Page 2 Pub. 42004-430C Model 726-101 Single-Party Desktop Subset Page 2 of 4 Figure 1. Installing the Model 726-101 Desktop Subset Operation For single party systems, complete the following steps to make a page announcement: 1. Lift the handset from the cradle. 2.
- Page 3 Pub. 42004-430C Model 726-101 Single-Party Desktop Subset Page 3 of 4 Maintenance The following adjustments are accessible through the rear chassis of the associated remote amplifier using a small standard screwdriver: Microphone Gain: adjusts the gain level from the microphone signal to the page or party lines ...
- Page 4 Pub. 42004-430C Model 726-101 Single-Party Desktop Subset Page 4 of 4 Specifications ® Material/finish ....................Housing - light gray Cycolac Front panel and base - 16-gauge cold rolled steel with black polyurethane enamel finish Connections............All connections to the subset are made through an 8-foot multi-conductor cable terminated by a connector that plugs into the bottom of the amplifier enclosure.
- Page 5 Warranty Equipment. GAI-Tronics warrants for a period of one (1) year from the date of shipment, that any GAI-Tronics equipment supplied hereunder shall be free of defects in material and workmanship, shall comply with the then-current product specifications and product literature, and if applicable, shall be fit for the purpose specified in the agreed-upon quotation or proposal document.
