Meraki MX600 Installation Guide
This document describes how to install and set up the MX600
security appliance. Additional reference documents are available
online at: www.meraki.com/library/products.
MX600 Overview
The Meraki MX600 is an enterprise security appliance designed for
data-center deployment for distributed networks that require remote
administration. It is ideal for network administrators who demand
both ease of deployment and a state-of-the-art feature set. The
MX600 appliance provides the following new features:
Four bypass (fail-to-wire) ports for passthrough mode
USB port, to support approved 3G/4G cards for failover to cellular
networks.
1 TByte cache storage for WAN acceleration.
Support for two interface modules. Each module can have either eight
1Gbit RJ45 or SFP ports or two 10Gbit SFP+ ports.
LAN 2 port can be configured to be a LAN or WAN connection,
allowing support up to 2 WAN connections.
Dedicated management port.
Rail-kit for rack mounting
Package contents

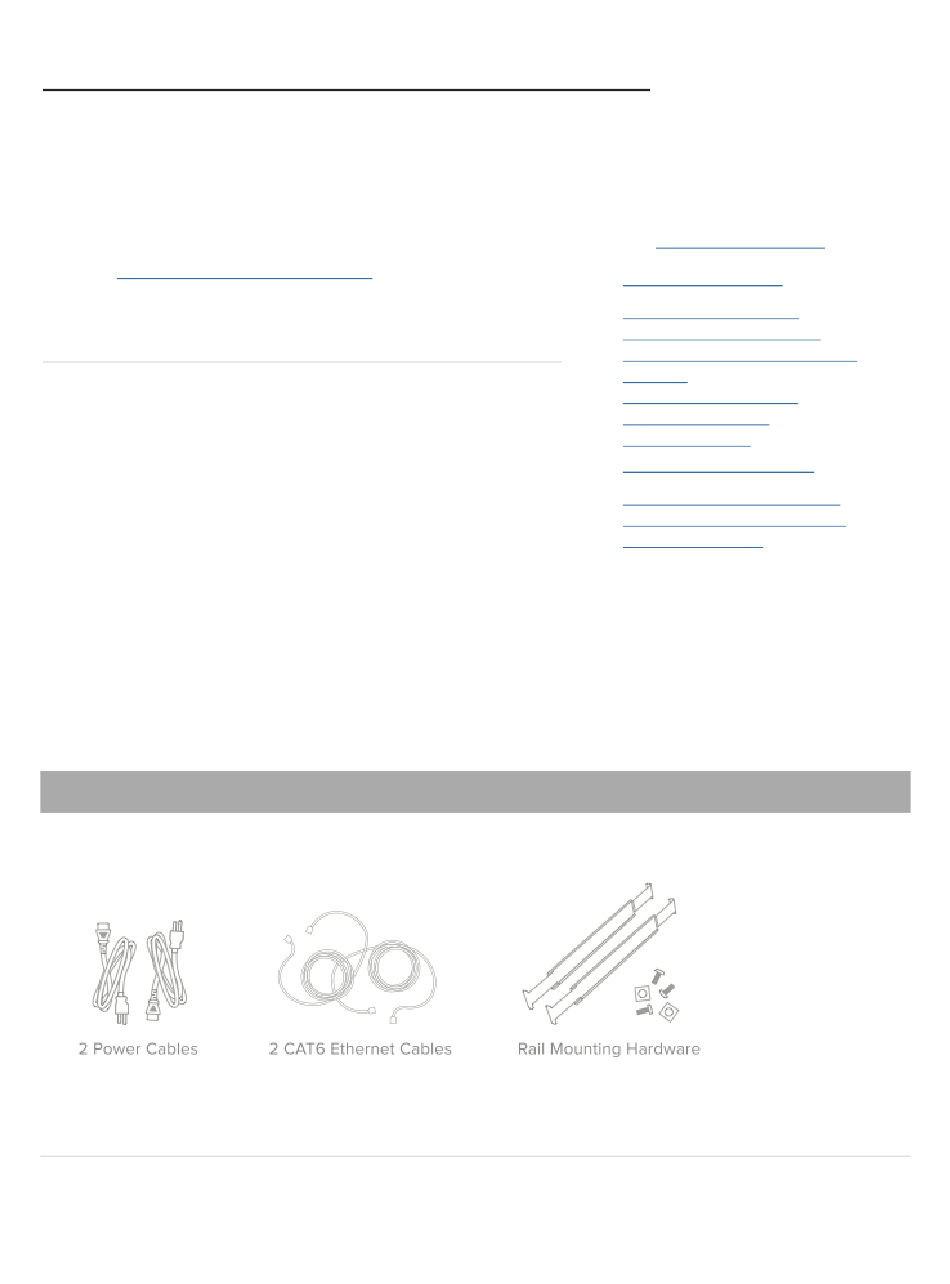

In addition to the MX600, the following are provided.
The MX600 front panel
1.
MX600 Overview
2.
Package contents
The MX600 front panel
o
Ports and Status Indicators
o
Using MX Expansion Slots and
o
Modules
The MX600 back panel
o
Mounting hardware
o
Safety guidelines
o
3.
Connecting to WAN
Setting up a static IP address
o
Setting up a DHCP IP address
o
Additional settings
o

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX600 and is the answer not in the manual?

Questions and answers

Summary of Contents for Meraki MX600

  • Page 1 Meraki MX600 Installation Guide This document describes how to install and set up the MX600 MX600 Overview security appliance. Additional reference documents are available online at: www.meraki.com/library/products. Package contents The MX600 front panel Ports and Status Indicators MX600 Overview Using MX Expansion Slots and...
  • Page 2 Ports and Status Indicators The MX600 uses LEDs to inform the user of the device's status. When the device powers on, all the Internet LEDs flash twice. Additional functions are described below, from left to right. Item Function LED Status...
  • Page 3: Mounting Hardware

    The MX600 back panel Please note that the serial number is located on the product label at the back panel of MX600. Mounting hardware The mounting hardware includes a rack mount rail kit. When installing the device, make sure that there is sufficient space between the rear of the rack and other obstacles to ensure adequate airflow.
  • Page 4: Setting Up A Static Ip Address

    All Meraki MX devices must have an IP address. This section describes how to configure your local area network before you deploy it. A local management web service, running on the appliance, is accessed through a browser running on a client PC. This web service is used for configuring and monitoring basic ISP/WAN connectivity.
  • Page 5: Additional Safety Instructions

    • Choose Connection Type > PPPoE. • Select your Authentication option. • If you select Use authentication, enter appropriate values for Username and Password. Web proxy settings These settings take effect if the MX device has to fall back to using HTTP to contact the Cloud Controller. By default, web proxy is disabled.
  • Page 6 Rack Mounting Installation Guide This Rack mounting Installation guide is for Lanner’s Network security Barebone. No matter the deminsion is 1U or 2U size. It is suitable for FW-7655, FW-7660, FW-7850, FW-7860, FW-7870, FW-7880, FW-7890. Make sure that the bracket and extension slide kits is in the packing (Four L- brackets and two sliding rails).
  • Page 7 Step 3: Install those four L-brackets to the each corner of the rack. Step 4: A. Screw the center slide together with the inner rail. B. Pull out the center slide and attach another screw with the inner rail Step 5: A complete installation of the sliding kits for the rack is as the below graph. Step 6: Pull out the center rail.
  • Page 8 Step 8: The complete installation is as the below graph.
  • Page 9 3C02-610 Installation 2. Screw the longer inner rail on 3. Install the chassis. 1. Install the rails to the rack. the chassis by M4 screw. Removal 1. Under close condition. 2. Pull out the chassis half way to the lock position and press release stop from both sides accordingly to fully pull out the chassis.
