WIRELESS OUTDOOR HUMIDITY AND TEMPERATURE MONITOR
Introduction
Congratulations on your purchase of the wireless outdoor humidity and temperature monitor. You will now be
able to know the outdoor temperature and humidity while sitting inside.
The model number of the remote sensor for this unit is TX7B (USA & Canada Version), TX7C (European
Version).
Additional sensors may be ordered directly from Amazon or ThermoPro by contacting our customer service
listed below.
Components
2. One remote sensor (Transmitter)
* Although the remote sensor is designed to be rain-proof, it still must be always put in a dry place to
avoid direct rainfall.

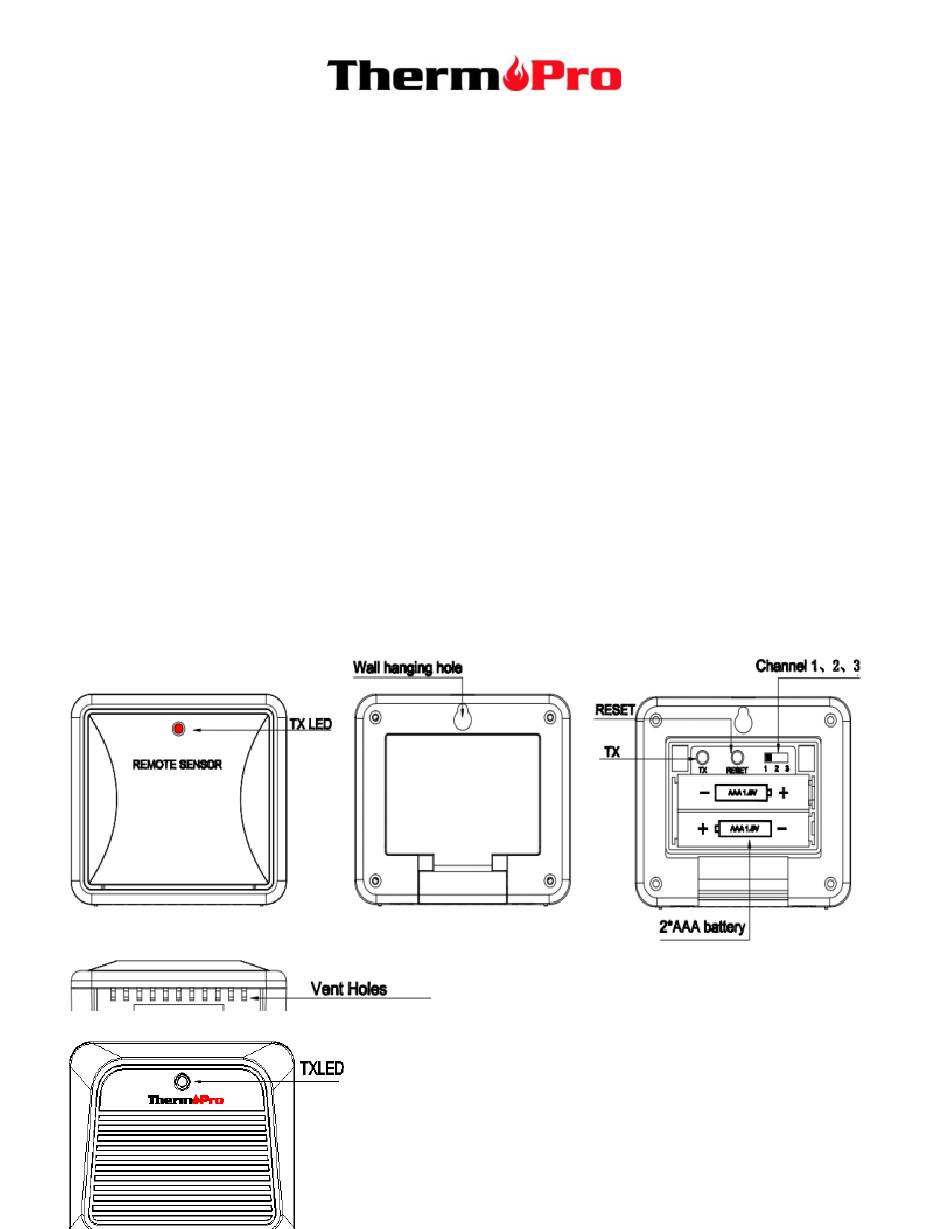

Outdoor Remote Sensor (Transmitter) Features
1、Battery Compartment: Holds 2 X AAA batteries to power the unit
2、 Rain-proof and
wall-mounted
INSTRUCTION MANUAL
Model No. TX7B/TX7C
design
Advertisement
Table of Contents
Summary of Contents for THERM PRO TX7B
- Page 1 Congratulations on your purchase of the wireless outdoor humidity and temperature monitor. You will now be able to know the outdoor temperature and humidity while sitting inside. The model number of the remote sensor for this unit is TX7B (USA & Canada Version), TX7C (European Version).
- Page 2 Outdoor Temperature range: -58°F ~ 158°F (-50 °C ~ 70 °C) Humidity range: 10% ~ 99% Buttons CHANNEL Selector (1,2,3): Slide to set Channel 1,2 or 3. RESET: Press once to reset the remote sensor. TX: Press to send temperature/humidity data to the receiver manually. Battery Installation and Setup 1.
- Page 3 4. The base station and remote sensor can both be wall mounted. Synchronize Remote Sensors with The Base Station ThermoPro TX7B/TX7C Universal Waterproof Transmitter Monitor Temperature and Humidity Outdoor Sensor , Compatible with TP260/TP280/TP360/TP394 Series Indoor Outdoor Thermometer 1. Place the remote sensor near the base station;...
- Page 4 5. Once the batteries are installed in the base station, the RF indicator will flash for 3 minutes, indicating that the base station is in synchronization mode: it is waiting for remote sensors to be registered. 6.Press the °C / °F button on the back of the sensor once and the LED flashes once. Then wait for a while until the remote sensor on the base station indicating synchronization shows that the temperature is complete 7.
- Page 5 frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of more of the following measures: Reorient or relocate the receiving antenna.
