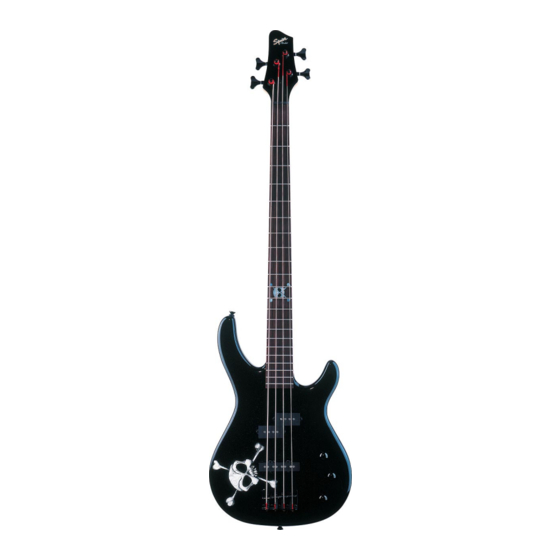

MB-4 Skull & Cross Bones Bass
Loc # Description
1
GB-7 Tuners (set of 4)
2
Strap Buttons (ea)
3
Neck Pickup
4
Bridge Pickup
5
500K Volume Pot
6
500K tone Pot
7
500KAC Balance Pot
5-7a
Volume/Tone Knobs (ea)
8
Output Jack
9
Bridge Assembly
Wiring Diagram
Rosewood- m/n 0328001565
Part Number
006-2376-000
003-6821-000
005-5379-000
005-5380-000
006-2730-000
006-2731-000
002-8380-000
006-2378-000
006-2379-000
006-2377-000
Last Revision Date: 8/28/2008
