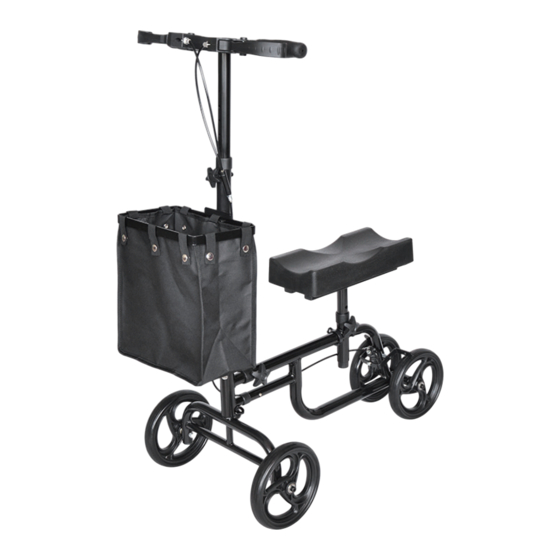

Jaxpety MR11W0214 Assembly Instructions

Hide thumbs
1
2

Advertisement

Quick Links

Download this manual
PULL BACK TO SLOW DOWN
Hand Brake Lock
Brake Cable
Removable Storage Bag
Front Wheel
MAINTENANCE
1.
The exterior of this rollator walker should be cleaned periodically with a soft damp
cloth. Do not use abrasive cleaners or caustic chemicals.
2.
Check the parts for any looseness, wear, or damage periodically. If any problems are
found, correct them before using them.
3.
If haven't used it for a long time, store it in a cool,dry, and safe place.
PUSH FORWARD TO BRAKE
Handle
Lifting Lever
Knee Pad
Star Bolt
Rear Wheel Body
ASSEMBLY INSTRUCTIONS

Advertisement

loading

Summary of Contents for Jaxpety MR11W0214

  • Page 1 ASSEMBLY INSTRUCTIONS PULL BACK TO SLOW DOWN PUSH FORWARD TO BRAKE Hand Brake Lock Handle Brake Cable Lifting Lever Knee Pad Removable Storage Bag Star Bolt Rear Wheel Body Front Wheel MAINTENANCE The exterior of this rollator walker should be cleaned periodically with a soft damp cloth.
  • Page 2 PART LIST STEP LIFTING LEVER INSTALLATION Insert the lifting lever into the mainframe Adjusting the suitable height , then make sure the holes are aligned sert the star bolt into the hole and tighten it Attach the Card buckle to the lifting rod Rear wheel Mainframe Knee pad...
